Model |

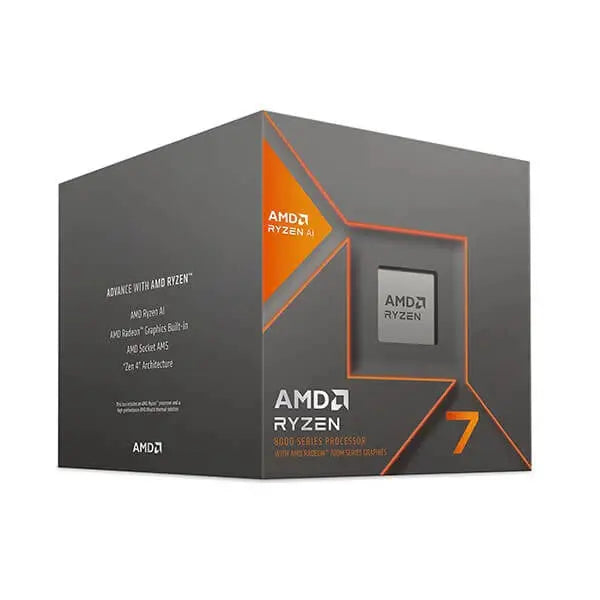

AMD Ryzen™ 7 8700G |
Platform |
Desktop |
Product Family |
AMD Ryzen™ Processors |
Product Line |
AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics |
AMD PRO Technologies |
No |
Consumer Use |
Yes |
Regional Availability |
Global |
Former Codename |
“Phoenix” |
Architecture |
“Zen 4” |
# of CPU Cores |
8 |
Multithreading (SMT) |
Yes |
# of Threads |
16 |
Max. Boost Clock |
Up to 5.1GHz |
Base Clock |
4.2GHz |
L2 Cache |
8MB |
L3 Cache |
16MB |
Default TDP |
65W |
AMD Configurable TDP (cTDP) |
45-65W |
Processor Technology for CPU Cores |
TSMC 4nm FinFET |
CPU Compute Die (CCD) Size |
178mm² |
Package Die Count |
1 |
Unlocked for Overclocking |
Yes |
AMD EXPO™ Memory Overclocking Technology |
Yes |
Precision Boost Overdrive |
Yes |
Curve Optimizer Voltage Offsets |
Yes |
AMD Ryzen™ Master Support |
Yes |
CPU Socket |
AM5 |
CPU Boost Technology |
Precision Boost 2 |
Instruction Set |
x86-64 |
Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Max. Operating Temperature (Tjmax) |
95°C |
*OS Support |
Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer. |
Connectivity |
Native USB 4 (40Gbps) Ports |
2 |
Native USB 3.2 Gen 2 (10Gbps) Ports |
2 |
Native USB 2.0 (480Mbps) Ports |
1 |
PCI Express® Version |
PCIe® 4.0 |
Native PCIe® Lanes (Total/Usable) |
20 / 16 |
NVMe Support |
Boot, RAID0, RAID1 |
System Memory Type |
DDR5 |
Memory Channels |
2 |
Max. Memory |
256GB |
System Memory Subtype |
UDIMM |
Max Memory Speed |
- 2x1R DDR5-5200
- 2x2R DDR5-5200
- 4X1R DDR5-3600
- 4x2R DDR5-3600
|
Graphics Capabilities |
Integrated Graphics |
Yes |
Graphics Model |
AMD Radeon™ 780M |
Graphics Core Count |
12 |
Graphics Frequency |
2900 MHz |
DirectX® Version |
2.1 |
DisplayPort Extensions |
- HDR Metadata
- Adaptive-Sync
- UHBR10
|
DisplayPort Max Refresh Rates (SDR) |
- 7680×4320 @ 60Hz
- 3840×2160 @ 240Hz
- 3440×1440 @ 360Hz
- 2560×1440 @ 480Hz
- 1920×1080 @ 600Hz
|
DisplayPort Max Refresh Rates (HDR) |
- 7680×4320 @ 60Hz
- 3840×2160 @ 240Hz
- 3440×1440 @ 360Hz
- 2560×1440 @ 480Hz
- 1920×1080 @ 600Hz
|
HDMI® Version |
2.1 |
HDCP Version Supported |
2.3 |
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
Multi-Monitor Support |
Yes |
Max Displays |
4 |
AMD FreeSync™ |
Yes |
Wireless Display |
Miracast |
Max Video Encode Bandwidth (SDR) |
1080p630 8bpc H.264
1440p373 8bpc H.264
2160p175 8bpc H.264
1080p630 8bpc H.265
1440p373 8bpc H.265
2160p175 8bpc H.265
4320p43 8bpc H.265
1080p864 8/10bpc AV1
1440p513 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1 |
Max Video Decode Bandwidth |
1080p60 8bpc MPEG2
1080p60 8bpc VC1
1080p786 8/10bpc VP9
2160p196 8/10bpc VP9
4320p49 8/10bpc VP9
1080p1200 8bpc H.264
2160p300 8bpc H.264
4320p75 8bpc H.264
1080p786 8/10bpc H.265
2160p196 8/10bpc H.265
4320p49 8/10bpc H.265
1080p960 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1 |
AMD SmartAccess Memory |
Yes |
AI Engine Capabilities |
Brand Name |
AMD Ryzen™ AI |
AMD Ryzen™ AI |
Available |
Performance |
Up to 16 TOPS |
Warranty |
3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice. |
