Description

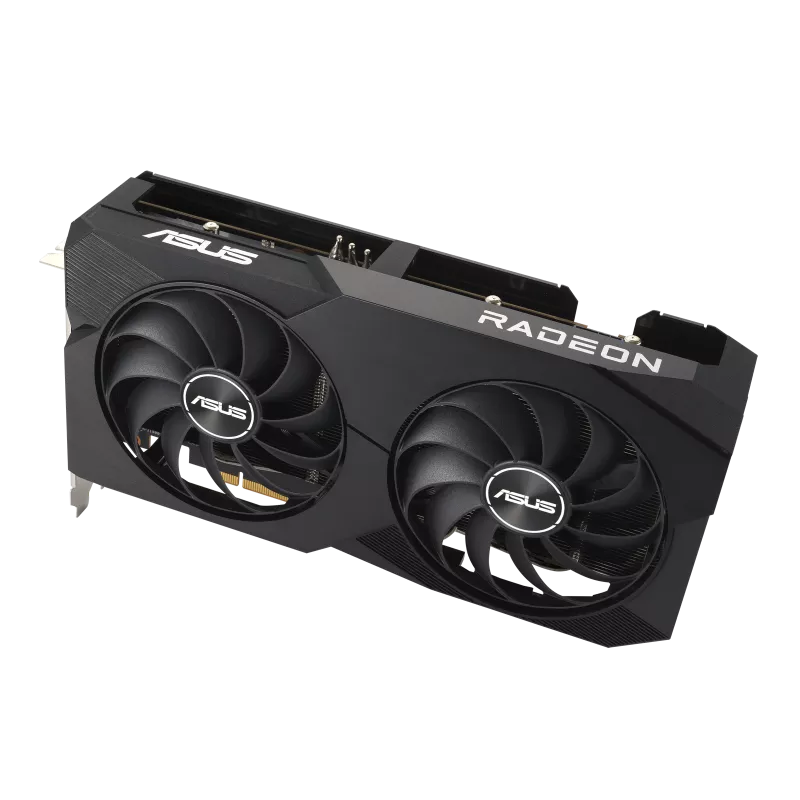

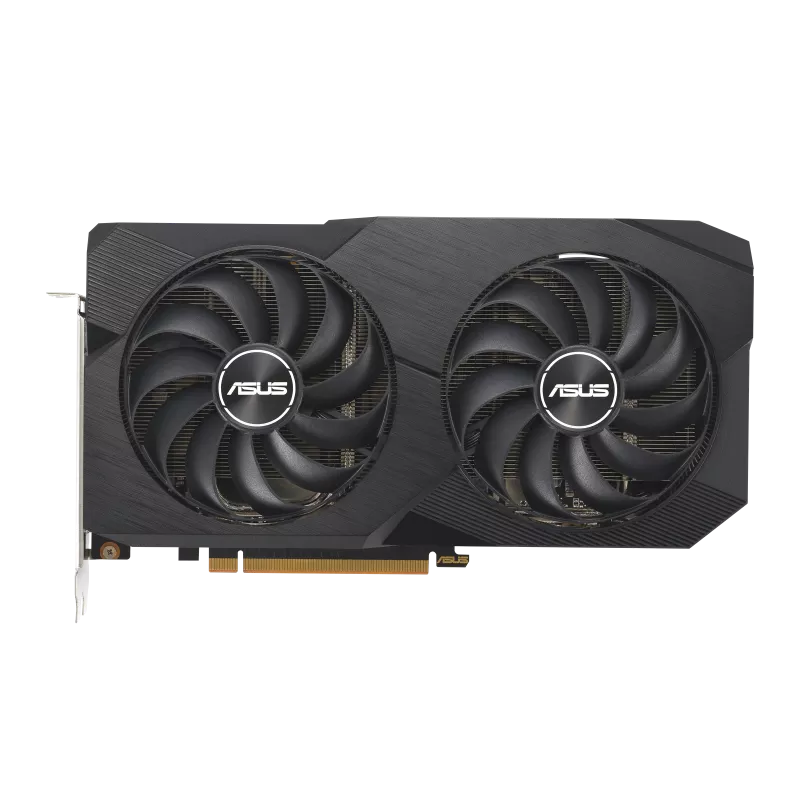

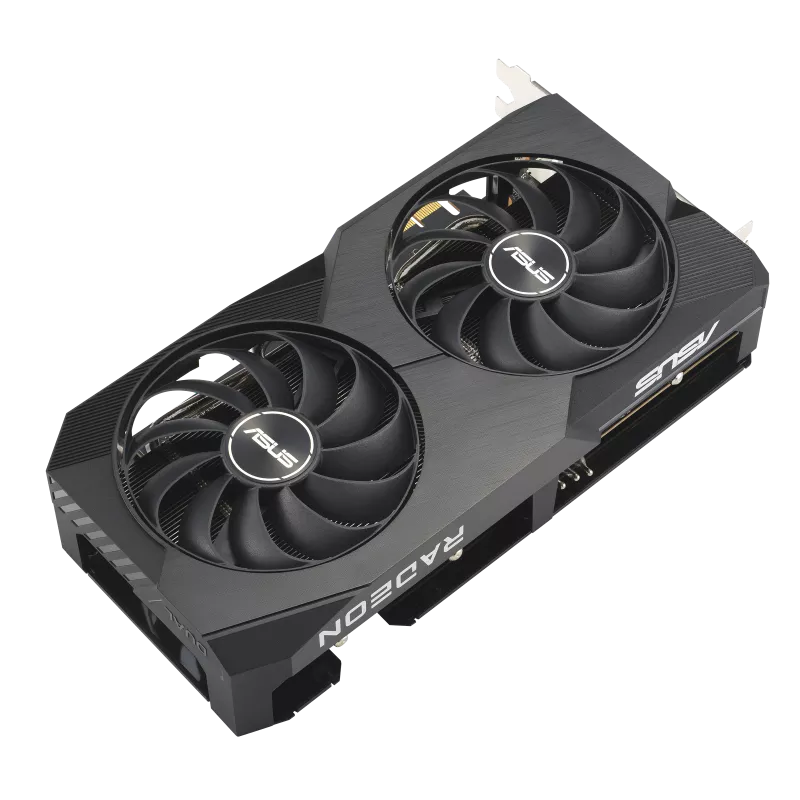

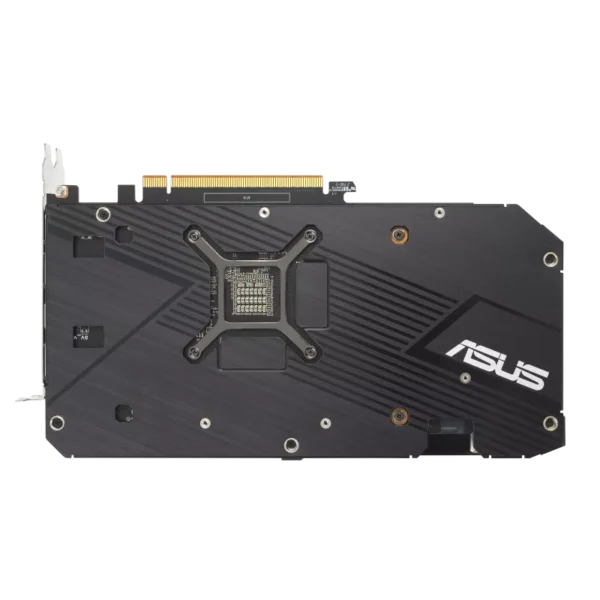

ASUS Dual Radeon RX 6600 V2 8GB GDDR6, OC mode, Axial-tech fan design, Dual ball fan bearings, Auto-Extreme Technology.

Model

DUAL-RX6600-8G-V2

Graphic Engine

AMD Radeon™ RX 6600

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC mode : up to 2491 MHz (Boost Clock)/up to 2064 MHz (Game Clock)

Default mode : up to 2491 MHz (Boost Clock)/up to 2044 MHz (Game Clock)

Stream Processors

1792

Memory Speed

14 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

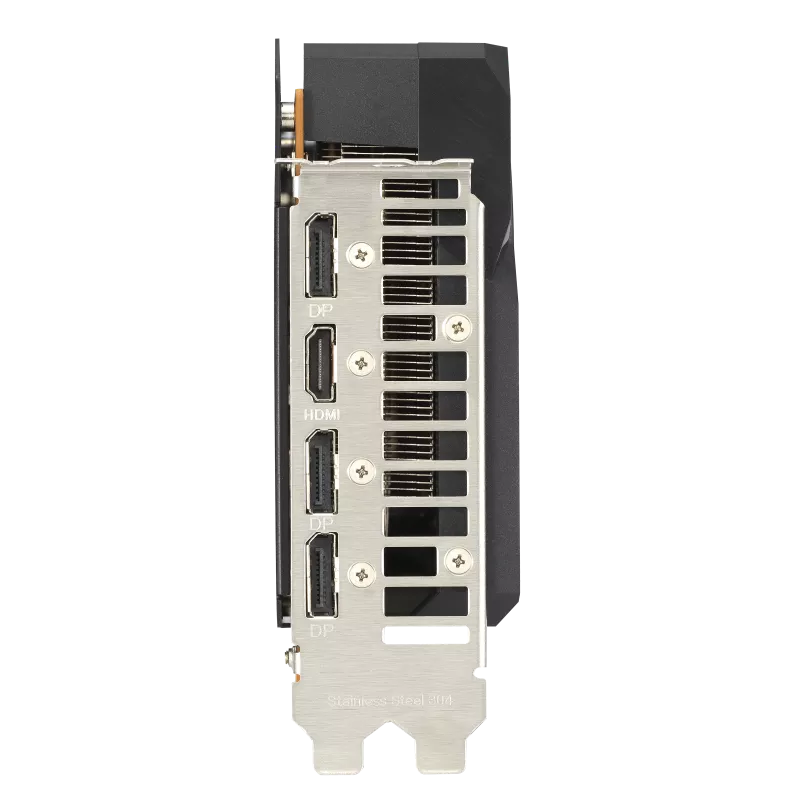

Interface

Yes x 1 (Native HDMI 2.1)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

Yes

Accessories

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

243 x 134 x 49 mm

9.6 x 5.3 x 1.9 inches

Recommended PSU

500W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Crossfire Support for DirecX® 12 and Vulkan®

* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
