Supports up to Intel® 65W CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMITM port**

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMITM 2.1.

• 1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

• 1 x PCIe 3.0 x1 slot

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

4 x SATA 6Gb/s ports

• 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

• 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

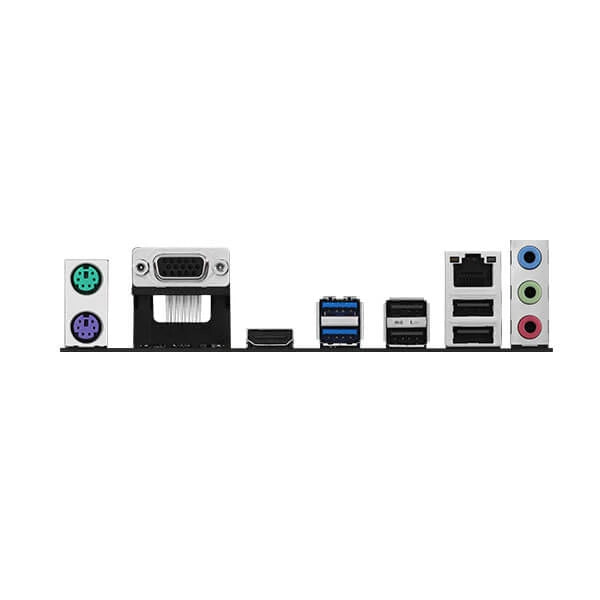

• 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header

Power related

• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x LPT header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

– Q-LED Core

ASUS Thermal Solution

– Aluminum heatsink design

USBGuard

Armoury Crate

AI Suite 3

EPU

DIGI+ VRM

PC Cleaner

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Documentation

1 x User guide

8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
