| Model |

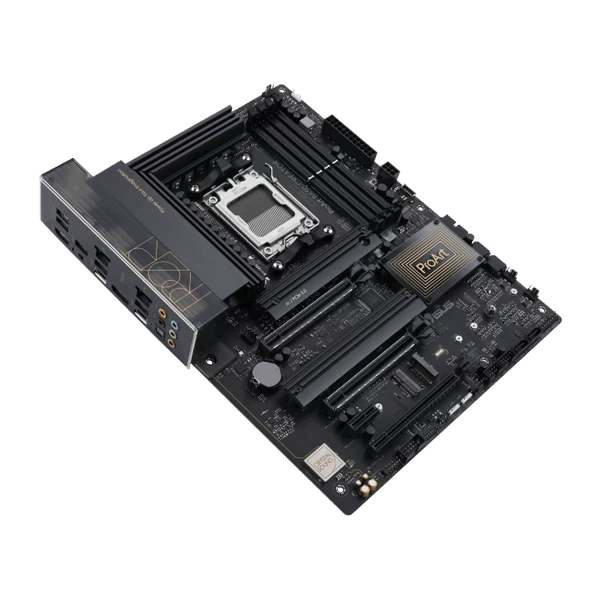

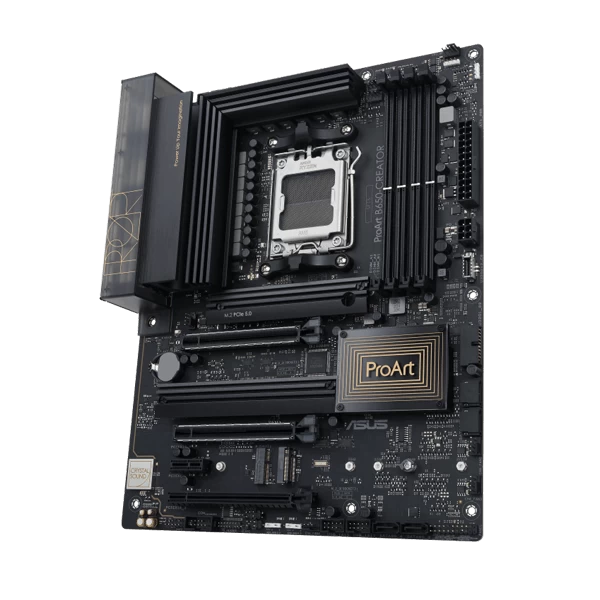

ProArt B650-CREATOR |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset |
AMD B650 |
| Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II |
| Graphics |
1 x HDMI® port
1 x USB Type-C® port supports DisplayPort output |
| Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table in support site
** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. |
| Ethernet |
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
M.2 slot only (Key E, PCIe) |
| USB |
Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Power pre-regulator reduces power input noise to ensure consistent performance
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit |

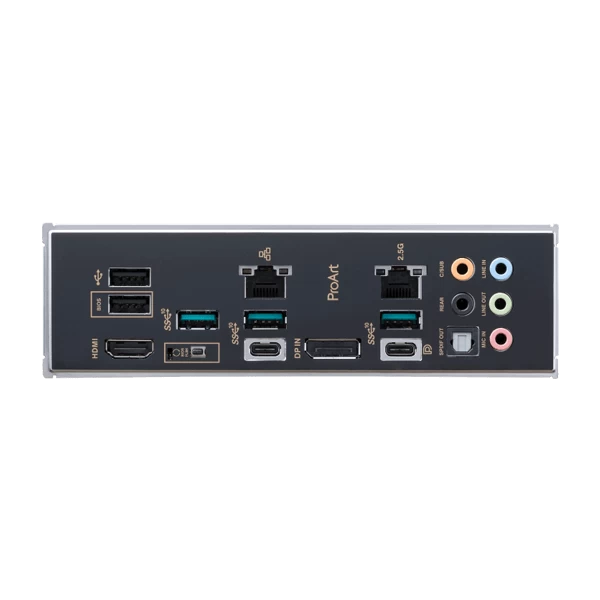

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header |
| Special Features |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. |
| Software Features |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
IT Management software supported
– ASUS Control Center Express(ACCE)
CreationFirst
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables
1 x DisplayPort cable
2 x SATA 6Gb/s cables
Miscellaneous
1 x Q-connector
1 x Rubber Packages for M.2
1 x Screw packages for M.2 SSD
1 x Screw package for M.2 Key E
1 x ProArt ruler
Documentation
1 x ACC Express Activation Key Card
1 x User guide |
| Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
