Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO)

OptiMem II

Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.

Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

1 x HDMI portGraphics specifications may vary between CPU types.Supports max. 8K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

1 x PCIe 5.0 x16 slot

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slots

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.

TUF LANGuard

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2WiFi 6E 6GHz regulatory may vary between countries.

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

5 x USB 3.2 Gen 1 ports (5 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

– Impedance sense for front and rear headphone outputs

– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

– Supports up to 32-Bit/192 kHz playback

Audio Features

– Audio shielding

– Premium audio capacitors

– Dedicated audio PCB layers

– Audio cover

– Unique de-pop circuit

Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)

5 x USB 3.2 Gen 1 ports (5 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

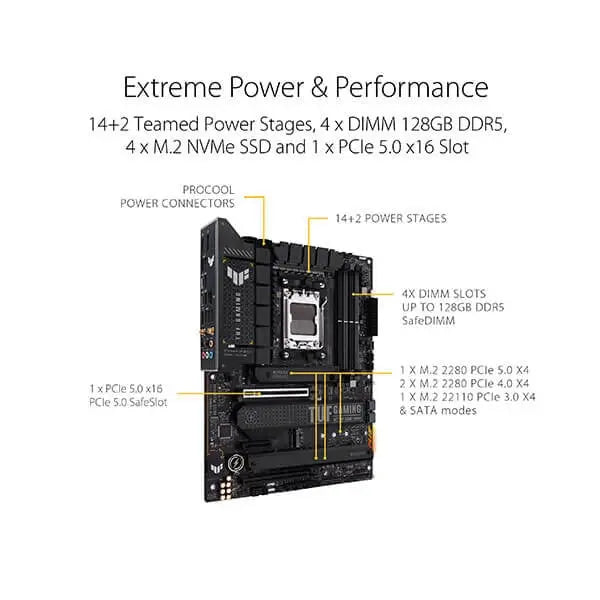

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

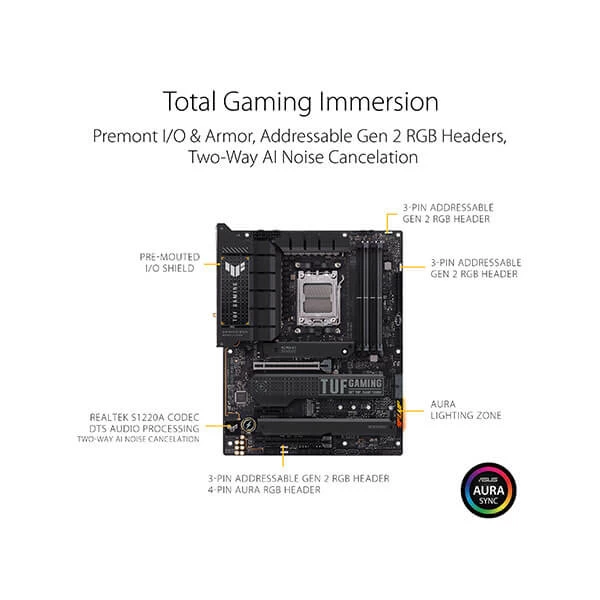

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

– DIGI+ VRM (- Digital power design with DrMOS)

– ESD Guards

– LANGuard

– Overvoltage Protection

– Safeslot

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

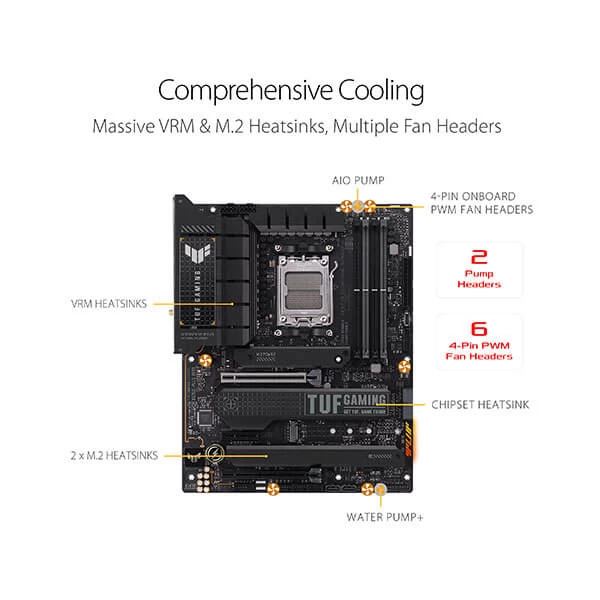

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Clear CMOS header

– ProCool

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 headers

Armoury Crate

– AURA Sync

– Fan Xpert 4 (with AI Cooling II)

– Power Saving

– Two-Way AI Noise Cancellation

AI Suite 3

– Easy Optimization

– TPU

– DIGI+ VRM

– Turbo app

– PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

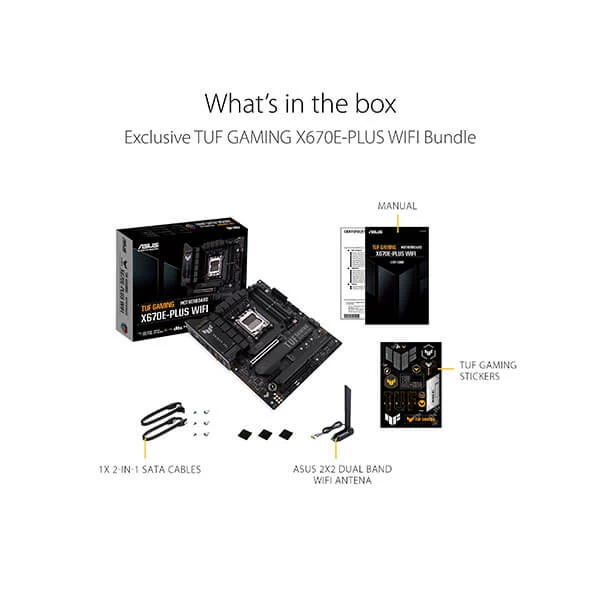

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

2 x Rubber packages for M.2

2 x Screw packages for M.2 SSD

Documentation

1 x TUF certification card

1 x User guide

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
