AVerMedia Full HD HDMI 1080p 60FPS (CL311-M2) is compatible with all range of audio and video sources via the HDMI or component inputs.
Features
- Maximum input/capture resolution 1920 x 1080 60fps
- Captures video from HDMI and analog inputs
- Supports AV/ S-Video/ Component/ HDMI inputs
- Support vertical blanking interval (VBI) function
- Recommended for all Full HD professional capturing applications, such as the video wall system, video conference, etc

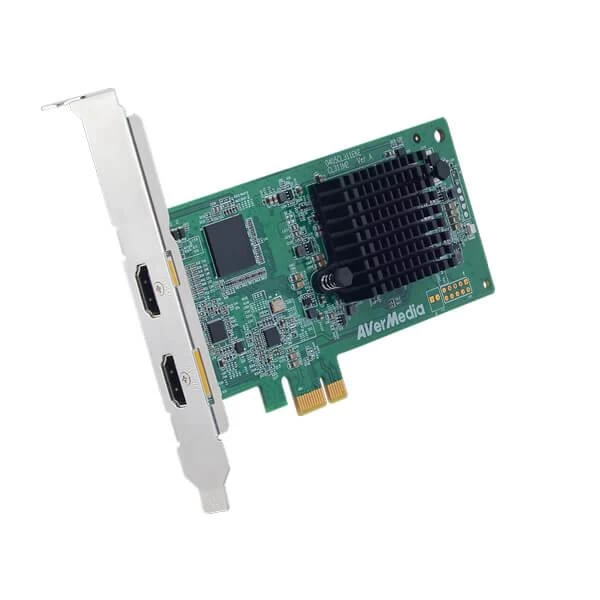

The CL311-M2 is a PCIe HDMI frame grabber capable of capturing videos up to 1080P 60FPS. CL311-M2 is compatible with all range of audio and video sources via the HDMI or component inputs so the users can enjoy Full HD multimedia right on their computers.
High Quality HDMI and Analog Capturing
It’s effortless to capture standard or high definition analog video with the accompanying 9-in-1 analog dongle cable. Moreover, you can capture 1080P video via component input and edit your own professional video clips on your computer system easily. This means that the CL311-M2 is compatible with most video devices so you can capture anything you’d like with only one card.
Hardware scaling, de-interlacing, and color space conversion
With the AVerMedia Video Engine Technology inside, it can perform various video processing tasks such as frame rate conversion, hardware up/down scaling, de-interlacing, and so on without consuming the computing power of the target platform.
Improved Quality and Reliability
With the powerful FPGA-based design, the CL311-M2 is able to achieve a better performance and provide more improved capture quality and reliability.
Support VBI for Composite and S-Video Capture
Customers can develop their own software with CL311-M2 to implement broadcasting closed captions or use the 3rd-party software (ex. VLC) for broadcasting closed captions.
Remarkable 60 frames per second
The most common consumer recording devices today support higher recording frame rates as do more professional recording devices, such as those used for medical imaging and industrial surveillance. At 60 frames per second, you can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, providing a more lifelike and smooth video playback experience.
Versatile AVerMedia SDK Support
Industrial customers can develop vertical applications flexibly and efficiently by using AVerMedia’s exclusive designed SDK with features such as device control, media capture, A/V processing and more.
Specifications
Host Interface |
PCIe (Gen2x1) |
Audio Interface |
HDMI, L/R |
Audio Format |
Embedded HDMI, PCM |
Audio Sampling Rate |
48/44.1/32 KHz |
Connector Type |
HDMI
AV-IN for Composite
S-Video Component
Audio |
Input Interface |
Composite/ S-Video/ Component
HDMI (1.3a / HDCP 1.3)/ Audio L/R |
Video Format |
YUY2 (4:2:2), YVYU (4:2:2), UYVY (4:2:2) |
Color Adjustment |
Brightness, Contract, Hue, Saturation |
Color Depth |
8-bit |
Channel No |
1 Channel |
Max. Input Resolution |
1920 x 1080 60fps |
Max. Recording Resolution |
1920 x 1080 60fps |
Input Resolution |
Composite/ S-Video:
720x480i @ 60
720x576i @ 50
Component:
720x480i @ 60
720x480p @ 60
720x576i @ 50
720x576p @ 50
1280x720p @ 50/ 60
1920x1080i @ 50/ 60
1920x1080p @ 29.97/ 50 / 59.94/ 60
HDMI:
640x480p @ 59.94/ 60
720x480p @ 59.94/ 60
720x576p @ 50
1280x720p @50 / 59.94/ 60
1920x1080i @ 50/ 59.94/ 60
1920x1080p @ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
Output Resolution |
Composite/ S-Video:
720×480
720×576
Component:
640×480
720×480
720×576
1280×720
1920×1080
HDMI:
640×480
720×480
720×576
800×600
1024×768
1280×720
1280×800
1280×1024
1440×900
1600×1200
1920×1080 |
Encoding Mode |
Software encoding |
Multi-Card Support |
Yes |
Supported OS |
Windows 7/ 8.1/ 10 (32/ 64 bits)* |
Form Factor |
PCIe low profile |
Dimensions |
138 x 68.78 mm |
Power Consumption |
4.6W |
Operating Temperature |
0°C ~ 65°C |
Operating Humidity |
5% – 80% relative humidity |
Safety Certification |
FCC/ CE |
Accessories |
Dongle cable
Low-profile bracket |
CL311-M2 |
Full HD HDMI 1080P 60FPS PCIe Capture Card |
Warranty |
1 Year |
Note |
***Features, Price and Specifications are subject to change without notice. |
