Gamdias Chione P3-360U ARGB 360mm CPU Liquid Cooler is fine-tuned for next-generation cooling and equipped with personalized LCD display.
Features:
- IPS LCD Screen
- Customize LCD Background
- Micro-embedded Fan for Motherboard Cooling
- CHIONE CAST Software
- LCD Screen Orientation
- Control Lighting Effects / Brightness / Speed / Direction
- Show System Information (with customized image)
- Motherboard sync ARGB
- Durable Teflon Tube with Aesthetic Nylon-braided Tube Sleeve
- High Static Pressure Hydraulic PWM fan
USB AEOLUS Box
- Support LGA 1700 / AM5 / TR4
NEXT GENERATION COOLING

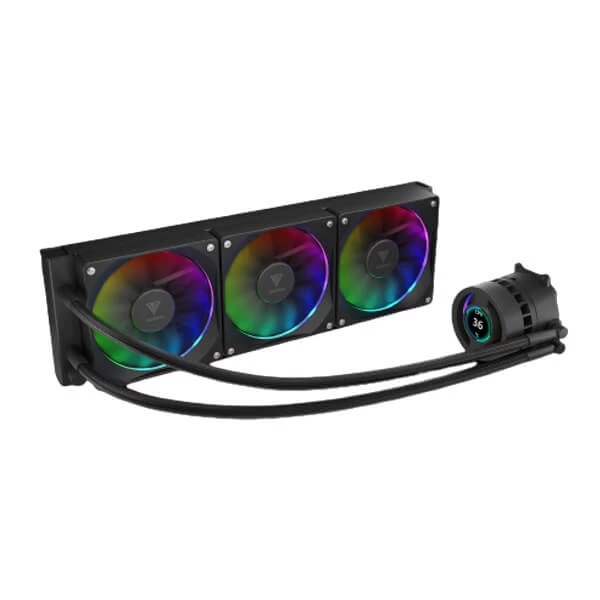

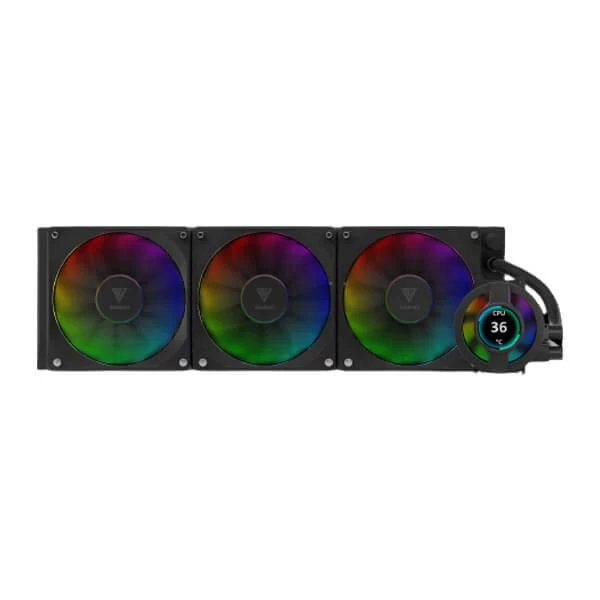

The CHIONE P3 high-performance liquid cooler is a 360mm radiator AIO fine-tuned for next-generation cooling and equipped with a personalized LCD display. The AIO features a highly customizable IPS LCD display, a motor pump with a high-performance three-phase drive, an optimized cold-plate design, a micro-embedded fan within the pump head, and three fine-tuned AEOLUS M3 PWM fans to offer top-notch cooling power on any setup.
PERSONALIZED LCD DISPLAY

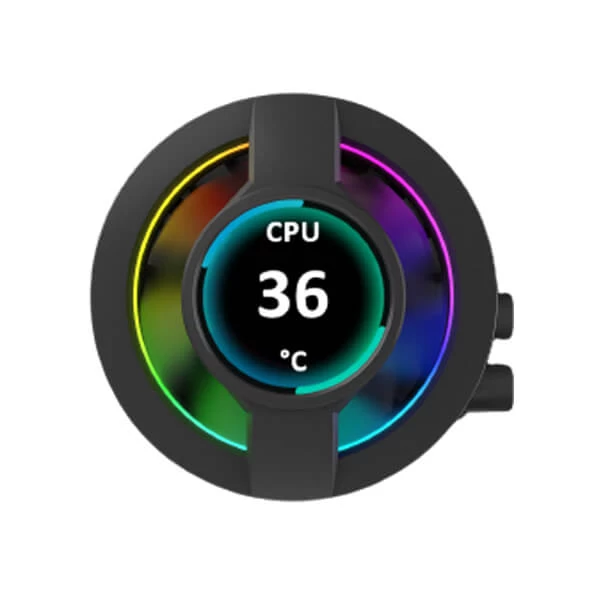

The CHIONE P3 Series comes with a brilliant IPS LCD display, allowing you to monitor your system performance statistics in real-time, while also personalizing the screen with any images or animated GIFs as background for system statistics. The pump head is equipped with a stunning ARGB lighting ring with pre-installed lighting modes for a dazzling display of lighting effects.
S-TIER COOLING PUMP
The AIO pump is enhanced by a high-performance three-phase drive motor water pump up to 2800RPM, a micro-embedded fan for enhanced heat dissipation around CPU VRMs and surrounding components, and a high-density copper base cold plate optimized for seamless CPU fittings to provide maximized cooling performance.
SUPERIOR RADIATOR

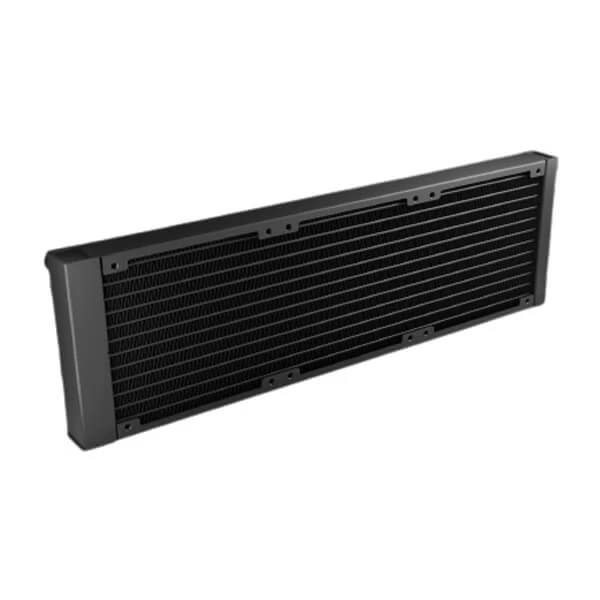

The CHIONE P3 series is equipped with a premium-class radiator sporting a 25% increase in radiator thickness and high-density fins for a more reliable cooling ability.
PERFORM IN STYLE

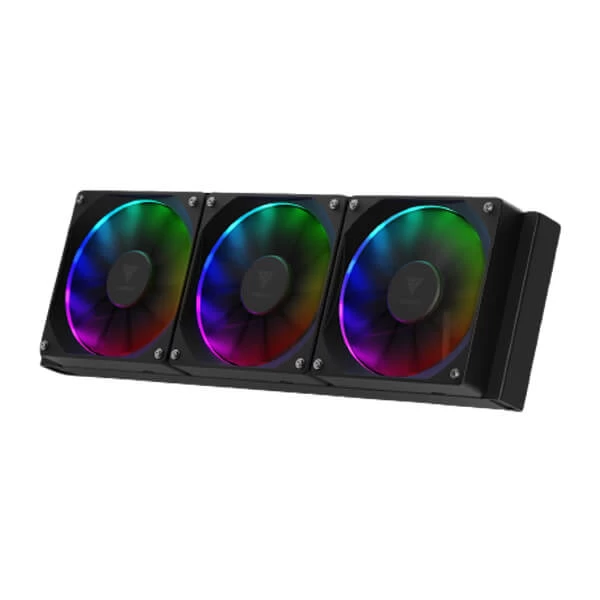

Built with an emphasis on superior airflow performance, the radiator AEOLUS M3 PWM fans provide high static pressure of up to 69.01 CFM for optimized airflow guidance. The fans feature fully addressable low-profile ARGB lighting providing a subtle and modish look.
PREMIUM HYDRAULIC BEARING
With near-zero friction between moving parts, the AEOLUS M3 fans make minimal noise while generating maximum airflow while having a long lifespan.
INTEGRATED CONTROL BOX

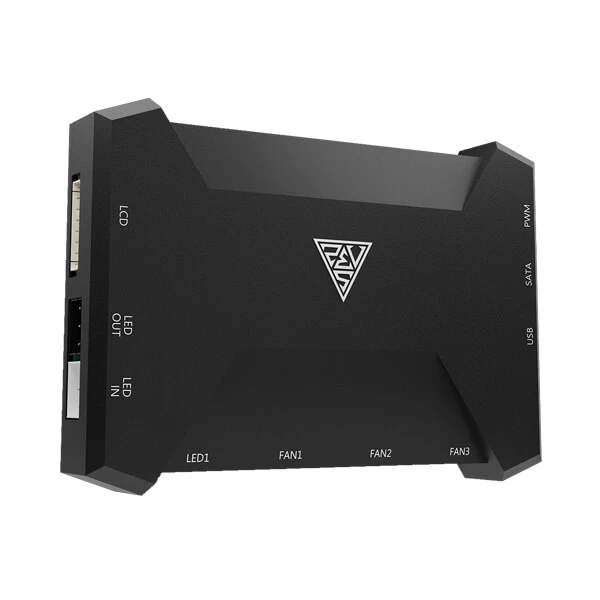

The standalone USB AEOLUS Box for the CHIONE P3 cooler can control three fans and one LED strip. While connected to the GAMDIAS AEOLUS BOX, daisy chain up to 8 additional fans and 2 LED strips to sync up your build.
REAL-TIME SYSTEM MONITORING
The CHIONE CAST software provides real-time support in monitoring essential system information on your PC once connected to the USB AEOLUS Box and the CHIONE P3 AIO header to the motherboard.
FULLY ADDRESSABLE RGB LIGHTING
Enjoy immersive software-controlled ARGB lighting effects or choose from a variety of built-in lighting effects. Customize lighting brightness, speed, and direction, or simply sync directly with the motherboard all through the CHIONE CAST Software.
UNIVERSAL COMPATIBILITY

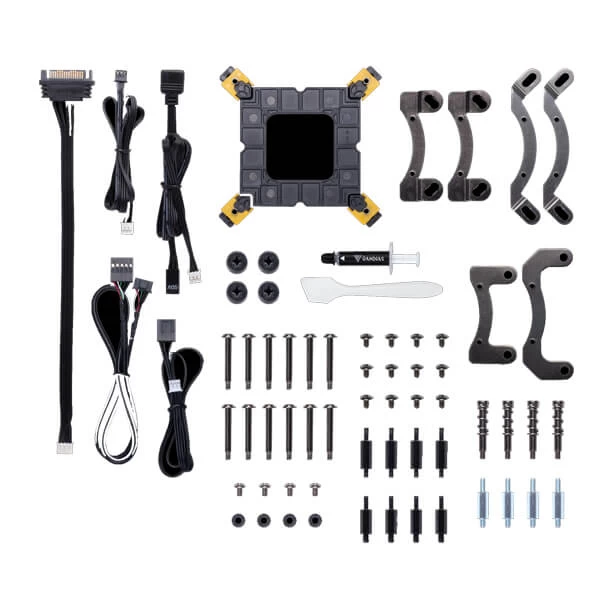

The CHIONE P3 AIO cooler comes with an upgraded mounting kit for easy installation on both AMD and Intel platforms. (LGA 1700/AM5/TR4 Ready)
Specifications:
Model Number |
CHIONE P3-360U |
Package Contents |
Cooler : 1
Fan : 3
USB AEOLUS Box : 1
Thermal Grease : 1
Mounting Kit : Yes |
LIQUID COOLER – FAN |
Dimensions : 120 x 120 x 25 mm
Speed : 800 – 2000 RPM±10%
Noise Level : 10 – 31 dBA
Air Flow : 69.01 CFM
Air Pressure : 2.37 mmH2O
Bearing : Hydraulic
Rated Voltage : 12 V (Fan) / 5V(LED)
Connector : 8 pin
Support PWM Control : Yes |
LIQUID COOLER |
Radiator Dimensions : 394 x 119 x 27 mm
Tube Material : Teflon
Base Plate Material : Copper
Radiator Material : Aluminum
Sleeved Tube : Yes
Pump Rated Voltage : 12 V (Pump) / 5V(LED)
Pump Connector : 3 Pin
Compatibility : LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4
TDP : 290W ±10%
Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only |
LIQUID COOLER – CONTROL BOX |
Model : USB AEOLUS Box
Dimensions : 83 x 59 x 14 mm
Power Connector : SATA
Support LED type : 5V 3-pin Addressable (Digital) LED
Support Daisy Chain : Yes
Built-In Magnet : Yes |
Warranty |
2 Years |
Note |
*** Features, Price, Specifications are subject to change without notice. |
