    b550m ds3h motherboard

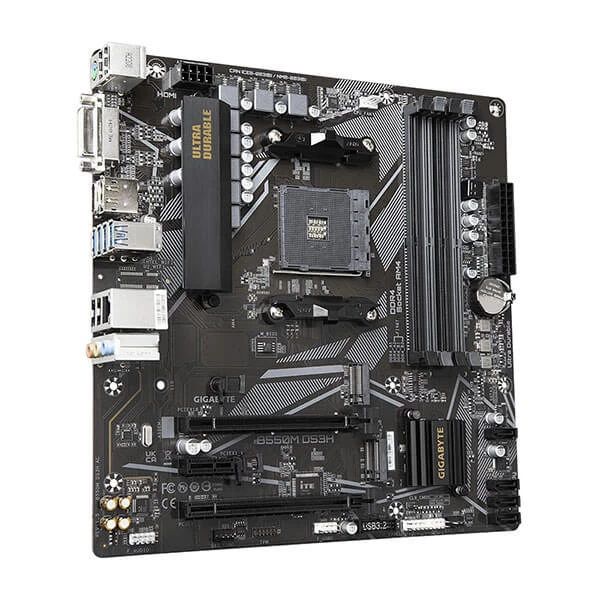

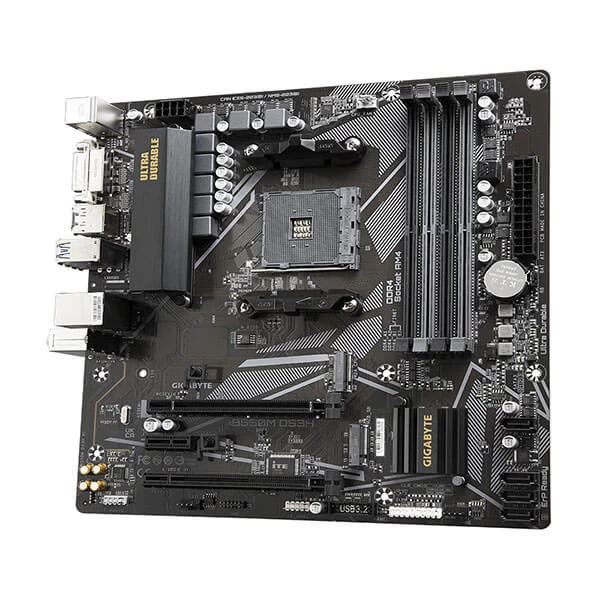

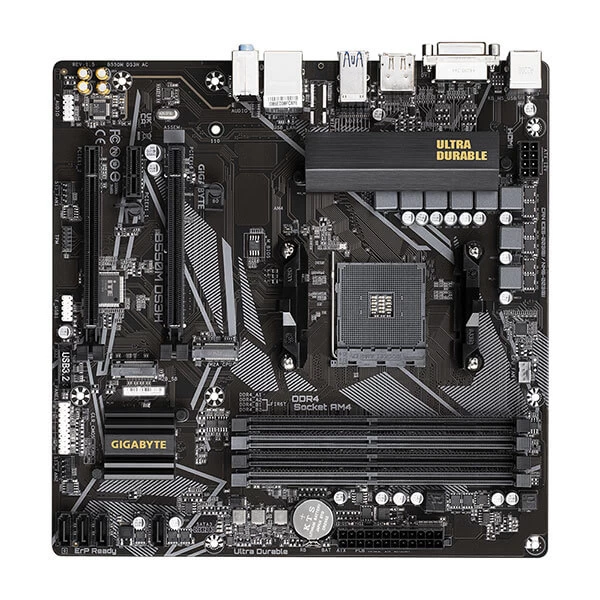

    Gigabyte B550M DS3H Motherboard

    • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra Durable PCIe 4.0 Ready x16 Slot
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
    SKU: B550M-DS3H
    Brands: Gigabyte

    Original price was: ₹12,499.00.Current price is: ₹8,909.00.

    Only 1 left in stock

    Only 1 left in stock

    Compare
    Add to wishlist
    129 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier
    • Shiprocket
    • Delhivery_Logo_(2019)-svg

    3 - 4 Working Days With Express

    5 - 6 Working Days With Surface
    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    Gigabyte B550M DS3H Motherboard

    The Gigabyte B550M DS3H Motherboard is a feature-rich and reliable choice for building your AMD Ryzen-based PC. Designed to deliver outstanding performance, it supports AMD Ryzen 5000, 4000, and 3000 series processors, making it an ideal choice for gaming, content creation, and everyday computing tasks. With its advanced architecture and B550 chipset, this motherboard perfectly blends affordability and high-end functionality.

    One of the standout features of the B550M DS3H motherboard is its PCIe 4.0 support, offering ultra-fast connectivity for next-generation graphics cards and NVMe storage devices. The motherboard comes equipped with dual M.2 slots, including one PCIe 4.0 x4 slot, enabling you to harness high-speed storage solutions for faster boot times and seamless multitasking.

    With support for DDR4 memory up to 128GB, running at speeds of up to 4733 MHz (OC), the Gigabyte B550M DS3H ensures smooth performance across demanding applications and multitasking scenarios. Whether you’re gaming at high resolutions or working on complex creative projects, this motherboard delivers the power and stability you need.

    Connectivity on the Gigabyte B550M is robust, featuring USB 3.2 Gen 1 ports for high-speed data transfers, HDMI and DVI ports for multi-display setups, and Realtek GbE LAN for reliable internet connectivity. The Gigabyte Ultra Durable design enhances the motherboard’s longevity, with solid pin power connectors and anti-sulfur transistors to ensure durability in all conditions.

    Audio enthusiasts will appreciate the Realtek ALC887 audio codec, providing rich and immersive sound quality. This makes the B550M DS3H motherboard a fantastic choice for gamers who want to experience clear in-game audio or for multimedia users seeking superior sound performance.

    The motherboard’s Smart Fan 5 technology ensures efficient cooling, allowing users to monitor and adjust fan speeds for optimal performance. The temperature sensors and hybrid fan headers provide enhanced thermal management, keeping your system cool even during intense workloads.

    Compact in its Micro-ATX form factor, the Gigabyte B550M DS3H is perfect for space-conscious builds, fitting into smaller cases without compromising on features. Its sleek and durable design, coupled with an easy-to-use BIOS interface, ensures smooth system configuration for both novice and advanced PC builders.

    Whether you’re upgrading your current setup or building a new PC, the Gigabyte B550M DS3H Motherboard offers incredible value and performance. With its advanced features, durable build, and excellent compatibility, this motherboard is a reliable foundation for your high-performance computing needs.

    Features:

    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra Durable™ PCIe 4.0 Ready x16 Slot
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
    • High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • Realtek GbE LAN with Bandwidth Management
    • Rear DisplayPort, HDMI & DVI Support
    • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan
    • Headers with FAN STOP
    • Anti-Sulfur Resistors Design

    Specification:

    CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    Chipset AMD B550
    Memory
    • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)
    Onboard Graphics Integrated Graphics Processor:

    • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.
    • 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Support for up to 3 displays at the same time

    Maximum shared memory of 16 GB
    Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    • AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode* Actual support may vary by AMD CPU’s specification.
    • AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

    • Supporting PCIe 3.0 x1 mode

    1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

    • Supporting PCIe 3.0 x1 mode
    Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

    • AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

    • Supporting SATA and PCIe 3.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    • Support for RAID 0, RAID 1, and RAID 10
    USB CPU:

    • 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    • 2 x USB 3.2 Gen 1 ports available through the internal USB header
    • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 1 x USB 2.0/1.1 header
    • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    • 1 x Clear CMOS jumpe

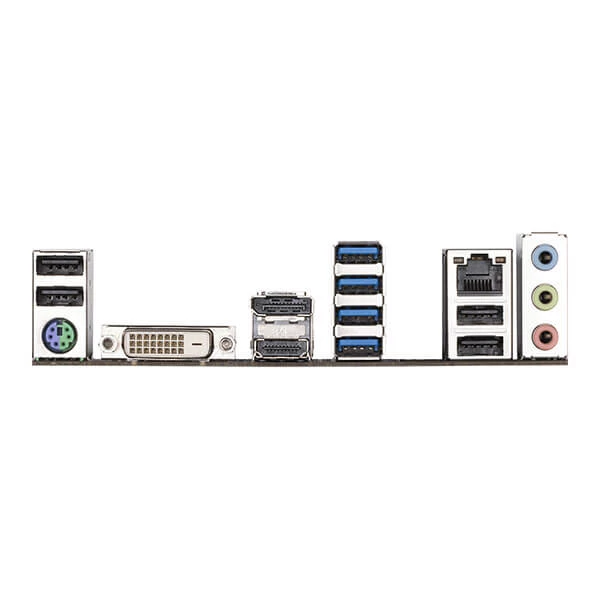

    Back Panel Connectors
    • 1 x PS/2 keyboard/mouse port
    • 1 x DVI-D port
    • 1 x DisplayPort
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Fan fail warning
    • Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    • Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    @BIOS

    EasyTune

    Smart Backup

    System Information Viewer

    • Support for Q-Flash
    • Support for Xpress Install
    Bundled Software
    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software
    Operating System
    • Support for Windows 11 64-bit
    • Support for Windows 10 64-bit
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
    Remark
    • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.



    Additional Information

    Brand

    Gigabyte
    Product Type

    Motherboard
    Weight

    1 KG
    Dimensions

    24 × 4 × 24 cm
    Chipset

    B550
    Memory Series

    DDR4
    Motherboard Size

    mATX
    Socket

    AM4
    Platform

    AMD
    Warranty

    3 Years
    EAN / UPC Code

    4719331809416
