Description

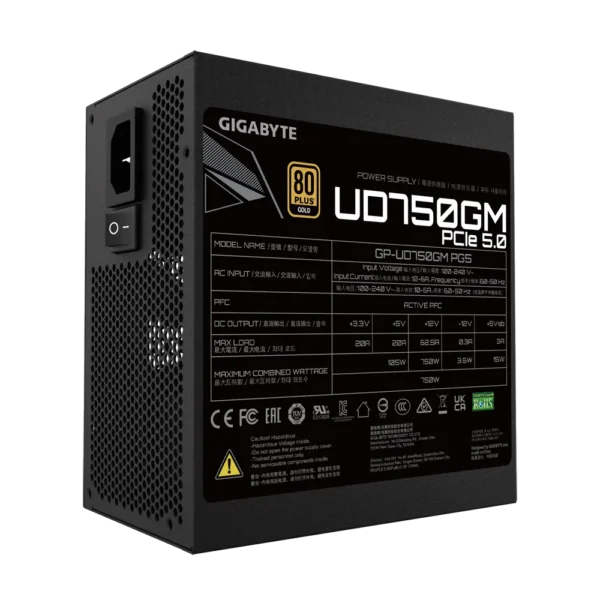

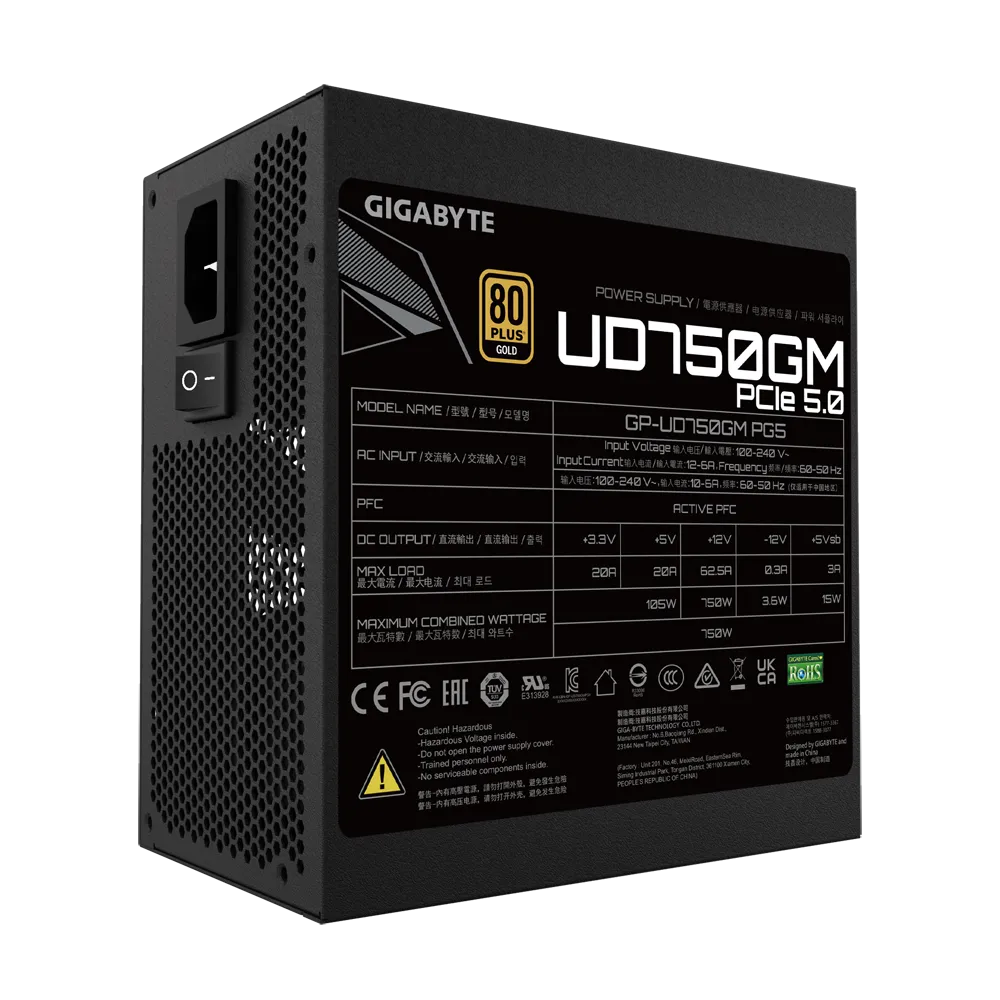

Gigabyte GP UD750GM PG5 Power Supply

• ModelGP-UD750GM PG5
• TypeIntel Form Factor ATX 12V v3.0
• PFCActive PFC (>0.9 typical)
• Input Voltage100-240 Vac (full range)
• Input Current12-6A
• Input Frequency60-50 Hz
• Output Capacity750W
• Dimension150 x 140 x 86mm
• Fan Type120mm Hydraulic Bearing(HYB)fan
• 80 PLUSGold
• Efficiency90% at typical load
• MTBF>100,000 hours
• ProtectionOVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal100-150ms
• Hold Up Time>16ms
• Cable TypeFlat, All black
• ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  PCIe 16 Pin x 1: 700mm*1
  PCIe 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
