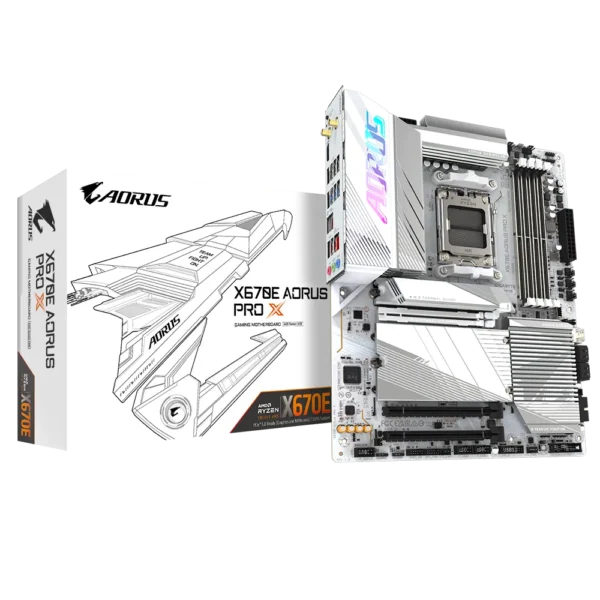

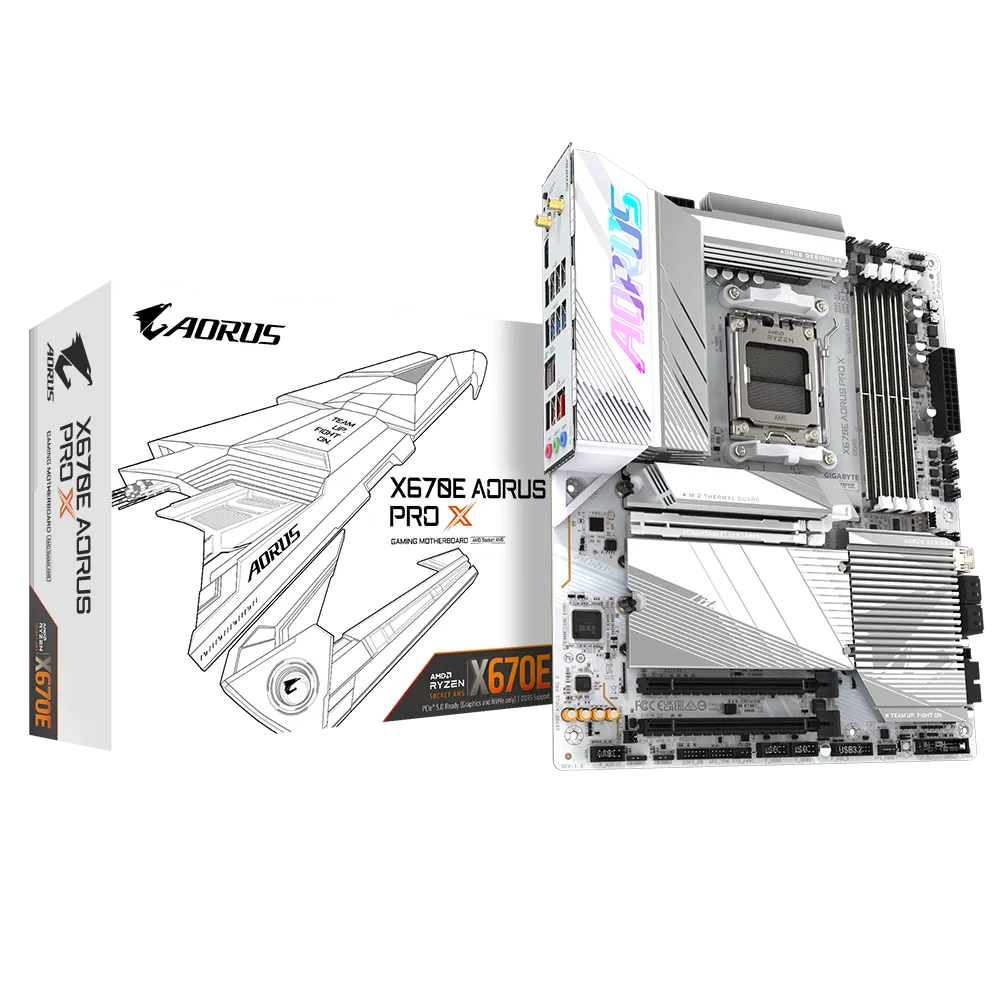

Gigabyte X670E AORUS PRO X MotherboardAMD Socket AM5：Supports AMD Ryzen 7000 Series Processors.Dual Channel DDR5.

• CPUAMD Socket AM5, support for:AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors* Please refer to “CPU Support List” for more information.
• ChipsetAMD X670
• MemorySupport for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architecture

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme

  Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.* Support for native HDMI 2.1 TMDS compatible ports.

  – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

  * Support for HDMI 1.4 version

  (Graphics specifications may vary depending on CPU support.)

• AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LANIntel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication moduleQualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3

  – Support for 11be 320MHz wireless standard

  MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)

  – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

  – BLUETOOTH 5.3

  – Support for 11be 320MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)Note:

  Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)

  Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.

• Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:

  – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

  – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

• Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  – AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  Chipset:

  – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB)

  – 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USBCPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 2 x USB 3.2 Gen 1 ports on the back panel

  CPU + USB 2.0 Hub:

  – 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  – 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back

  panel, 1 port available through the internal USB header)

  – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  – 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through

  the internal USB headers)

  – 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header

  1 x CPU fan/water cooling pump header

  4 x system fan headers

  2 x system fan/water cooling pump headers

  3 x addressable RGB Gen2 LED strip headers

  1 x RGB LED strip header

  4 x SATA 6Gb/s connectors

  4 x M.2 Socket 3 connectors

  2 x temperature sensor headers

  1 x front panel header

  1 x front panel audio header

  1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

  2 x USB 3.2 Gen 1 headers

  2 x USB 2.0/1.1 headers

  1 x noise detection header

  1 x THB_U4 add-in card connector

  1 x HDMI port*

  * Only available with the AMD Radeon™ Graphics Processors.

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

  1 x power button

  1 x reset button

  1 x Clear CMOS button

  1 x reset jumper

  1 x Clear CMOS jumper

• Back Panel Connectors1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port

  4 x USB 3.2 Gen 1 ports

  4 x USB 2.0/1.1 ports

  3 x USB 3.2 Gen 2 Type-A ports (red)

  1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

  1 x RJ-45 port

  3 x audio jacks

• I/O ControlleriTE® I/O Controller Chip
• H/W MonitoringVoltage detectionTemperature detectionFan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control* Whether the fan speed control function is supported will depend on the fan you install.

  Noise detection

• BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus

  Support for Smart Backup

• Bundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management software
• Operating SystemSupport for Windows 11 64-bit
• Form FactorATX Form Factor; 30.5cm x 24.4cm
