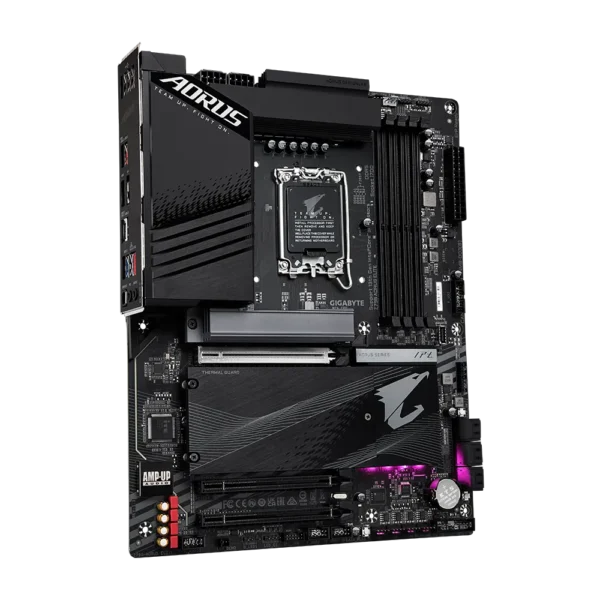

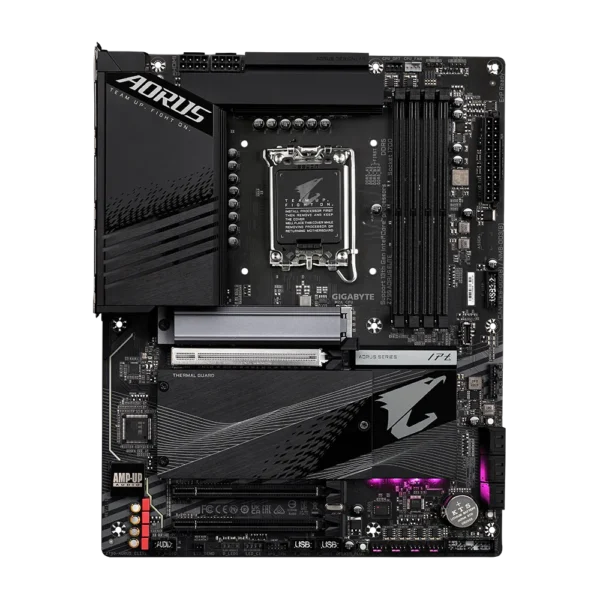

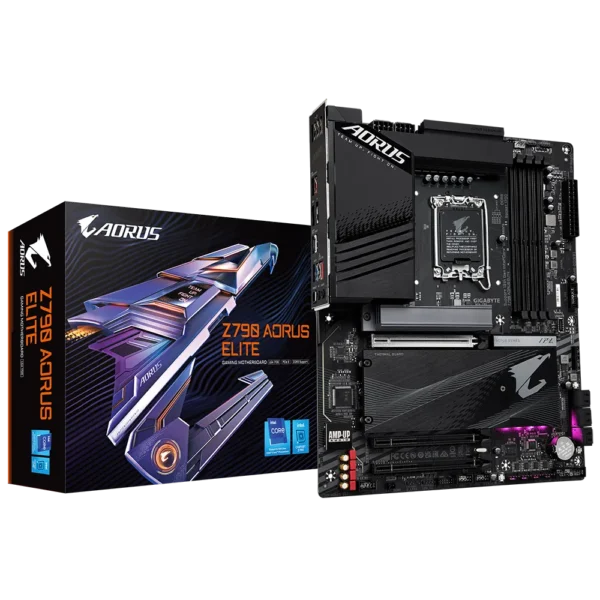

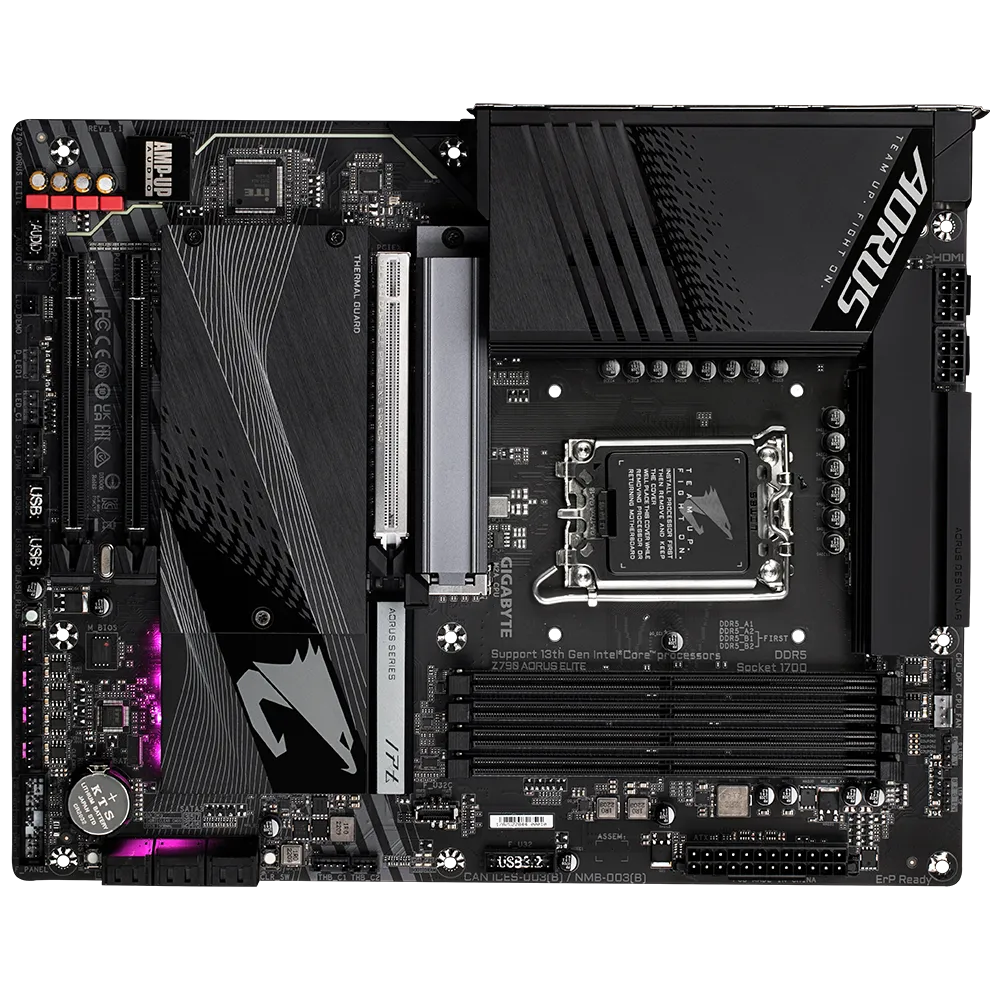

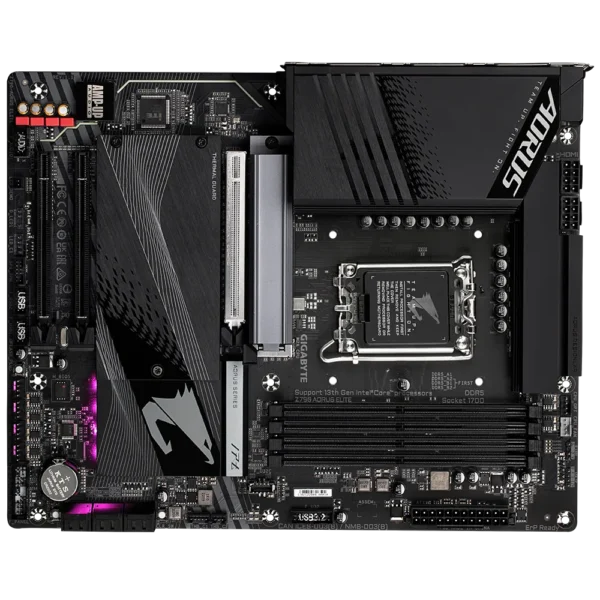

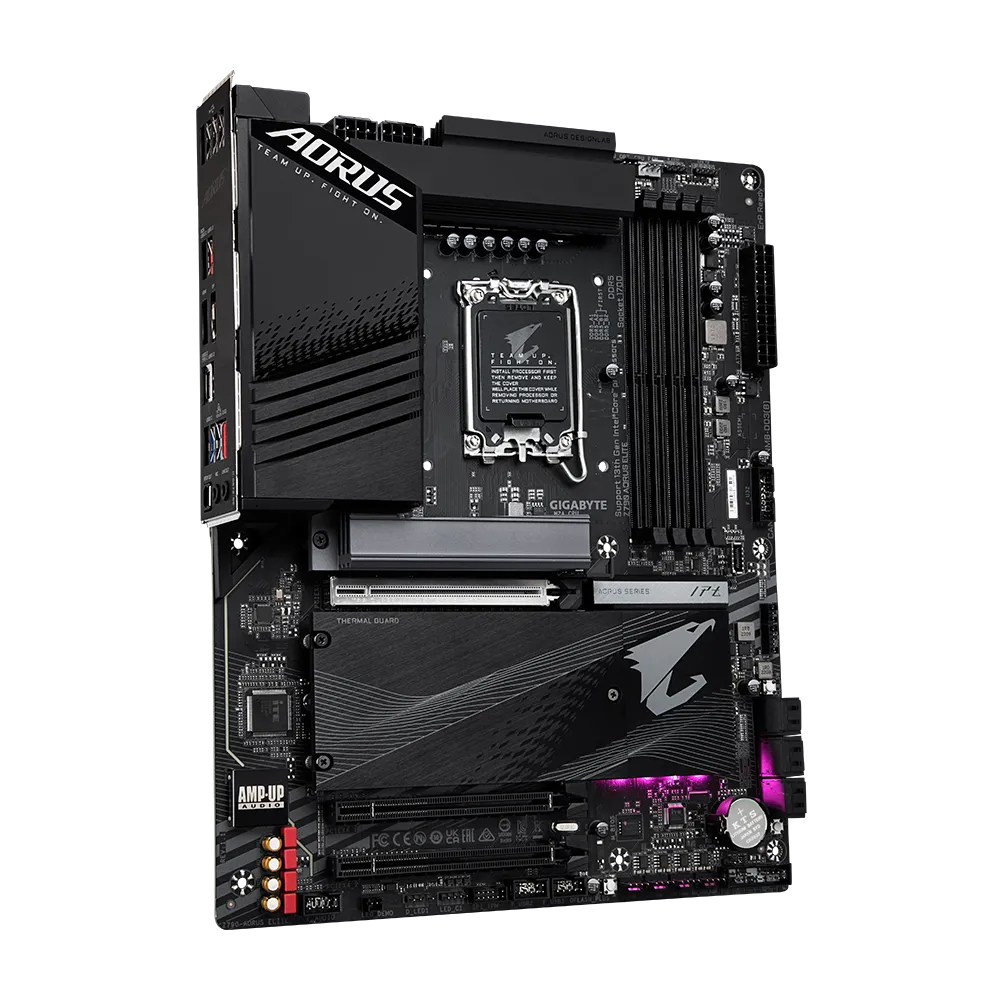

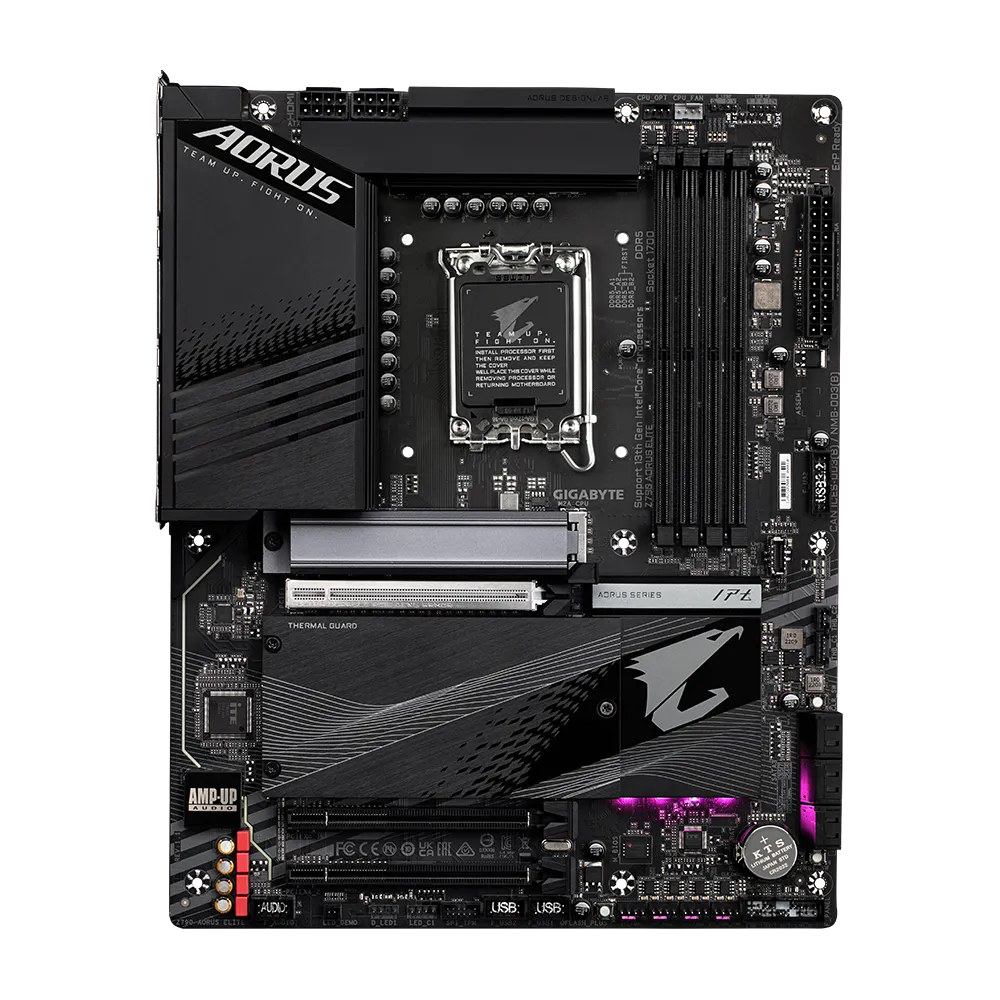

Gigabyte Z790 AORUS ELITE Motherboard

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Twin 16*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors
SKU: Gigabyte-Z790-AORUS-ELITE

47,000.00

Out of stock

Out of stock

33 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • Blue Dart
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

  • Warranty - As Per Company Norms
  • Free RMA Support

Payment Methods:

Description

/*! elementor – v3.17.0 – 08-11-2023 */

.elementor-widget-image{text-align:center}.elementor-widget-image a{display:inline-block}.elementor-widget-image a img[src$=”.svg”]{width:48px}.elementor-widget-image img{vertical-align:middle;display:inline-block}

Z790 AORUS ELITE rev 1 1 Key Features Motherboard GIGABYTE Global

Z790 AORUS ELITE rev 1 1 Key Features Motherboard GIGABYTE Global 2

Z790 AORUS ELITE rev 1 1 Key Features Motherboard GIGABYTE Global 1

  • CPU
    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z790 Express Chipset
  • Memory
    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

  • Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60* Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion SlotsCPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
  • Storage InterfaceCPU:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
    3. 6 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

  • USBChipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 4 x M.2 Socket 3 connectors
    10. 6 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 2 x Thunderbolt™ add-in card connectors
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x reset button
    19. 1 x Q-Flash Plus button
    20. 1 x Clear CMOS button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

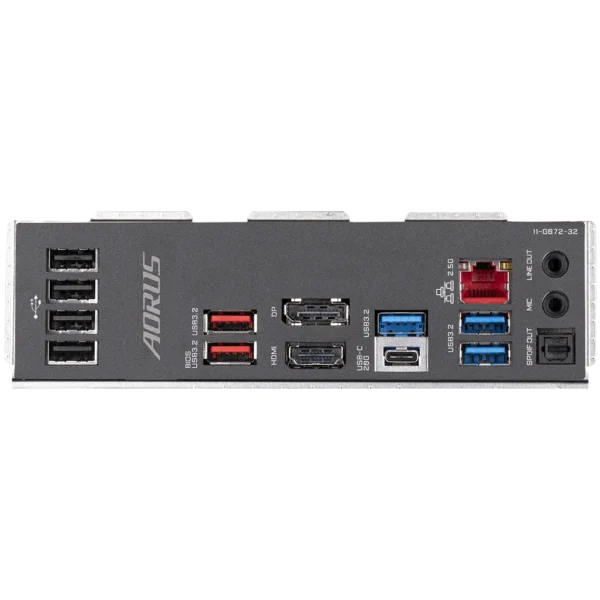

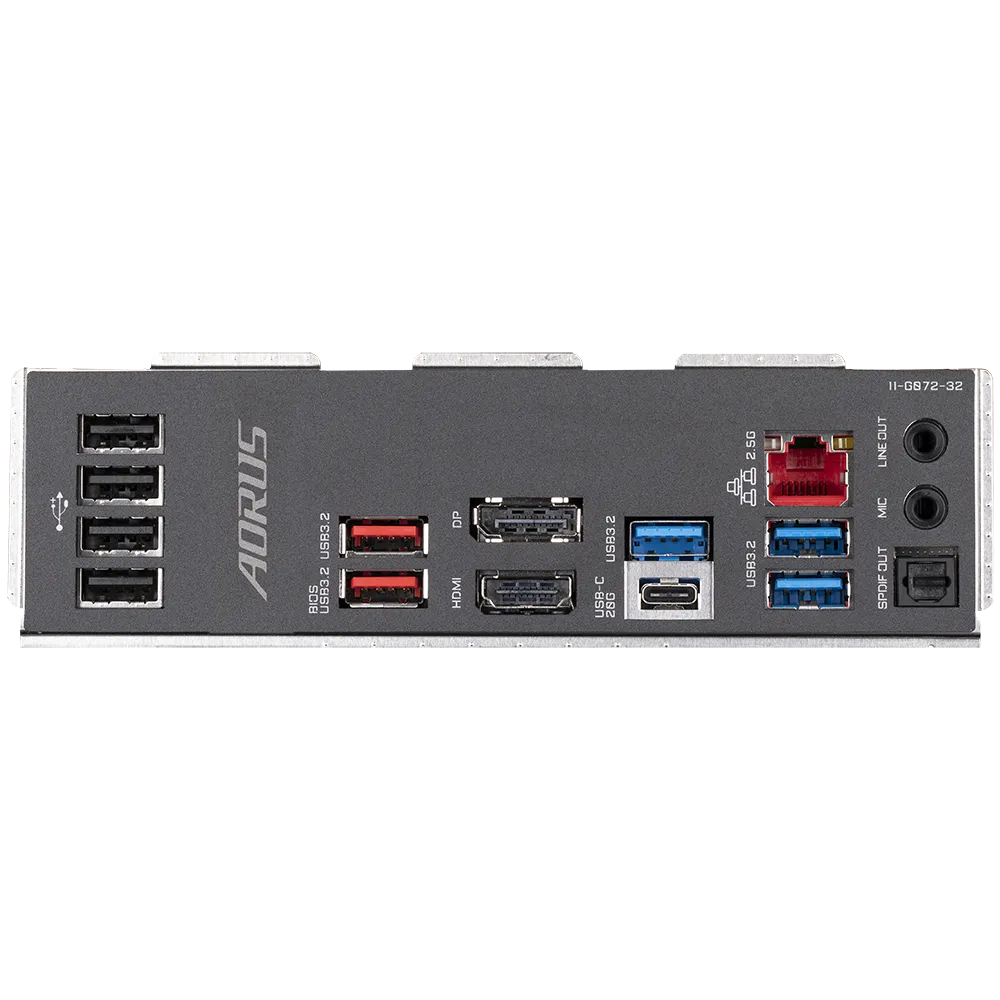

  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red)
    3. 3 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 1 x HDMI 2.0 port
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm

Additional Information

Brand

Gigabyte

EAN / UPC Code

4719331849467

Warranty

3 Years

Product Type

Gaming

Chipset

Z790

Memory Series

DDR5

Motherboard Series

Gigabyte Aorus

Platform

Intel
