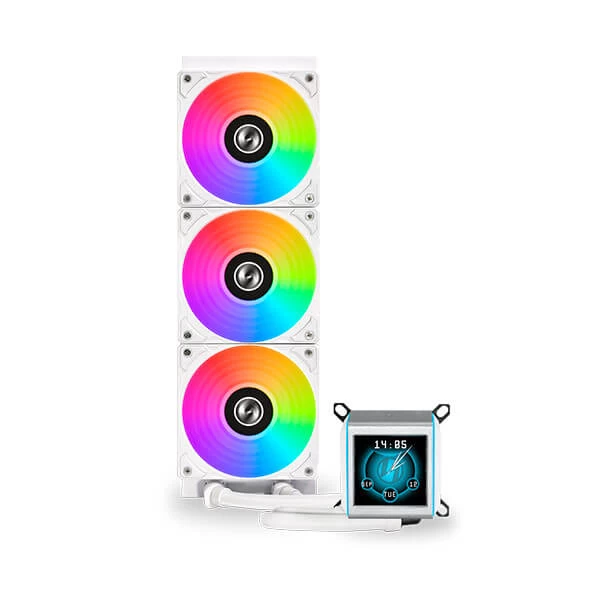

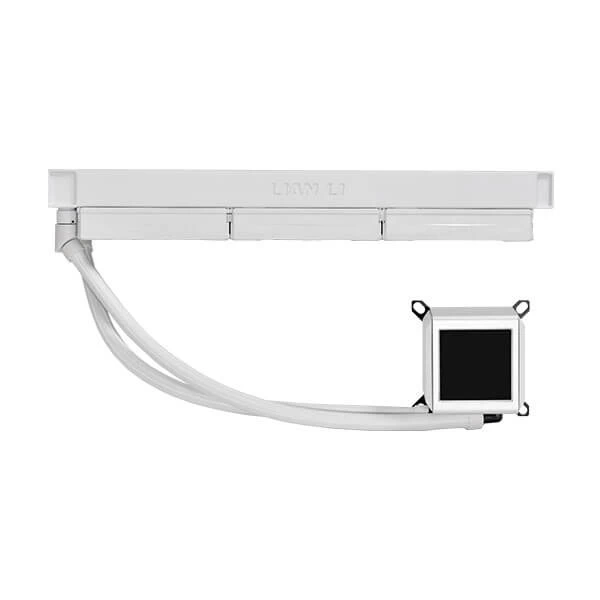

Lian Li Galahad II LCD 360 CPU Liquid Cooler (White)

GALAHAD II LCD 360 White

  • Features a 2.88” IPS LCD screen with a 480×480 resolution
  • Powered by Asetek 8th Gen Solution with a three-phase motor that goes up to 3600 RPM
  • Features screen recording and screen capturing functions to easily display your favorite contents
  • Access unique screen effects and layer-by-layer customization through L-Connect 3
  • Factory installed ARGB daisy-chainable radiator fans or UNI FAN SL-INF
  • 45-degree tubing connector that enables 360-degree rotation of tubes for more installation versatility
SKU: G89.GA2ALCD36W.IN

22,050.00

39 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

DHL courier will deliver to the specified address

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty 1-3 year
  • Free 7-Day returns

Payment Methods:

Description



GALAHAD II LCD AIO

VISUALIZE THE COOL
DEFINE YOUR STYLE


Asetek 8th Gen Pump
2.88” IPS LCD
PRE-INSTALLED DESIGN
EXTREME COOLING

45° ROTARY FITTINGS
DAISY-CHAINED ARGB FAN
L-CONNECT 3 CONTROL
6 YEARS WARRANTY





AVAILABLE IN TWO FAN OPTIONS

TWO SIZES /TWO COLORS

The Galahad II LCD comes with pre-installed fans on the radiator for your convenience. It is available with 2 kinds of fans:

With High Performance RGB Fan

Pushing air through the radiator effectively while maintaining the stunning looks of RGB fans.



With UNI FAN SL-INF

Easily match the AIO fans to your case fans with this visually stunning option

Note:
The UNI FAN SL-INF controller included in the Galahad II LCD SL-INF version allows expansion of the UNI FAN SL-INF single pack (no triple pack).





EMPOWER WITH CUSTOMIZABLE DISPLAY

The LCD screen on the water block can be personalized and controlled using L-Connect 3, with a wide range of multi-effects and customization for you to explore.



● 2.88” LCD Screen

● 480 × 480 Resolution

●500 nits Brightness

● IPS Type Display

● 24-bit Full Color



VISUALIZING THE CHANGES WITH UNIQUE CIRCULAR EFFECTS

Through L-Connect 3, multiple circular effects that can display text at the center are offered. The speed of the effect can be set manually or adjusted dynamically according to the monitored hardware sensor.

CENTER DISPLAY OPTIONS



● CPU temperature

● CPU load

● GPU temperature

● GPU load

● Coolant temperature

● Customized text

● Time



BUILD YOUR PERSONAL DASHBOARD

Featuring 4 layers to achieve a completely personalized display system on the go.



① Layer 1: Watermark Upload an image or GIF that can be moved horizontally and vertically with different levels of shadow and opacity adjustments.



② Layer 2: Hardware Information or Text
Display and loop various hardware information, time, or custom text messages.
Each can be adjusted with various layouts, orientations, fonts, sizes, and shadow settings.



③ Layer 3: Themed Motion Graphics
Select background type effects with intensity that can be manually customized or dynamically adjusted based on hardware sensor monitor.



④ Layer 4: Images or Videos
Set your background with colors or display videos and images through screen record/screen capture or file upload (MP4/GIF/JPEG/PNG).



BACKGROUND TYPE EFFECTS

Besides the Circular Effects, there are also Background-Type Effects designed to give your videos and photos a different look.

Note: 3D Rain & Firework effect aren’t supported by video files.


 |  |







CAPTURE, EDIT, AND ENJOY

Through L-Connect 3, you can freely screen record or screen capture your favorite content from virtually anywhere. You can even further edit the videos or images that you captured with a built-in editor tool before fully importing the files.




DESIGNED FOR COOL

The 8th Gen Asetek pump features a 3-phase motor with up to 3600 RPM for enhanced cooling and quieter operation. It is further complemented by a larger cold plate designed for the latest Intel and AMD processors.

● 2.88” LCD Screen

● 2 ARGB LED Strips



● Asetek 8th Gen Pump




● Square Copper Cold Plate

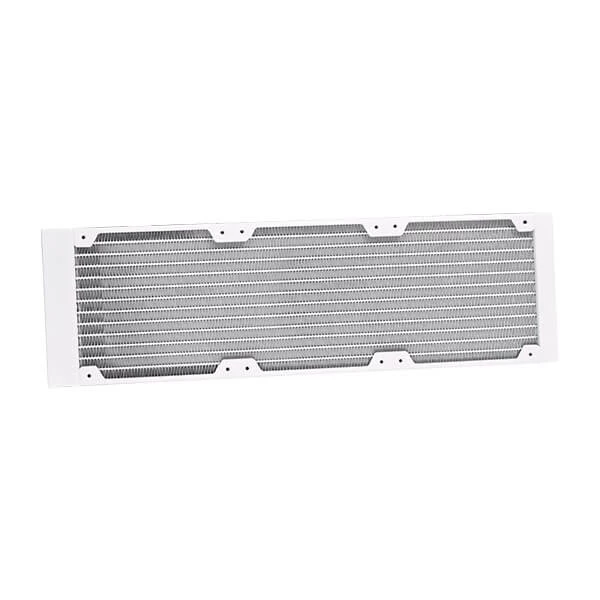

HIGH DENSITY ALUMINUM RADIATOR

This 30mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and results in greater thermal performance.




DAISY-CHAINABLE ARGB FAN

The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fans.





The 120/140mm fan is 25mm thick and is equipped with fluid dynamic bearing for stable and quiet operations while effectively providing airflow to the radiator.



 Maximum Static PressureMaximum Airflow
120MM3.26 mmH2O79.9 CFM
140MM2.99 mmH2O89.7 CFM




MOUNT IN ANY WAY

This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.

The Galahad ll Trinity series can be flexibly installed in ways such as:



Top Mount

Side Mount

Front Mount

Note: Do not apply heavy pressure to the connector.

To make things even better, it also comes with 2 Velcro straps to help with organizing the 385mm long tubes.






INSTALLATION MADE EASY, FOR YOU

The Galahad II LCD provides out-of-the-box easy installation sockets for most mainstream CPUs. It is recommended to install the waterblock with the tube facing downward to achieve optimal performance.



Thermal paste is pre-applied on the copper plate for effective heat dissipation. An extra tube of thermal paste is also included in the box.




SEAMLESS SOFTWARE

L-Connect 3 gives you complete control over the Galahad II LCD, ranging from the screen, screen LED and fan lighting effects, and pump and fans’ speed.



Offers 16 lighting effects for the LED strips at the 2 sides of the screen.

Set the lighting effect of the fans or sync with them with the LED strips.



Set the fan and pump speed with a real-time curve at the fan/ pump profile.






SIMPLE CONNECTION

The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.

ONLY 2 CABLES ARE NEEDED FOR BLOCK HEAD.

◼︎ 4-PIN PWM Cable
To power up the pump with a 12V pump header on the motherboard

◼︎ USB Type-C Cable
Plug into a motherboard 9-pin USB header to power up the screen, capture data, and use L-Connect 3.

Note: Make sure the Type-C header is securely plugged in and that the LIAN LI logo animation is running.

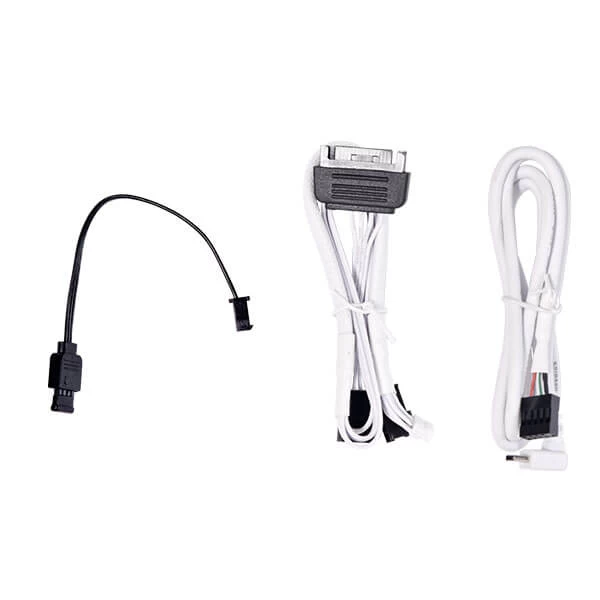

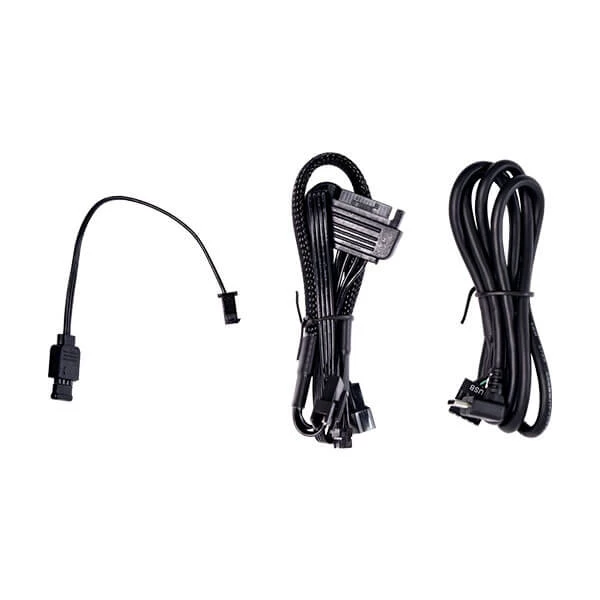

AN EXTENSION CABLE TO POWER UP THE INCLUDED FANS

*Not included in the SL-INF version

◼︎ SATA Cable
For fan PWM 12V and ARGB 5V power

◼︎ ARGB Input cable
Included fan ARGB connection for L-Connect 3 control

◼︎ Fan Input Cable
Included fan speed connection for L-Connect 3 control

◼︎ 4-PIN ARGB extension cable
Able to connect a 3rd party ARGB device (while not using the included fan) to control with L-Connect 3.





6 YEAR WARRANTY

Built with high quality, the Galahad II LCD is proudly backed by a 6-year warranty, including the fans and controller.
Damage to other components from leakage will be backed up to 3 years after we closely inspect the cause of leakage.

Note: 6-year countdown begins when you register the product, and RMA does not refresh the 6-year warranty




SPECIFICATIONS

PRODUCT NAMEGALAHAD II LCD
MODELGA2ALCD36BGA2ALCD36WGA2ALCD28BGA2ALCD28W
TYPE360280
COLORBlackWhiteBlackWhite
PUMP SOLUTIONAsetek 8th Gen Pump
PUMP SPEED3600 RPM (Max.)
PUMP NOISE32.1 dBA
WATER BLOCK DIMENSION72.15 × 73.05 × 61.98 mm
LCD DISPLAY TYPE2.88” IPS
LCD DISPLAY RESOLUTION480 × 480 pixels
SCREEN BRIGHTNESS500 nits
RADIATOR DIMENSION399.5 x 120 x 30mm319.5 x 140 x 30mm
RADIATOR MATERIALAluminum
TUBE LENGTH385mm
FAN DIMENSION123 x 120 x 25mm143 x 140 x 25mm
FAN SPEED300~2450 RPM300~1550 RPM
STATIC PRESSURE3.26 mmH2O (Max.)2.99 mmH2O (Max.)
AIRFLOW79.9 CFM (Max.)89.7 CFM (Max.)
ACOUSTIC NOISE30 dB(A)26.7 dB(A)
BEARING TYPEFluid Dynamic Bearing (FDB)
COMPATIBLE CPU SOCKETSIntel: LGA 1700 / 1200 / 115x
AMD: AM5 / AM4
WARRANTY6 years warranty
PRODUCT NAMEGALAHAD II LCD SL-INF
MODELGA2ALCD36INBGA2ALCD36INW
TYPE360
COLORBlackWhite
PUMP SOLUTIONAsetek 8th Gen Pump
PUMP SPEED3600 RPM (Max.)
PUMP NOISE32.1 dBA
WATER BLOCK DIMENSION72.15 × 73.05 × 61.98 mm
LCD DISPLAY TYPE2.88” IPS
LCD DISPLAY RESOLUTION480 × 480 pixels
SCREEN BRIGHTNESS500 nits
RADIATOR DIMENSION399.5 x 120 x 30mm
RADIATOR MATERIALAluminum
TUBE LENGTH385mm
FAN DIMENSION122.1 x 120 x 25mm
FAN SPEED0, 200~2100 RPM
STATIC PRESSURE61.3CFM (Max.)
AIRFLOW79.9 CFM (Max.)
ACOUSTIC NOISE29 dB(A)
BEARING TYPEFluid Dynamic Bearing (FDB)
COMPATIBLE CPU SOCKETSIntel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4
WARRANTY6 years warranty
