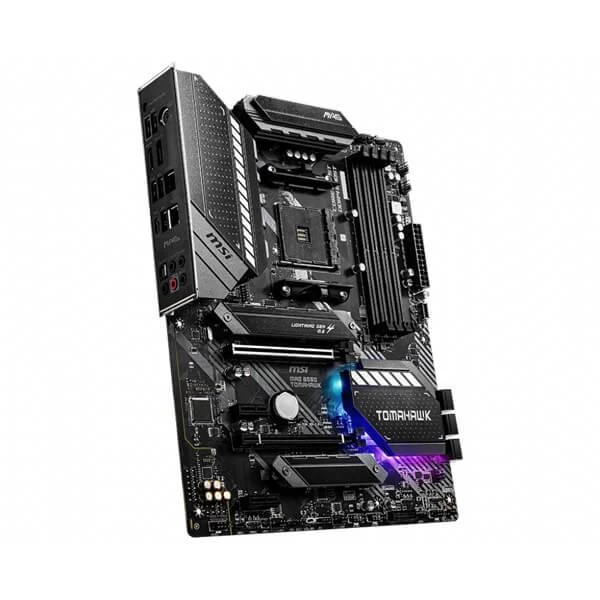

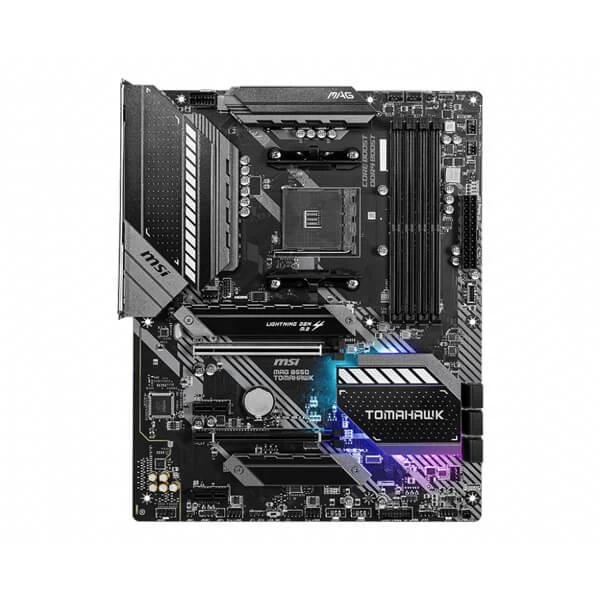

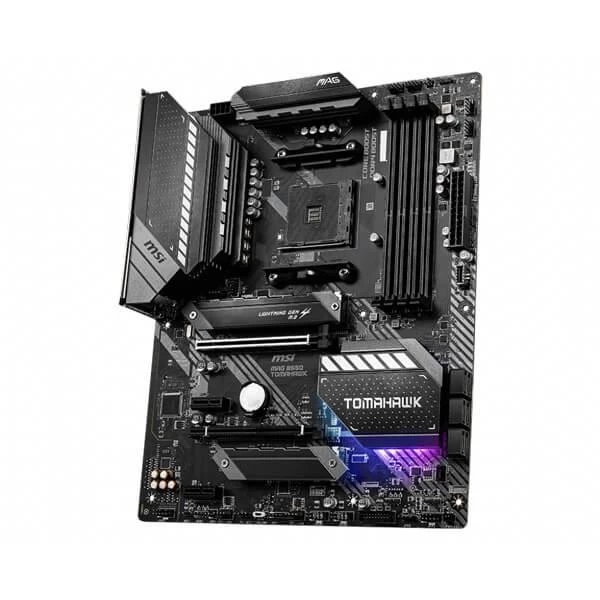

    MSI MAG B550 Tomahawk Motherboard

    • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
    • Supports DDR4 Memory, up to 4866+(OC) MHz
    • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
    • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
    • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
    • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
    • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
    • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
    • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
    • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire
    SKU: MAG-B550-TOMAHAWK
    Brands: MSI

    Original price was: ₹17,999.00.Current price is: ₹8,990.00.

    Out of stock

    Out of stock

    Add to compare
    Add to wishlist
    114 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier
    • Shiprocket
    • Delhivery_Logo_(2019)-svg

    3 - 4 Working Days With Express

    5 - 6 Working Days With Surface
    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    MSI MAG B550 Tomahawk Motherboard supports AMD Ryzen 5000 & 3000 Series and AMD Ryzen 4000 G-Series desktop processors.

    Specifications

    Processor

    Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

    ChipsetAMD B550 Chipset
    Memory
    • 4 x DDR4 memory slots, support up to 128GB
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 4866 MHZ
        • 1DPC 2R max speed 3866 MHZ
        • 2DPC 1R max speed 4000 MHZ
        • 2DPC 2R max speed 3600 MHZ
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
    • 2x PCIe 3.0 x1 slots
    1. The supported specification depends on installed processor.
    2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
    Multi-GPUSupports 2-Way AMD CrossFire™ Technology
    Onboard Graphics
    • 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz
    • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
    • Maximum shared memory of 2048 MB
    StorageAMD B550 Chipset

    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor)
        • Supports PCIe 4.0/ 3.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 slot (from AMD B550 chipset)
        • Supports PCIe 3.0×4
        • Supports 2242/ 2260/ 2280 storage devices
    1. The supported specification depends on installed processor.
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USBAMD B550 Chipset

    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    AudioRealtek® ALC1200 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN
    • 1x Realtek® RTL8125B 2.5Gbps LAN controller
    • 1x Realtek® RTL8111H 1Gbps LAN controller
    Internal connectors
    • x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 4-pin RGB LED connectors
    • 2x 3-pin RAINBOW LED connectors
    • 1x TPM module connector
    • 1x Clear CMOS jumper

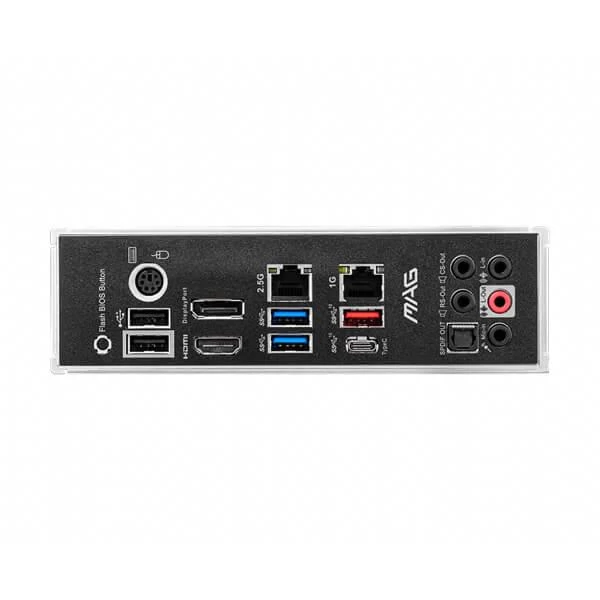

    Back panel ports
    • PS/2 Combo Port
    • DisplayPort
    • 2.5G LAN Port
    • 1G LAN Port
    • HD Audio Connectors
    • Flash BIOS Button
    • USB 2.0 Port
    • HDMI Port
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
    • Optical S/PDIF OUT
    Dimensions
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    Mounting9 mounting holes
    Operating SystemSupport for Windows® 10 64-bit
    Warranty3 Years
    Note***Features, Price and Specifications are subject to change without notice.
    • PLATFORMAMD
    • SOCKETAM4
    • ChipsetB550
    • SUPPORTED MEMORY TYPEDDR4
    • MAX MEMORY SUPPORT128 GB
    • FORM FACTORATX

    Additional Information

    Brand

    MSI

    EAN Code

    4719072728625
