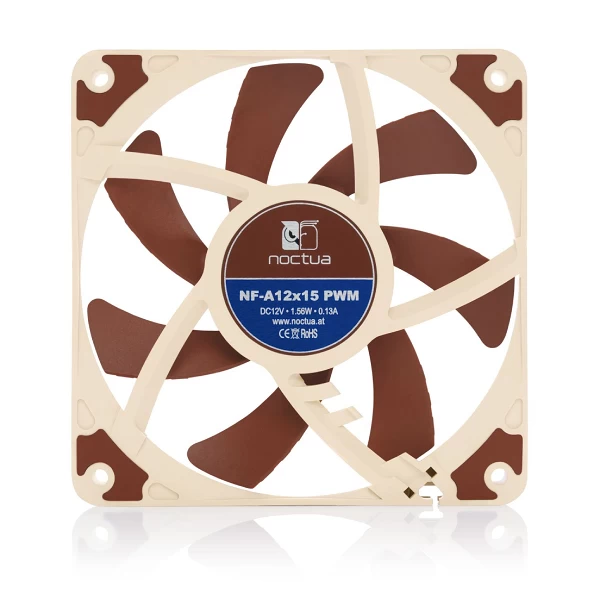

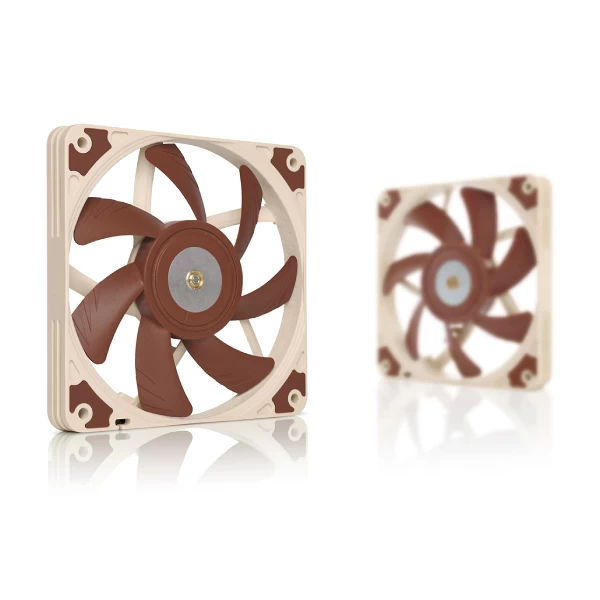

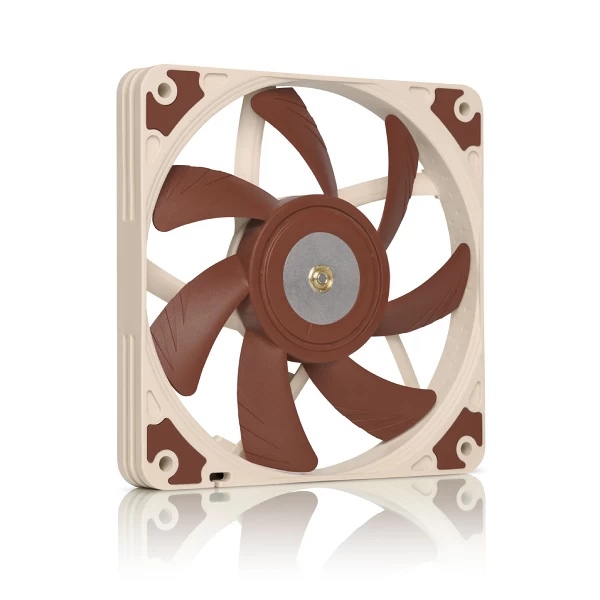

Noctua NF-A12x15 PWM Cabinet Fan (Single Pack)

Noctua NF-A12x15 PWM Cabinet Fan (Single Pack)

Size 120x120x15 mm
Mounting hole spacing 105×105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
SKU: NF-A12X15-PWM

1,899.00

154 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty - As Per Company Norms
  • Free 7-Day returns

Payment Methods:

Description

Noctua NF-A12x15 PWM Cabinet Fan (Single Pack)

15mm slim design
Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.
Metal-reinforced motor hub
With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity.

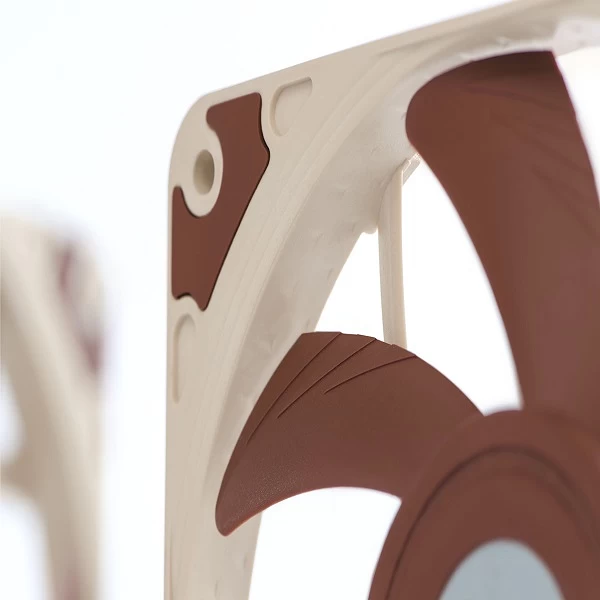

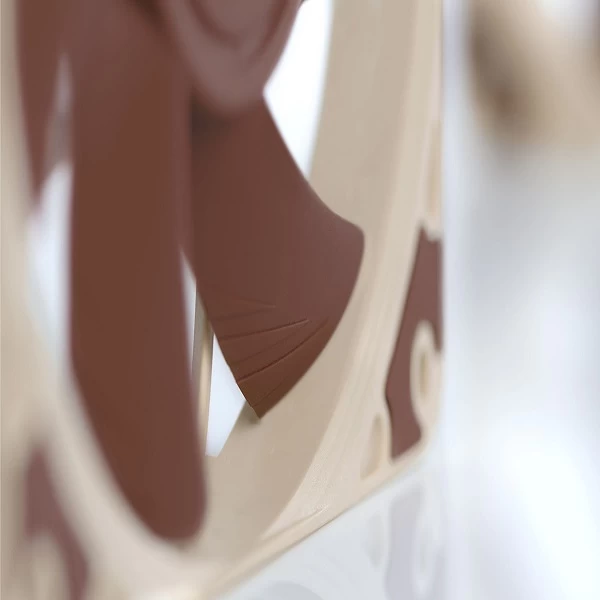

Flow Acceleration Channels
The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow
Low-Noise Adaptor
The NF-A12x15 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1850 to 1400rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1400rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.
SSO2 bearing
The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A12x15 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Specifications

Size120x120x15 mm
Mounting hole spacing105x105 mm
Connector & pin-configuration4-pin PWM
Cable length20cm + 30cm NA-EC1 extension cable
BearingSSO2
Blade geometryA-Series with Flow Acceleration Channels
Frame technologyAAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)1850 RPM
Rotational speed with L.N.A. (+/- 10%)1400 RPM
Min. rotational speed (PWM, +/-20%)450 RPM
Airflow94,2 m³/h
Airflow with L.N.A.70,8 m³/h
Acoustical noise23,9 dB(A)
Acoustical noise with L.N.A.16,8 dB(A)
Static pressure1,53 mm H₂O
Static pressure with L.N.A.0,9 mm H₂O
Max. input power1,56 W
Max. input current0,13 A
Operating voltage12 V
Voltage PWM signal5 V
MTTF> 150.000 h
Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • Fan screws
Warranty6 Years
