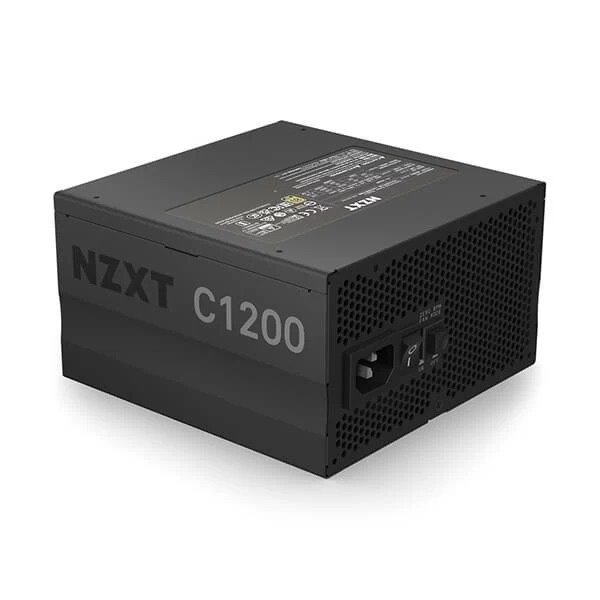

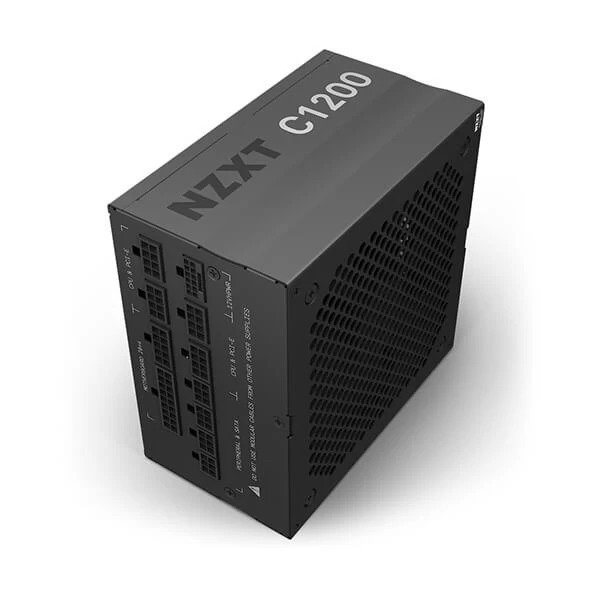

NZXT C1200 ATX 3.0 1200W 80+ Gold Fully Modular SMPS

Overview

Details

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

• 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
• Built and tested with the strictest standards for trouble-free installation and operation
• 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
• Zero Fan Mode stops the fan when under light loads to reduce system noise
• 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
• Constructed with high-quality Japanese 105°C capacitors
• 10-year warranty

Inside the Box

• C1200 Gold1
• 24-Pin ATX Power Cable1
• 4+4-Pin CPU Power Cables1
• 8-Pin CPU Power Cable1
• 6+2-pin PCIe Power Cable2
• 16-Pin (12+4) 12VHPWR PCIe Cable1
• SATA Cables3
• Peripherals Cables1
• 6-32 Screws4
• AC Power Cord1

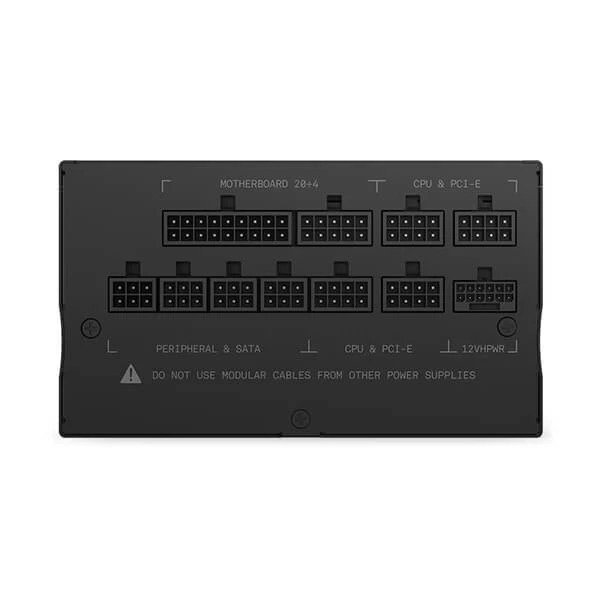

OUTPUT CONNECTORS

• 24-pin ATX power:1

• 4+4-pin CPU power:1

• 8-pin CPU Cable :1

• 6+2-pin PCIe power :2

• 16-pin (12+4) 12VHPWR PCIe Cable:1

• SATA power :8

• Peripherals :4

CABLE SPECS

• 24-pin ATX power:600 mm, Nylon sleeving

• 4+4-pin CPU power:700 mm, Nylon sleeving

• 8-Pin CPU Power Cable:700mm, Nylon sleeving

• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

• 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving

• SATA power:500 + 150 mm

• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 – 240Vac:14A-7A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V:22A (120W)

• +12V:100A (1200W)

• -12V:0.3A (3.6W)

• 5Vsb:3A (15W)

• Total:1200W

OPERATION

• PF Correction:Active @0.96

• MTBF:100,000 hours

• Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

• Rating:80 Plus Gold

• 20% loading:90.97% @115Vac

• 50% loading:91.55% @115Vac

• 100% loading:88.51% @115Vac

FAN SPECS

• Dimensions:135 x 135 x 25 mm

• Speed:0-2300 ± 10% RPM

• Airflow:93.02 CFM (Tpy.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)
