Description

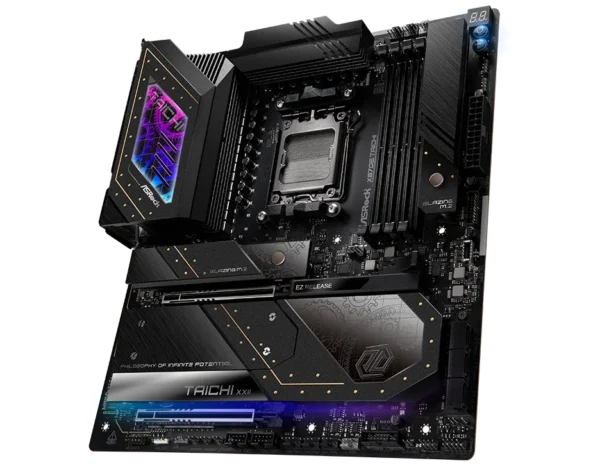

ASRock X870E Taichi AMD AM5 Motherboard features top-tier hardware spec, robust power design, USB4 Type-C, and DIY-friendly functionality. It’s built for high-end gamers, offering luxury aesthetics and powerful performance.

Name: Buy ASRock X870E Taichi AMD AM5 Motherboard Online
SKU: X870E Taichi
Price: 43899.00 INR
Availability: OutOfStock

PHILOSOPHY OF INFINITE POTENTIAL

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

24+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Hi-Density Power Connector

CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.

Specification

Unique FeatureSuperb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
– 5G LAN, 802.11be Wi-Fi 7 Module
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
CPU- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
– Supports ASRock Hyper BCLK Engine* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)
Chipset- AMD X870E
Memory- Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules**Please refer to Memory Support List on ASRock’s website for more information.
BIOS- 256Mb AMI UEFI Legal BIOS with GUI support
GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
Audio- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Rear Outputs)
– ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
– Nahimic Audio
LAN- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
– Realtek RTL8126
Wireless LAN- 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
– Supports 2.4GHz/5GHz/6GHz* frequency band
– Supports 160MHz channel bandwidth with 6GHz* frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
SlotsCPU:
– 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™* PCIE1 and PCIE2 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks
StorageCPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 6 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USBCPU:
– 2 x USB4 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear) Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 3 x USB 3.2 Gen2 Type-A (Rear)
– 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection
Connector- 3 x Thermistor Cable Headers
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O- 2 x Antenna Ports
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB4 Type-C Ports (40 Gb/s)*
– 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
– 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories- 4 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 1 x ARGB Splitter Cable
– 3 x Thermistor Cables
Form Factor- EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
– 8 Layer PCB
– 2oz Copper PCB
OS- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications- FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
