Asrock Z790 LiveMixer Intel Z790 ATX Motherboard
Z790
Z790
Z790
Z790
Z790
Click to enlarge
    Asrock Z790 LiveMixer Intel Z790 ATX Motherboard

    Asrock Z790 LiveMixer Intel Z790 ATX Motherboard

    • Supports 14th, 13th & 12th Gen Intel Core Processors
    • 14+1+1 Phase Power Design, SPS for VCore+GT
    • 4 x DDR5 DIMMs, supports up to 7200+(OC)
    SKU: Z790 LiveMixer
    Brands: ASRoCK

    Original price was: ₹39,999.00.Current price is: ₹27,299.00.

    Out of stock

    Out of stock

    Compare
    Add to wishlist
    170 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier
    • Shiprocket
    • Delhivery_Logo_(2019)-svg

    3 - 4 Working Days With Express

    5 - 6 Working Days With Surface
    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    Asrock Z790 LiveMixer Intel Z790 ATX Motherboard

    Overview :

    • Supports 13th Gen & 12th Gen Intel® Coreâ„¢ Processors
    • 14 1 1 Phase Power Design, SPS for VCore GT
    • 4 x DDR5 DIMMs, supports up to 7200 (OC)
    • 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
    • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
    • 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
    • 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
    • Realtek 2.5G LAN

    Specification :

    Model
    Brand ASRock
    Model Z790 LiveMixer
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700).
    Supports Intel Hybrid Technology
    Supports Intel Turbo Boost Max 3.0 Technology
    Supports Intel Thermal Velocity Boost (TVB)
    Supports Intel Adaptive Boost Technology (ABT)
    Chipsets
    Chipset Intel Z790
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard Supports DDR5 non-ECC, un-buffered memory up to 6800 (OC)*
    1DPC 1R Up to 6800 MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 5600 MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively.
    Supports Intel Extreme Memory Profile (XMP) 3.0
    * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    * If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
    * Supports NVMe SSD as boot disks
    Supports AMD CrossFire
    PCI Express 4.0 x16 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode*
    PCI Express x1 1 x PCIe 3.0 x1 Slot (PCIE2)
    Storage Devices
    SATA 6Gb/s 4 x SATA3 6.0 Gb/s Connectors
    M.2 5 x M.2 (Key M) 1 x M.2 (Key E)
    CPU:
    1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Supports Intel Volume Management Device (VMD)
    * Supports NVMe SSD as boot disks
    * If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
    * Either M2_1 or M2_2 can be used at a time.
    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
    Onboard Audio
    Audio Chipset Realtek ALC897 Audio Codec
    Nahimic Audio
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Dragon RTL8125BG
    Supports Dragon 2.5G LAN Software
    Smart Auto Adjust Bandwidth Control
    Visual User Friendly UI
    Visual Network Usage Statistics
    Optimized Default Setting for Game, Browser, and Streaming Modes
    User Customized Priority Control
    Max LAN Speed 2.5Gbps

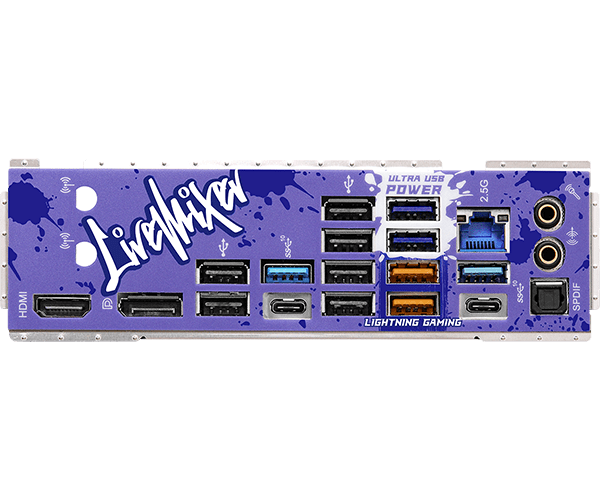

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Points
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out Port
    2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
    4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.)
    6 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    1 x Line Out Jack (Gold Audio Jack)
    1 x Microphone Input Jack (Gold Audio Jack)
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    Other Connectors 1 x eDP Signal Connector
    1 x SPI TPM Header
    1 x Power LED and Speaker Header
    1 x RGB LED Header*
    3 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x Front Panel Audio Connector
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
    ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0″ x 9.6″
    Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    Windows Compatibility
    Windows 11 Supported
    Packaging
    Package Contents Accessories
    1 x User Manual
    2 x SATA Data Cables
    5 x Screws for M.2 Sockets

    Additional Information

    Brand

    ASRoCK
    Color

    Black
    Product Type

    Motherboard
    Memory Series

    DDR5
    Motherboard Size

    ATX
    Platform

    Intel
    Socket

    LGA 1700
    EAN Code

    4710483940897
