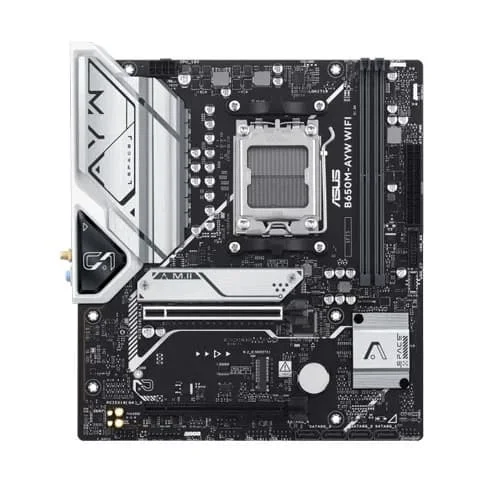

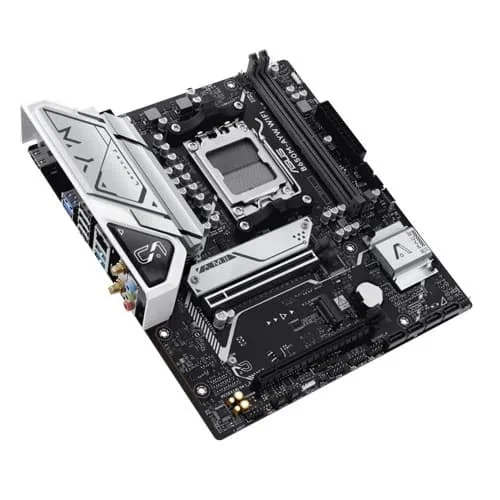

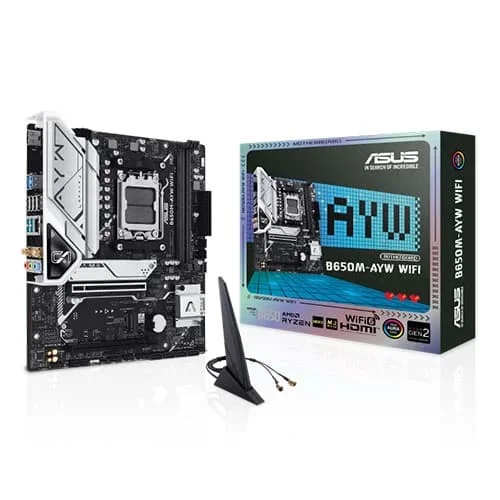

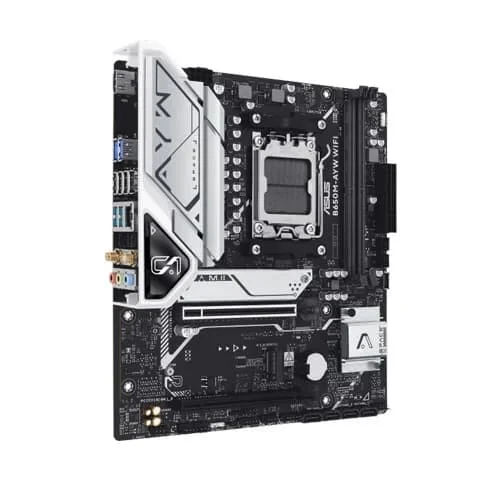

Asus B650M-AYW WIFI M-ATX Motherboard

36 People watching this product now!

Asus B650M-AYW WIFI M-ATX Motherboard

Original price was: ₹17,999.00.Current price is: ₹12,020.00.

1 in stock

Pickup

Pick up from Micro Center India

Same-day order before 1:30 PM

Free
Courier Delivery

Courier Delivery

Delivered to your specified address

3–5 Days
Courier Partners
Blue Dart Express Delhivery Logistics DTDC Courier Shiprocket
3–4 Working Days with Express
5–6 Working Days with Surface

Payment Methods:

Asus B650M-AYW WIFI M-ATX Motherboard

Description

Asus B650M-AYW WIFI M-ATX Motherboard

  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AM5 Socket for AMD Ryzen™ Desktop Processors
  • Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Specification

Motherboard
Platform AMD
Socket AM5
Cpu Type Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset B650
Memory Speed up to 8000+
Max Memory Support 96 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics Port 1 x HDMI
Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
Wireless Networking WiFi 6

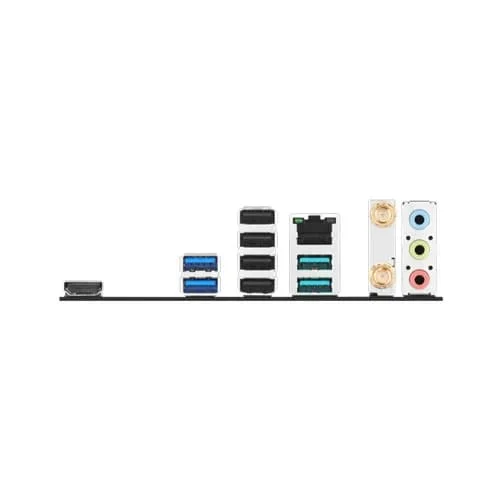

Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connector Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin System Panel header
Form Factor Micro-ATX
Warranty 3 Years
Note Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
