    Asus Prime H770-PLUS

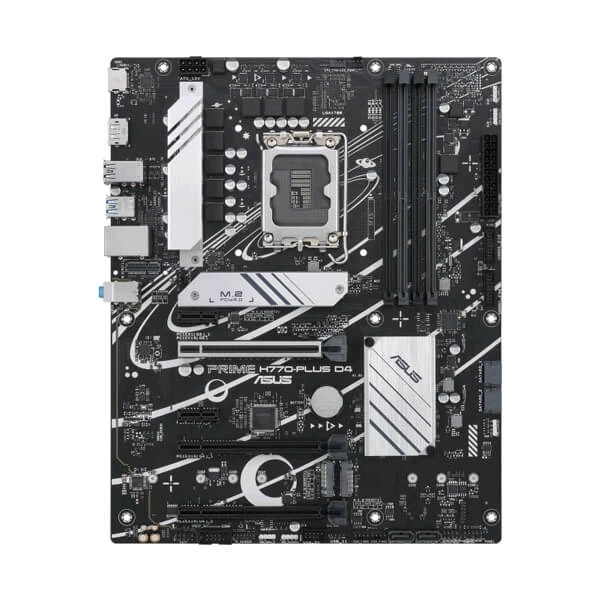

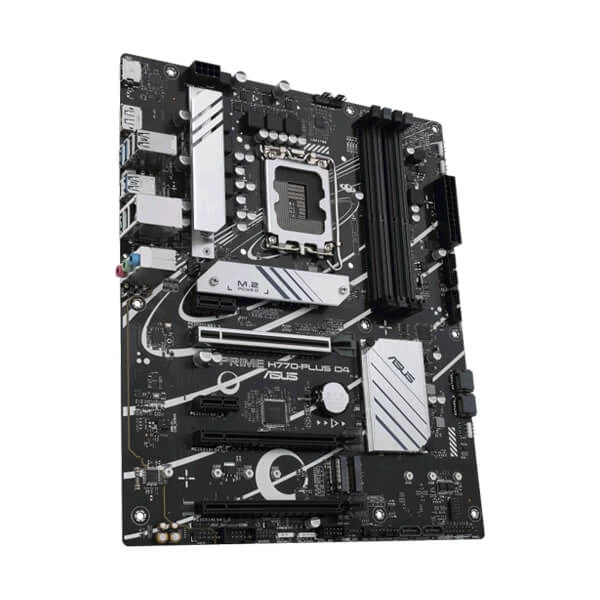

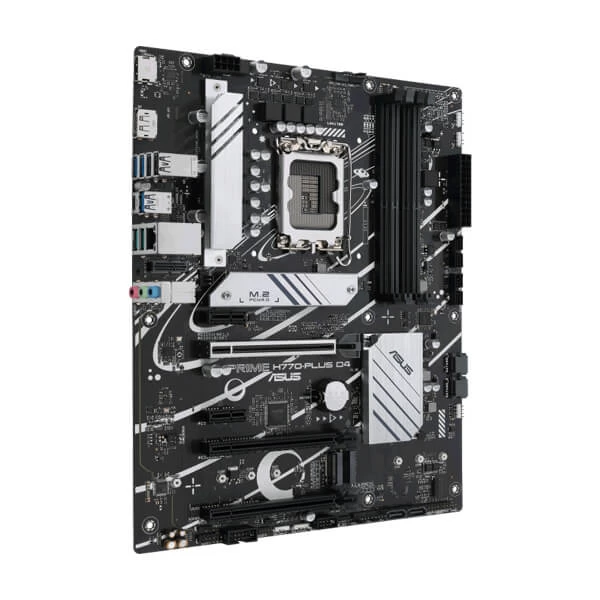

    Asus Prime H770-PLUS D4 Motherboard



    • PLATFORMINTEL
    • SOCKETLGA1700
    • ChipsetH770
    • SUPPORTED MEMORY TYPEDDR4
    SKU: PRIME-H770-PLUS-D4
    Brands: Asus

    Original price was: ₹21,999.00.Current price is: ₹16,909.00.

    Out of stock

    Out of stock

    Compare
    Add to wishlist
    22 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    Free
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier

    3 - 4 Working Days With Express
    5 - 6 Working Days With Surface

    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    Asus Prime H770-PLUS D4 Motherboard

    Features:

    • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderboltâ„¢ (USB4®) header support
    • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

    All-Around Energy Efficiency

    The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

    M.2 Heatsink

    M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

    Three M.2 Slots (up to 64 Gbps)

    PRIME H770-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

    DDR4 Support

    Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

    Specifications:

    Model Number PRIME H770-PLUS D4
    CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
    Chipset Intel® H770 Chipset
    Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    Graphics 1 x DisplayPort
    1 x HDMI® port
    Expansion Slots Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® H770 Chipset
    2 x PCIe 4.0 x16 slots (support x4 mode)
    2 x PCIe 3.0 x1 slots
    Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® H770 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    Ethernet 1 x Realtek 2.5Gb Ethernet
    Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)
    USB Rear USB (Total 8 ports)
    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 3 additional USB 2.0 ports
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers

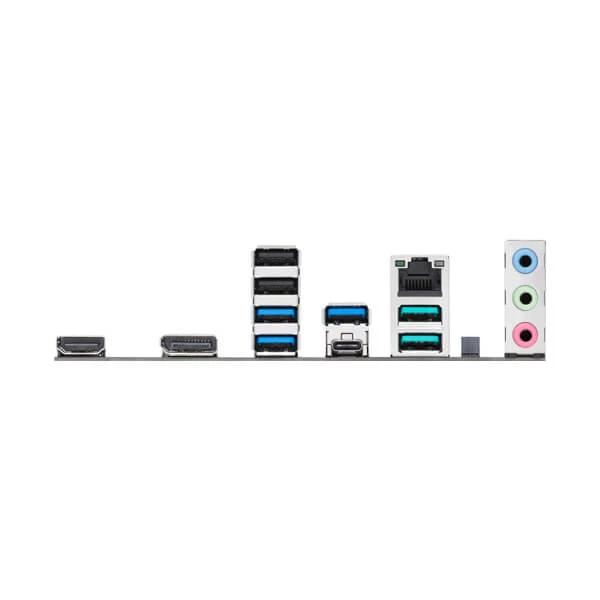

    Back Panel I/O Ports 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Vertical M.2 slot (Key E)
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    Internal I/O Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 3 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    2 x Aura RGB headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    Aura Sync
    – Aura RGB headers
    – Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    AI Suite 3
    – DIGI+ VRM
    – PC Cleaner
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
    Manageability WOL by PME, PXE

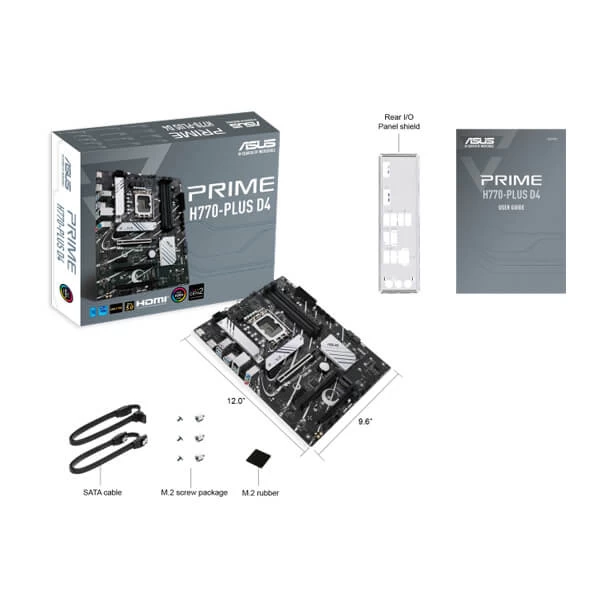

    Accessories Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 Rubber Package
    2 x Screw Packages for M.2 SSD
    Documentation
    1 x User guide
    Operating System Windows® 11, Windows® 10 64-bit
    Form Factor ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
    Warranty 3 Years
    Note *** Features, Price, Specifications are subject to change without notice.



    Additional Information

    Brand

    Asus
    Color

    Black
    Product Type

    Motherboard
    Memory Series

    DDR4
    Socket

    LGA 1700
    Motherboard Series

    Asus Prime
    Warranty

    3 Years
    Weight

    1 KG
    EAN / UPC Code

    4711081963578
