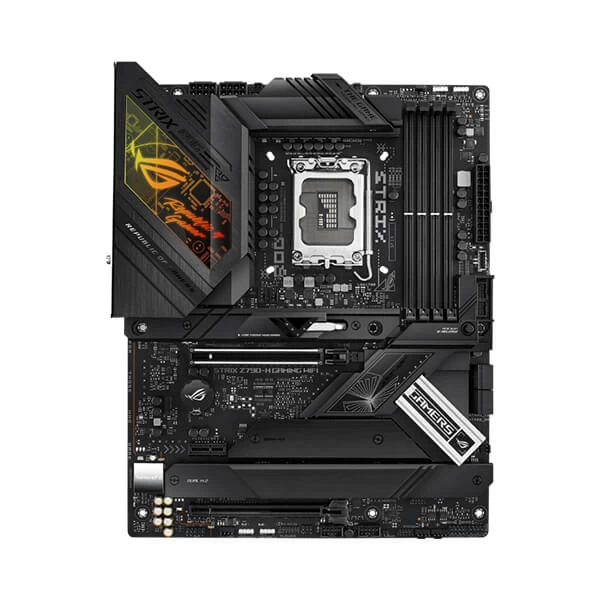

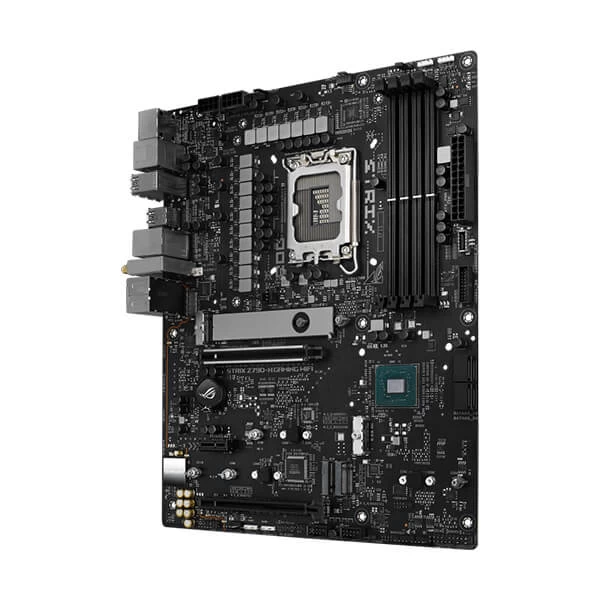

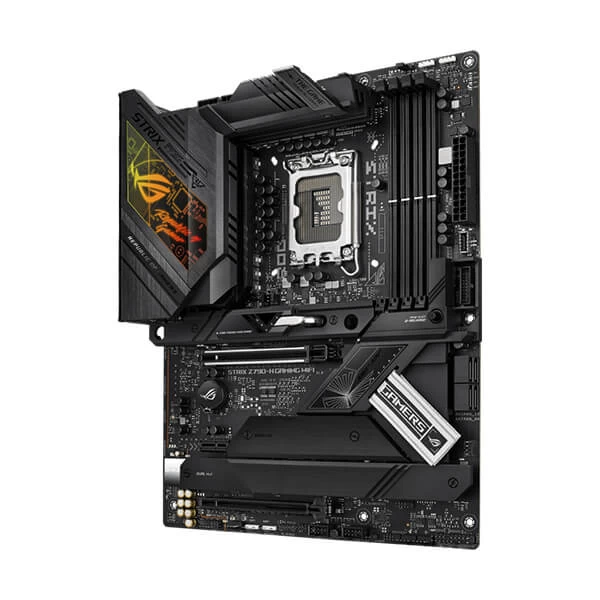

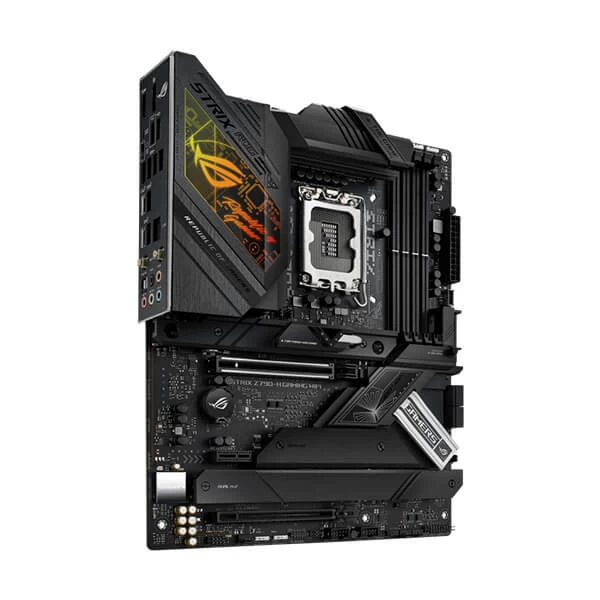

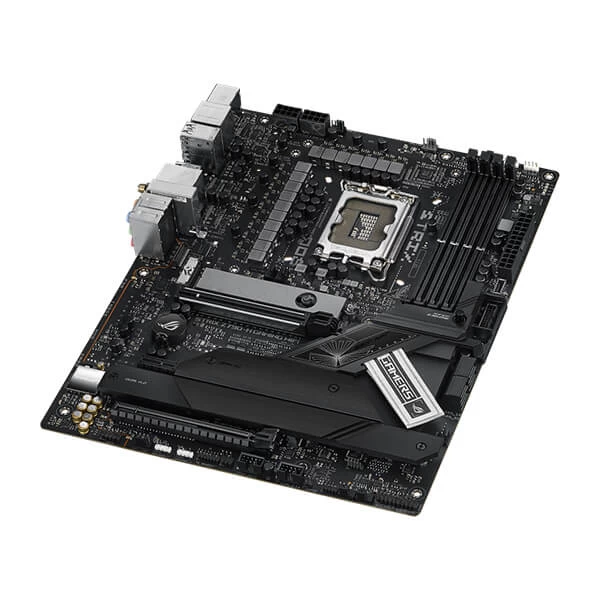

Asus ROG Strix Z790-H Gaming WIFI Motherboard features Intel 13th and 12th Gen processors room for higher boosts.

Features:

Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.

PCIE SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLEAR CMOS

The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FlashBack

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

PCIe 5.0

The Strix Z790-H adds PCIe 5.0 support to its arsenal with an x16 expansion slot that’s protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.

Four PCIe 4.0 M.2 slots are covered with substantial heatsinks to dispatch the heat of high-performance SSDs.

POWER ARCHITECTURE

16 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

PROCOOL II POWER CONNECTORS

ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

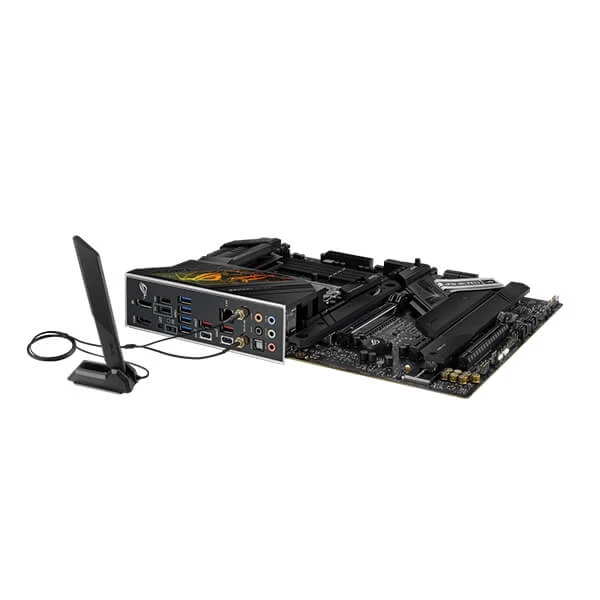

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

Intel 2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

USB 3.2 GEN 2X2

The Strix Z790-H comes loaded with two USB 3.2 Gen 2×2 Type-C® connectors for speedy data transfers up to 20 Gbps.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-H implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

UNDENIABLY ROG STRIX

Diagonal slats, brushed aluminum, and bold RGB accents have become hallmarks of the ROG aesthetic, and the Strix Z790-H bears all of them with pride.

OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

COOLER COMPATIBILITY

The ROG Strix Z790-H bears the same LGA 1700 socket as Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.

THE ROG STRIX ECOSYSTEM AWAITS

Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

Specification:

• PLATFORMINTEL
• SOCKETLGA1700
• ChipsetZ790
• SUPPORTED MEMORY TYPEDDR5
• MAX MEMORY SUPPORT192 GB
• FORM FACTORATX
