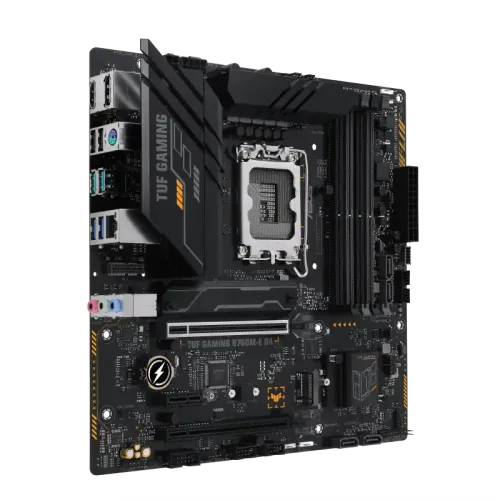

tuf gaming b760m e d4 02 500x500 1

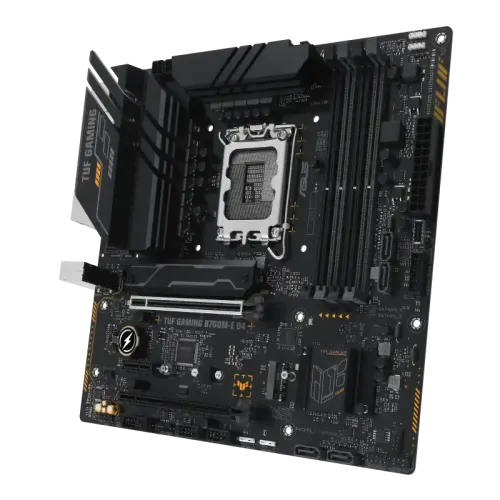

tuf gaming b760m e d4 03 500x500 1

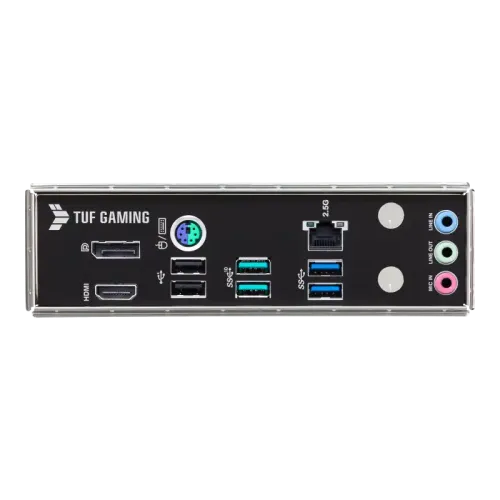

tuf gaming b760m e d4 04 500x500 1
Click to enlarge
    Asus TUF GAMING B760M-E D4

    Asus TUF GAMING B760M-E D4 Motherboard

    • Model: TUF GAMING B760M-E D4
    • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
    • Supported Memory: 4 x DIMM, Max. 128GB, DDR4 5333(OC)
    • Graphics Output: 1 x DisplayPort, 1 x HDMI
    • Features: 1 x Realtek 2.5Gb Ethernet
    SKU: Tuf-G-B760M-E-D4
    Brands: Asus

    Original price was: ₹21,999.00.Current price is: ₹16,230.00.

    Out of stock

    Out of stock

    Compare
    Add to wishlist
    159 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    Free
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier

    3 - 4 Working Days With Express
    5 - 6 Working Days With Surface

    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    Asus TUF GAMING B760M-E D4  Motherboard

    Supported CPU Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*

    Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
    Chipset Intel B760 Chipset
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Form Factor mATX Form Factor

    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

    – Supports: Jack-detection,

    Multi-streaming, Front Panel Jack-retasking

    – Supports up to 24-Bit/192 kHz playback”

    Audio Features

    – Audio Shielding

    – Premium audio capacitors

    – Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Expansion Slots
    PCI Intel 13th & 12th Gen Processors

    1 x PCIe 4.0 x16 slot

    Intel B760 Chipset

    1 x PCIe 4.0 x16 slot (supports x4 mode)

    1 x PCIe 4.0 x1 slot
    Memory
    Type DDR4
    Slots 4 x DIMM
    Supported Memory 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel Extreme Memory Profile (XMP)

    OptiMem II
    Maximum Memory Max. 128GB
    Graphics
    Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.)

    1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
    Connector & Ports
    HDMI 1 x HDMI
    Display Port (s) 1 x DisplayPort
    USB (s) Rear USB (Total 6 ports)

    2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A)

    2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)*

    2 x USB 2.0 ports (2 x Type-A)

    Front USB (Total 7 ports)

    1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*

    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
    LAN Port (s) 1 x Realtek 2.5Gb Ethernet

    TUF LANGuard
    Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*

    * Wi-Fi module is sold separately.
    Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

    Intel 13th & 12th Gen Processors

    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    Intel B760 Chipset

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    4 x SATA 6Gb/s ports
    RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Audio 3 x Audio jacks
    Internal I/O Ports Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    2 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage related

    2 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x AURA RGB header

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (AAFP)

    1 x 20-3 pin System Panel header with Chassis intrude function

    1 x S/PDIF Out header
    Others
    Special Features ASUS TUF PROTECTION

    – DIGI+ VRM (- Digital power design with DrMOS)

    – ESD Guards

    – TUF LANGuard

    – Overvoltage Protection

    – SafeSlot Core+

    – Stainless-Steel Back I/O

    ASUS Q-Design

    – M.2 Q-Latch

    – Q-DIMM

    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    – Q-Slot

    ASUS Thermal Solution

    – Flexible M.2 heatsink

    – VRM heatsink design

    ASUS EZ DIY

    – ProCool

    – SafeDIMM

    AURA Sync

    – AURA RGB header

    – Addressable Gen 2 headers
    Bundled Software ASUS Exclusive Software

    Armoury Crate

    – AURA Creator

    – AURA Sync

    – Fan Xpert 2+

    – Power Saving

    – Two-Way AI Noise Cancelation

    AI Suite 3

    – DIGI+ VRM

    – PC Cleaner

    TUF GAMING CPU-Z

    DTS Audio Processing

    Norton 360 for Gamers (60 Days Free Trial)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    – ASUS CrashFree BIOS 3

    – ASUS EZ Flash 3

    – ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty 3 years

    Additional Information

    Brand

    Asus
    Color

    Black
    Product Type

    Motherboard
    Memory Series

    DDR4
    Motherboard Series

    Asus TUF
    Motherboard Size

    ATX
    Platform

    Intel
    Socket

    LGA 1700
    Chipset

    B760
    EAN Code

    4711387131404
