Gigabyte Aorus P750W 80 Plus Gold SMPS

  • Fully Modular Design
  • High quality 100% Japanese Capacitors
  • 135mm 2 ball bearing smart fan with fan stop function
  • 80 PLUS Gold certified: above 90% efficiency at 50% load
  • Single +12V rail
  • OCP/OTP/OVP/OPP/UVP/SCP protection
SKU: GP-AP750GM

6,890.00

168 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty - As Per Company Norms
  • Free 7-Day returns

Payment Methods:

Description

Gigabyte Aorus P750W 80 Plus Gold SMPS, Fully Modular Design, High quality 100% Japanese Capacitors, Single + 12V rail. Best Price

Features

  • Fully Modular Design
  • High quality 100% Japanese Capacitors
  • 135mm 2 ball bearing smart fan with fan stop function
  • 80 PLUS Gold certified: above 90% efficiency at 50% load
  • Single +12V rail
  • OCP/OTP/OVP/OPP/UVP/SCP protection

High Quality 100% Japanese Capacitors

All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

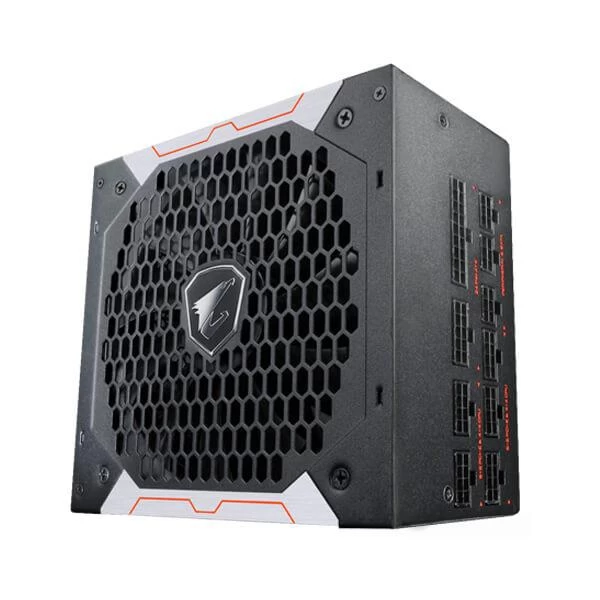

135mm Smart Fan

Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.

80 Plus Gold Certified

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

Single +12V Rail

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Protection

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Specifications

ModelGP-AP750GM
TypeIntel Form Factor ATX 12V v2.31
PFCActive PFC (>0.9 typical)
Input Voltage100-240 Vac (full range)
Input Current10A
Input Frequency47-63 Hz
Output Capacity
750W
Dimension
150 x 160 x 86mm
Fan Type
135mm Double ball bearing fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100ms ~ 150ms
Hold Up Time
> 16m sec at full load (115V)
Cable Type
Flat, All black

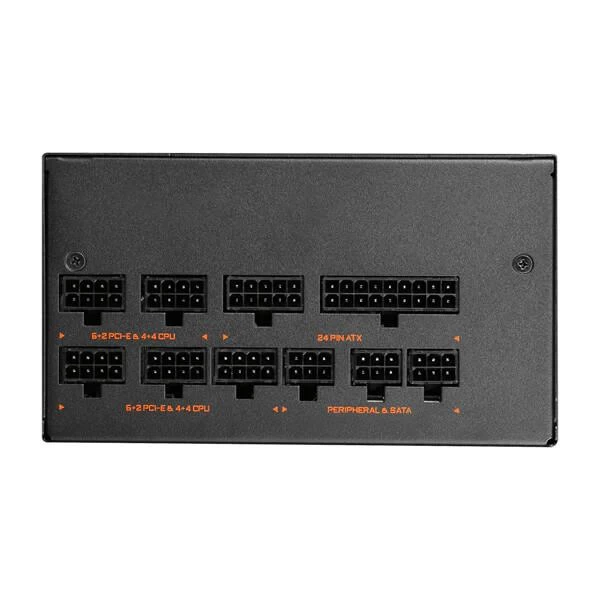

Connectors
ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
Warranty10 Years
Note***Features, Price and specifications are subject to change without notice.
  • Wattage750 WATT
  • Certification80+ GOLD
  • PCIe Connector (6+2)4
  • SATA Connector6
  • Peripheral (4-Pin)2
