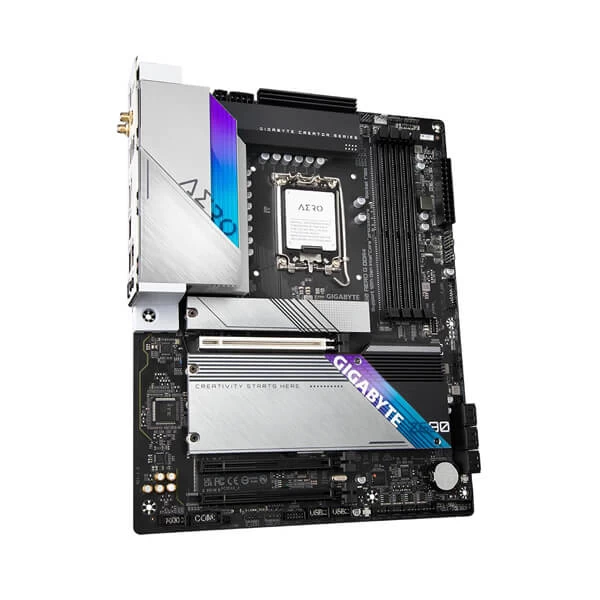

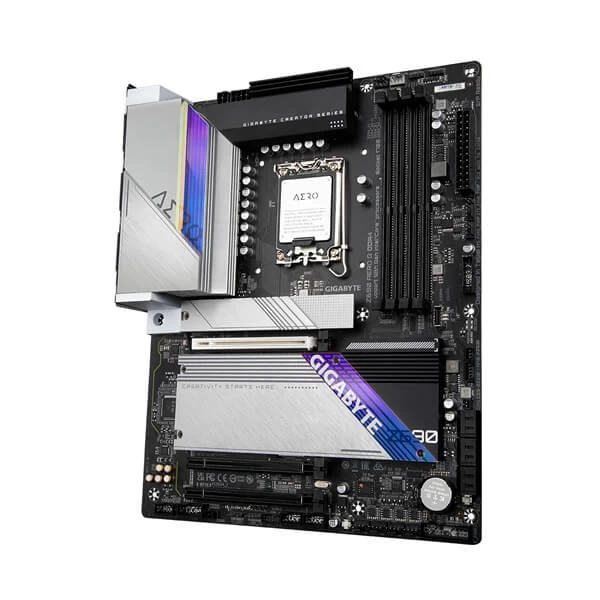

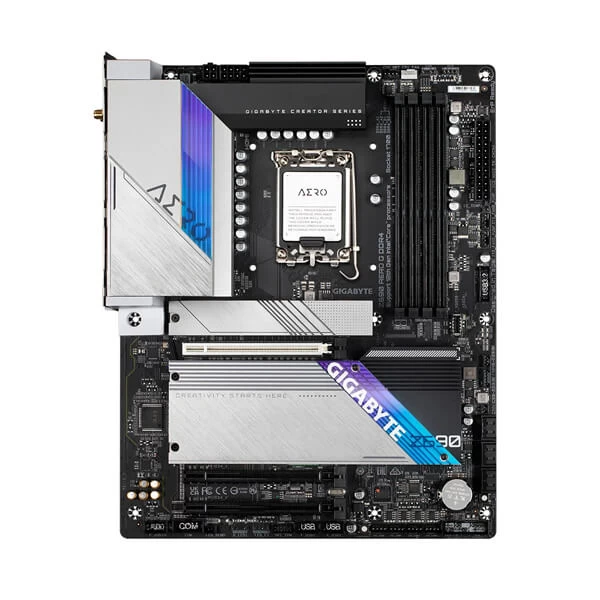

Gigabyte Z690 Aero G DDR4 Motherboard

• LGA1700 socket: Support for 12th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors
• L3 cache varies with CPU

• Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x USB Type-C^® port, supporting USB Type-C^® and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz

  * Support for drawing tablets and 20V@3A of power delivery.

  * Support for DisplayPort 1.2 version and HDCP 2.3

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

  * Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU or graphics card support.)

• Realtek^® ALC4080 CODEC
• High Definition Audio
• 2-channel analog output
• Support for S/PDIF Out

  7.1-channel digital signals

* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  * Actual data rate may vary depending on environment and equipment.

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)

  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  (The PCIEX16 slot conforms to PCI Express 5.0 standard.)

• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

  (The PCIEX4 slots conform to PCI Express 3.0 standard.)

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

• 2 x USB Type-C^® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
• 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper

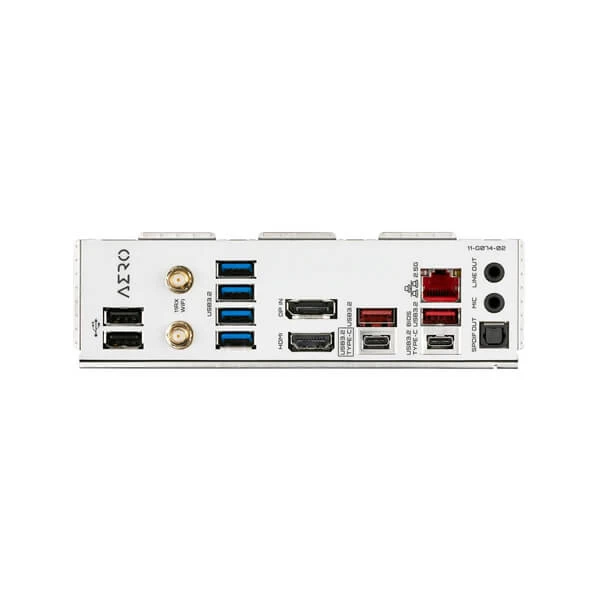

• 2 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 4 x USB 3.2 Gen 1 ports
• 1 x DisplayPort In port
• 1 x HDMI port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
• 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center

  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  @BIOS

  EasyTune

  Fast Boot

  Game Boost

  ON/OFF Charge

  RGB Fusion

  Smart Backup

  System Information Viewer

• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton^® Internet Security (OEM version)
• cFosSpeed

• Support for Windows 10 64-bit
