Description

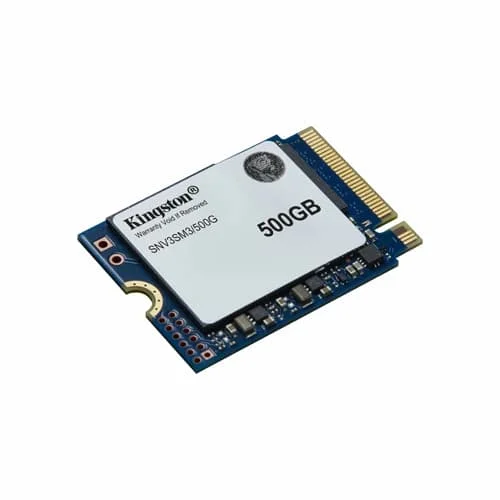

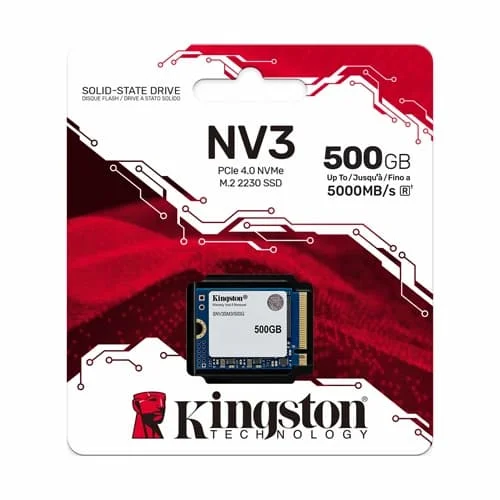

Kingston NV3 500GB PCIe Gen 4.0 NVMe SSD – SNV3SM3/500G
Efficient, Compact Performance for Modern Systems
The Kingston NV3 PCIe 4.0 NVMe SSD is a powerful and efficient storage solution designed for next-generation systems, offering an ideal combination of performance, size, and value. Powered by a Gen 4×4 NVMe controller, it delivers read/write speeds up to 5,000/3,000MB/s (for the 500GB model), enabling faster boot times, quicker application loading, and improved overall responsiveness.
Its compact M.2 2230 form factor makes it a perfect fit for ultra-portable devices, including laptops, mini PCs, and handheld gaming consoles. The NV3 also operates with lower power consumption and reduced heat, making it a smart upgrade for energy-efficient builds. With up to 160TBW endurance and Kingston’s trusted reliability, this SSD is built to last.
Key Features
-
PCIe 4.0 NVMe Performance
Delivers high-speed performance with up to 5,000MB/s read and 3,000MB/s write (500GB model). -
Compact M.2 2230 Form Factor
Designed for space-constrained devices like ultra-thin laptops and portable gaming systems. -
Low Power, Low Heat
Optimized for energy efficiency and cooler operation without sacrificing speed. -
High-Endurance Storage
Up to 160TBW of endurance for long-term reliability. -
Kingston Reliability
Backed by a 5-year limited warranty and free technical support.
Technical Specifications
Specification | Details |
---|---|
Product Name | Kingston NV3 PCIe Gen 4.0 NVMe SSD |
Model Number | SNV3SM3/500G |
Form Factor | M.2 2230 |
Interface | PCIe 4.0 x4 NVMe |
Capacity | 500GB |
Sequential Read Speed | Up to 5,000 MB/s |
Sequential Write Speed | Up to 3,000 MB/s |
NAND Flash | 3D NAND |
Endurance (TBW) | 160TB (500GB model) |
Operating Temperature | 0°C to 70°C |
Storage Temperature | -40°C to 85°C |
Dimensions | 22mm x 30mm x 2.3mm |
Weight | 2.6g (500GB model) |
Vibration (non-operating) | 20G (10–1,000Hz) |
MTBF | 2,000,000 hours |
Warranty/Support | 5-Year Limited Warranty with Free Technical Support |
