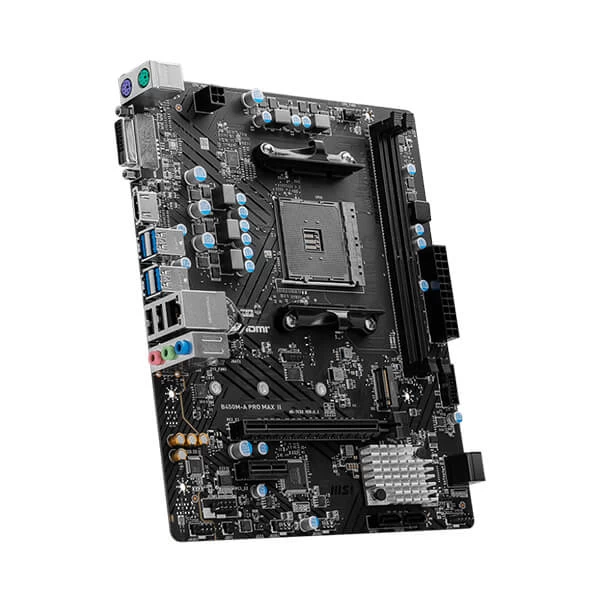

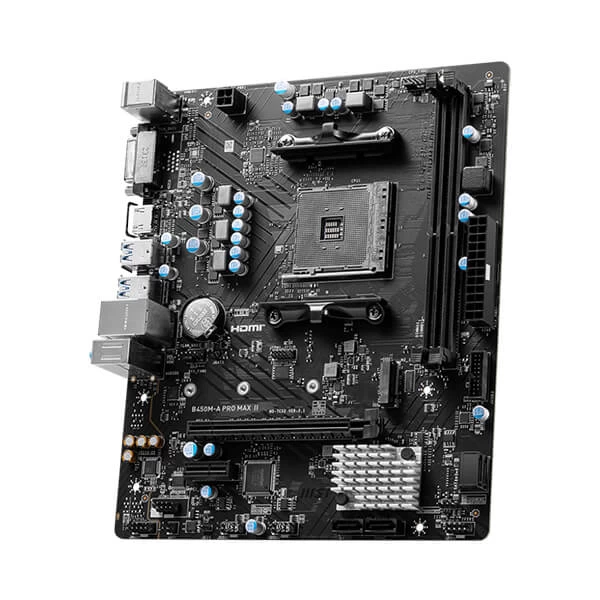

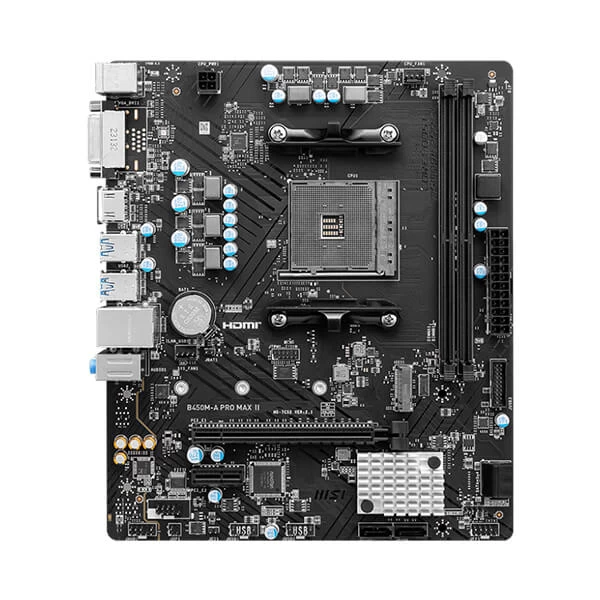

MSI B450M-A Pro Max II Motherboard



  • PLATFORMAMD
  • SOCKETAM4
  • ChipsetB450
  • SUPPORTED MEMORY TYPEDDR4
  • MAX MEMORY SUPPORT64 GB
  • FORM FACTORM-ATX
SKU: B450M-A-PRO-MAX-II
Brands: MSI

Original price was: ₹8,450.00.Current price is: ₹4,299.00.

In stock

In stock

Compare
Add to wishlist
115 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • Blue Dart
  • Delhivery Courier
  • DTDC Courier

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

  • Warranty - As Per Company Norms
  • Free RMA Support

Payment Methods:

Description

MSI B450M-A Pro Max II Motherboard is an AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Gen1.

Features:

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Specification:

Model B450M-A PRO MAX II
Chipset AMD B450
CPU SUPPORT Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
Socket AM4
Memory
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
  • Supports Dual-Channel mode
  • Supports non-ECC, UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Onboard Graphics
  • 1x HDMI™

Support HDMITM 1.4, maximum resolution of 4K 24Hz*

  • 1x DVI

Support DVI-D, maximum resolution of 1920×1200 60Hz
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8125 2.5Gbps LAN controller
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports

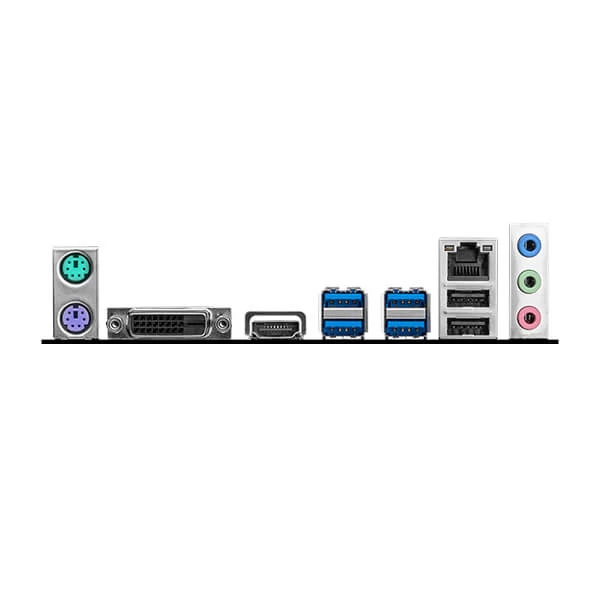

BACK PANEL PORTS
  • Keyboard/Mouse
  • DVI-D
  • HDMI™
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Audio connectors
  • USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) mATX
200mmx236mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMAMD
  • SOCKETAM4
  • ChipsetB450
  • SUPPORTED MEMORY TYPEDDR4
  • MAX MEMORY SUPPORT64 GB
  • FORM FACTORM-ATX

Additional Information

Brand

MSI
EAN Code

4711377125291
Weight

1 KG
Product Type

Normal
Color

Black
Memory Series

DDR4
Motherboard Size

mATX
Socket

AM4
Warranty

3 Years
