Description

MSI B760M Gaming WIFI Motherboard MSI B760M Gaming WIFI Motherboard – Performance, Connectivity, and Reliability

The MSI B760M Gaming WIFI Motherboard is a powerhouse built for gamers and PC enthusiasts who demand exceptional performance, seamless connectivity, and robust reliability. Featuring the Intel B760 chipset, this b760m motherboard supports 12th and 13th Gen Intel Core processors, making it an ideal choice for modern gaming rigs.

Cutting-Edge Features of the MSI B760M Gaming WIFI

1. Superior Processor Compatibility:
   Designed to work seamlessly with Intel’s latest 12th and 13th Gen processors, the MSI B760M motherboard ensures you can unleash the full potential of your CPU.
2. DDR5 Memory Support:
   Experience unmatched performance with support for DDR5 memory, providing faster data rates and enhanced stability. This msi b760m gaming wifi motherboard ensures your system remains ahead of the curve.
3. Integrated WiFi 6 and LAN Connectivity:
   Stay connected with lightning-fast WiFi 6 for wireless gaming and streaming. The motherboard also features a high-speed LAN port for stable wired connections, catering to diverse networking needs.
4. Robust Cooling Design:
   The B760M gaming motherboard comes with advanced cooling solutions, including heatsinks and fan headers, ensuring your system stays cool even during intense gaming sessions.
5. PCIe 5.0 Support:
   With PCIe 5.0 compatibility, the motherboard supports the latest GPUs and storage devices, delivering unparalleled gaming and productivity performance.

Key Specifications:

• Chipset: Intel B760
• Memory: 4x DDR5 slots, up to 128GB
• Storage: Multiple M.2 slots and SATA ports for versatile storage options
• Graphics Support: PCIe 5.0 slot for cutting-edge GPUs
• Connectivity: WiFi 6, high-speed LAN, USB 3.2 Gen 2 ports

Why Choose the MSI B760M Gaming WIFI Motherboard?

The MSI B760M Gaming WIFI Motherboard combines high-performance features with exceptional build quality, making it a reliable choice for both gaming and productivity. Whether you’re assembling a compact gaming PC or upgrading your current setup, this msi b760m motherboard ensures future-proofing and a seamless experience.

Upgrade to the MSI B760M Gaming WIFI today and redefine your gaming performance!

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8125B 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

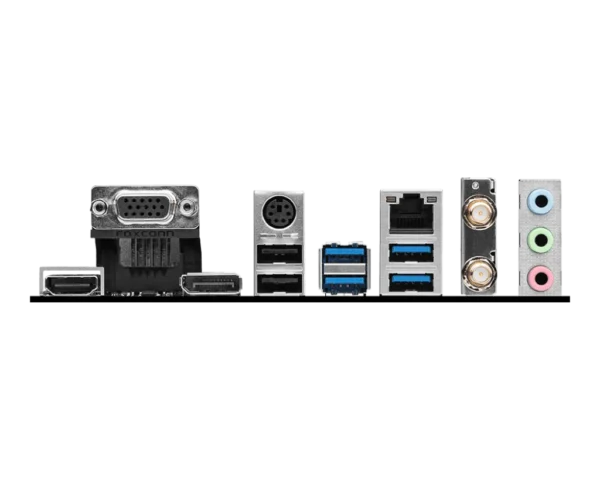

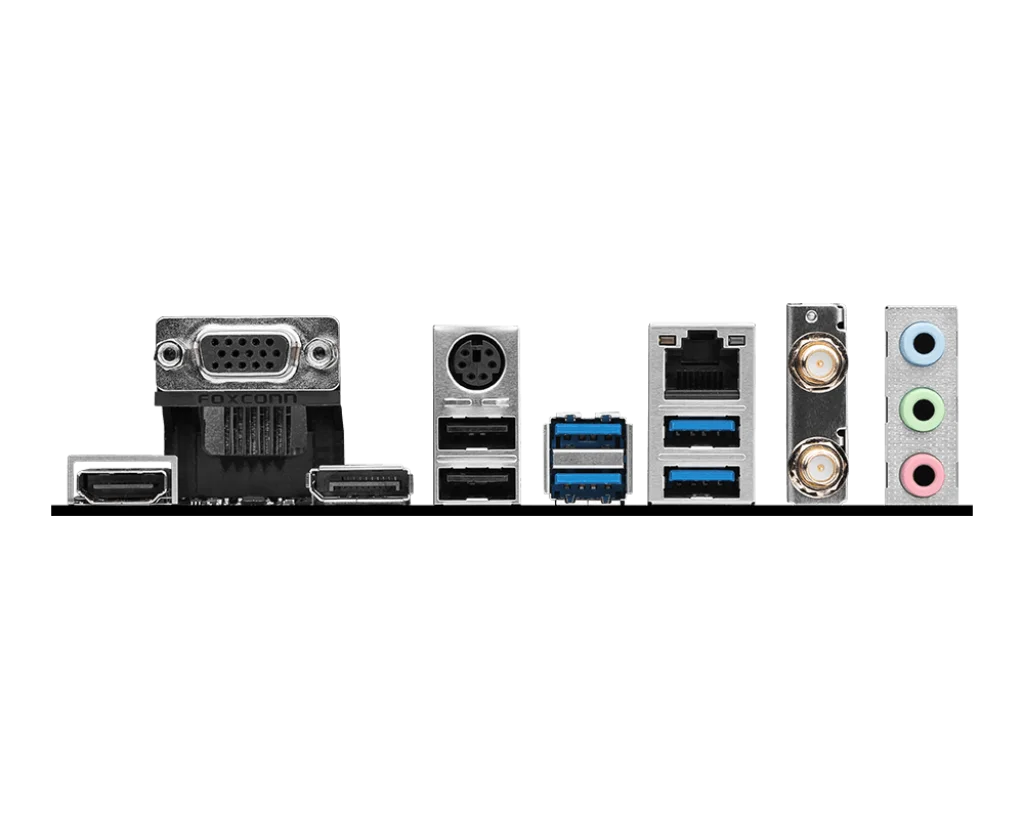

BACK PANEL PORTS	VGA Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info	mATX 220mmx243.84mm
