    B860M

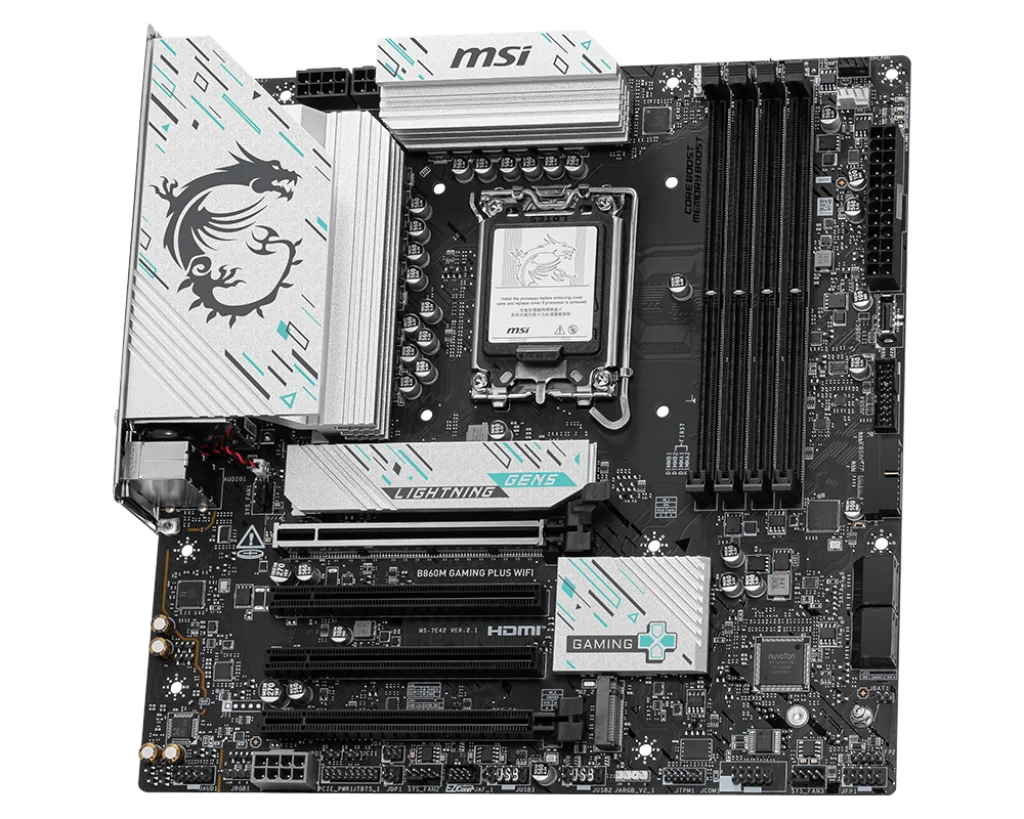

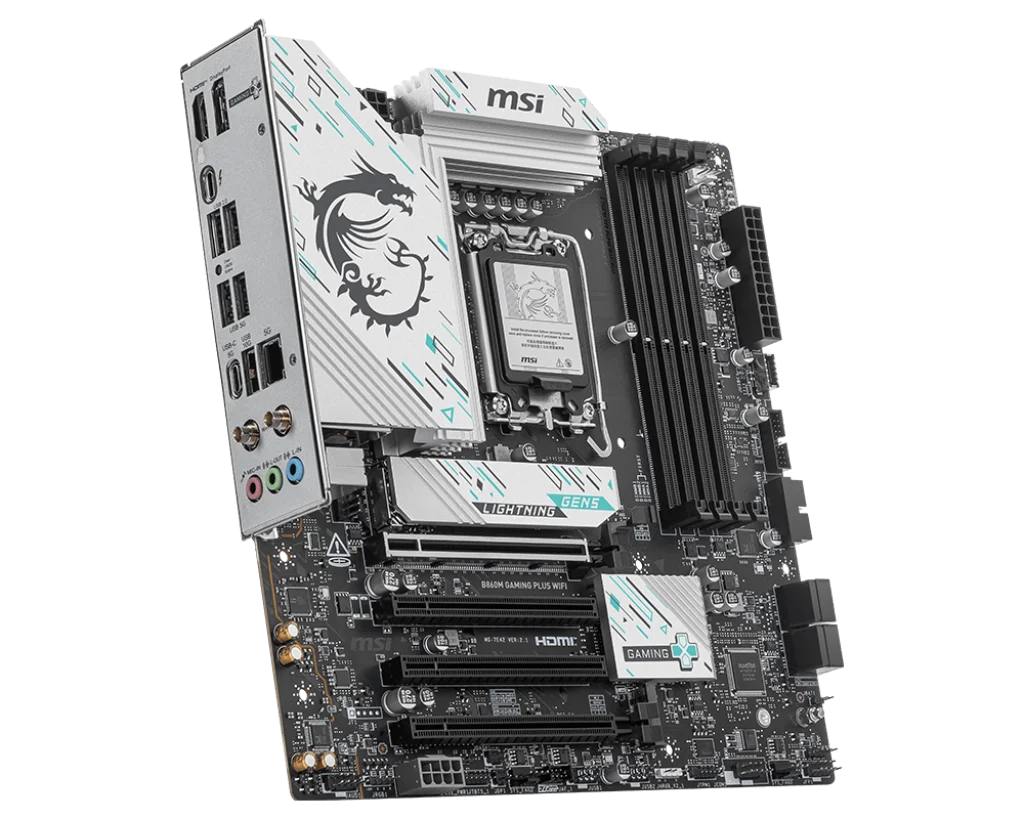

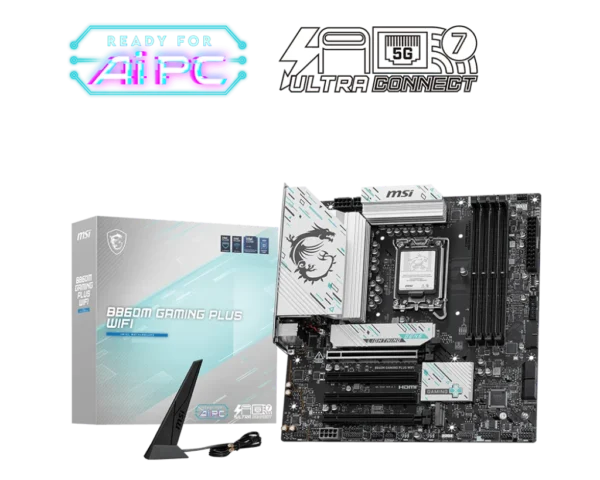

    MSI B860M GAMING PLUS WIFI Motherboard

    • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
    • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
    • Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7
    • Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
    SKU: B860M GAMING PLUS WIFI
    Brands: MSI

    Original price was: ₹33,999.00.Current price is: ₹17,599.00.

    Out of stock

    Out of stock

    Add to compare
    Add to wishlist
    46 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier
    • Shiprocket
    • Delhivery_Logo_(2019)-svg

    3 - 4 Working Days With Express

    5 - 6 Working Days With Surface
    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    MSI B860M GAMING PLUS WIFI Motherboard

     Core Specs

    • Chipset: Intel® B860
    • CPU Socket: LGA 1851
    • CPU Support: Intel® Core™ Ultra (Series 2)
    • Integrated Graphics Support:
      • HDMI™ 2.1 – 4K @ 60Hz
      • DisplayPort 1.4 – 4K @ 60Hz
      • USB-C (Thunderbolt 4 w/ DP 2.1) – 4K @ 120Hz or 8K @ 60Hz
        (Only works with CPUs that have iGPUs)

     Memory

    • Slots: 4x DDR5 UDIMM
    • Max Capacity: 256GB
    • Speeds Supported:
      • JEDEC (Standard): 4800 – 6400 MT/s
      • OC (XMP 3.0): Up to 8800+ MT/s
    • Max OC Frequencies by Config:
      • 1DPC 1R: 8800+ MT/s
      • 1DPC 2R: 7200+ MT/s
      • 2DPC 1R: 6400+ MT/s
      • 2DPC 2R: 5600+ MT/s
    • Other Memory Features:
      • Dual-channel, dual-controller
      • CUDIMM, Non-ECC, Unbuffered
      • Single-sided latches on DIMMs

     Expansion Slots

    • 4x PCIe x16 Total:
      • PCI_E1: Gen 5.0 x16 (from CPU)
      • PCI_E2: Gen 4.0 x1 (from Chipset)
      • PCI_E3: Gen 4.0 x1 (from Chipset)
      • PCI_E4: Gen 4.0 x4 (from Chipset)

     Storage

    • 3x M.2 Slots:
      • M.2_1 (CPU): PCIe 5.0 x4 (2280/2260/2242)
      • M.2_2 (Chipset): PCIe 4.0 x4 (2280/2260)
      • M.2_3 (Chipset): PCIe 4.0 x2 (2280)
    • 4x SATA 6Gb/s Ports
    • RAID Support: RAID 0, 1, 5, 10 (SATA only)
    • Note: Check manual for M.2 heatsink clearance.

     Audio

    • Codec: Realtek® ALC897
    • Channels: 7.1 HD Audio

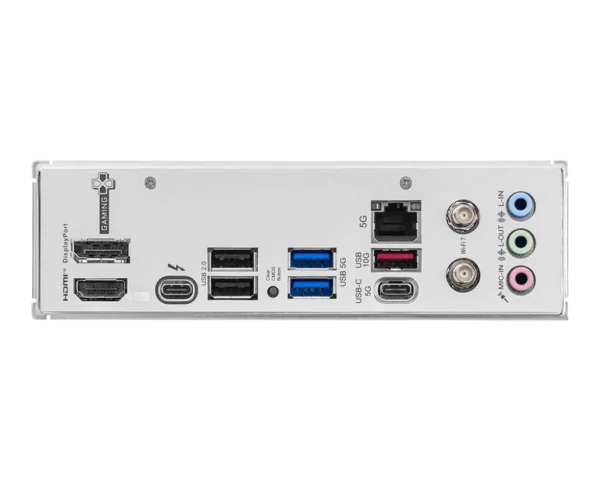

     USB Ports

    • Rear I/O:
      • 2x USB 2.0
      • 2x USB 5Gbps Type-A
      • 1x USB 5Gbps Type-C
      • 1x USB 10Gbps Type-A
    • Front I/O Support:
      • 4x USB 2.0
      • 4x USB 5Gbps Type-A
      • 1x USB 10Gbps Type-C

     Thunderbolt & Display

    • 1x Thunderbolt 4 Port (Rear):
      • Up to 40Gbps (Thunderbolt)
      • Up to 20Gbps (USB4)
      • Supports DisplayPort 2.1 (via USB-C)
      • Power Delivery: 5V/3A, 15W
      • Daisy-chain: Up to 3x TB4 or 5x TB3 devices
      • Display: Up to 8K
    • Thunderbolt5 card connector (JTBT5) onboard

     Networking

    • LAN: Intel® Killer™ E5000 – 5Gbps
    • Wi-Fi: Intel® Killer™ BE1750x (Wi-Fi 7 Ready)
      • Dual-band 2.4 / 5 / 6 GHz
      • Up to 5.8Gbps
      • MU-MIMO, 320MHz support
    • Bluetooth: 5.4 (depends on Windows 11 updates)

     Cooling & Fan Headers

    • 1x CPU Fan
    • 1x Pump/Combo Fan
    • 3x System Fan

     Internal I/O & Extras

    • 2x Addressable RGB Gen 2 headers
    • 1x RGB header
    • TPM 2.0 header
    • EZ Debug LEDs (4x – for troubleshooting)
    • Various connectors: JFP, JCI, JAUD, JDASH, JCOM, etc.



    Additional Information

    Brand

    MSI

    Color

    Black

    Product Type

    Motherboard

    Memory Series

    DDR5

    Weight

    1 KG

    Warranty

    3 Years
