MSI MAG B460 TOMAHAWK
mag b460 tomahawk image 01 600x600 1
mag b460 tomahawk image 02 600x600 1
mag b460 tomahawk image 03 600x600 1
mag b460 tomahawk image 04 600x600 1
Click to enlarge
    MSI MAG B460 TOMAHAWK

    MSI MAG B460 TOMAHAWK Motherboard

    • PLATFORMINTEL
    • SOCKETLGA1200
    • ChipsetB460
    • SUPPORTED MEMORY TYPEDDR4
    • MAX MEMORY SUPPORT128 GB
    • FORM FACTORATX
    SKU: MAG-B460-TOMAHAWK
    Brands: MSI

    ₹16,999.00

    Out of stock

    Out of stock

    Compare
    Add to wishlist
    199 People watching this product now!
    • Pick up from the Micro Center India
    To pick up the Same-day Order Before 1:30 PM.
    Free
    • Courier delivery
    Our courier will deliver to the specified address
    3-5 Days
    • Blue Dart
    • Delhivery Courier
    • DTDC Courier
    • Shiprocket
    • Delhivery_Logo_(2019)-svg

    3 - 4 Working Days With Express

    5 - 6 Working Days With Surface
    • Warranty - As Per Company Norms
    • Free RMA Support
    Payment Methods:

    Description

    MSI MAG B460 TOMAHAWK Motherboard Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket.

    Features

    • Supports 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket
    • Supports DDR4 Memory, up to 2933MHz (Max.)
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
    • Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
    • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
    • Audio Boost: Reward your ears with studio grade sound quality
    • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire

    Specifications

    CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
    Chipset Intel B460 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
    • Intel Core i7/i9
      • Supports up to DDR4 2933 MHz
    • Intel Core i5 (Below)
      • Supports up to DDR4 2666 MHz
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel Extreme Memory Profile (XMP)
    Expansion Slot
    • 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
    • 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode
    • 2x PCIe 3.0 x1 slots (From PCH)
    Onboard Graphics
    • 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
    • 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
    Storage Intel B460 Chipset

    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
      • Intel Optane Memory Ready
      • Supports Intel Smart Response Technology for Intel Core processors
    RAID Intel B460 Chipset

    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB Intel B460 Chipset

    • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
    • 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    ASMedia ASM3241 Chipset

    • 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
    Audio Realtek ALC1200 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN
    • 1x Realtek RTL8125B 2.5Gbps LAN controller
    • 1x Intel I219V 1Gbps LAN controller
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1xTPM module connector
    • 1x Clear CMOS jumper

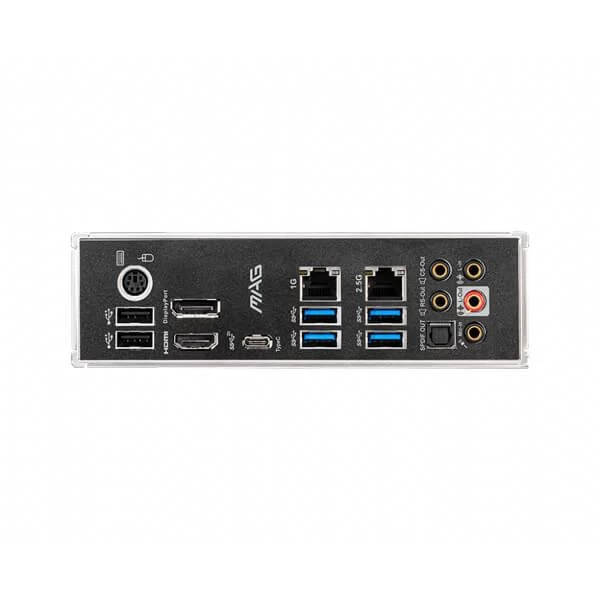

    Back panel ports
    • PS/2 Combo Port
    • DisplayPort
    • 1G LAN Port
    • 2.5G LAN Port
    • HD Audio Connectors
    • USB 2.0 Ports
    • HDMI
    • USB 3.2 Gen 2×2 20Gbps (Type-C)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • Optical S/PDIF OUT
    LED Features
    • 1x EZ LED Control switch
    • 4x EZ Debug LED
    I/O Controller NUVOTON NCT6687 Controller Chip
    Hardware Monitor
    • CPU/System temperature detection
    • CPU/System fan speed detection
    • CPU/System fan speed control
    Form Factor
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    BIOS Features
    • 1x 128 Mb flash
    • UEFI AMI BIOS
    • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
    Warranty 3 Years
    Note ***Features, Price and Specifications are subject to change without notice.
    • PLATFORMINTEL
    • SOCKETLGA1200
    • ChipsetB460
    • SUPPORTED MEMORY TYPEDDR4
    • MAX MEMORY SUPPORT128 GB
    • FORM FACTORATX

    Additional Information

    Brand

    MSI
    EAN Code

    4719072730369
