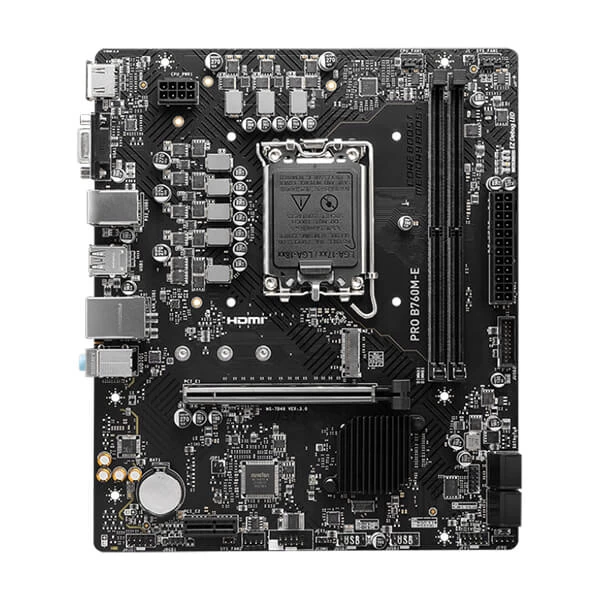

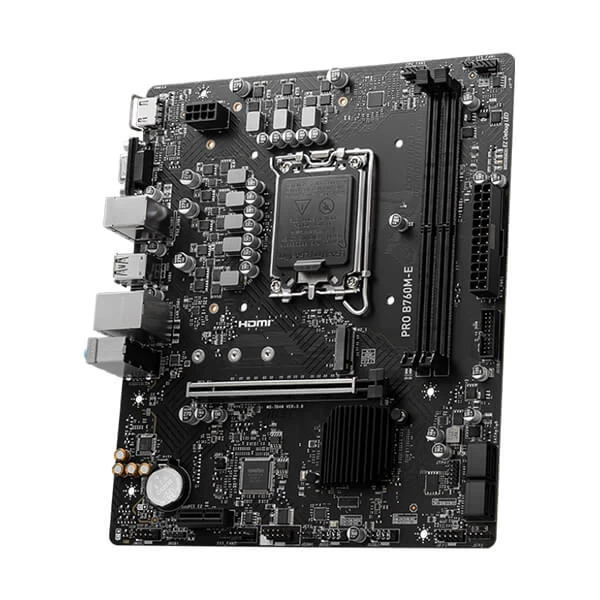

The MSI Pro B760M-E Motherboard: A Dependable Choice for Your Upcoming Build
The MSI Pro B760M-E Motherboard is designed for outstanding performance, providing a solid base for gaming, productivity, and everyday computing tasks. Constructed with high-quality components and advanced technologies, the B760M-E motherboard guarantees smooth operation and enduring reliability, making it a perfect option for both PC enthusiasts and professionals.
Key Features of the MSI Pro B760M-E Motherboard
Strong Performance with DDR4 Support
The MSI Pro B760M-E DDR4 motherboard accommodates high-speed DDR4 memory, delivering quicker load times, better multitasking, and improved overall system performance.
Intel B760 Chipset
Fueled by the Intel B760 chipset, the MSI Pro B760M-E is fine-tuned for the latest Intel processors, providing stable and efficient performance.
Advanced Cooling Solutions
Featuring extended heatsinks and a high-quality thermal solution, the Pro B760M-E maintains cool operation even during demanding tasks, extending the lifespan of your components.
Space-Saving Micro-ATX Form Factor
Constructed in a compact micro-ATX form factor, the B760M-E motherboard effortlessly fits into smaller cases while delivering superior performance.
Variety of Connectivity Options
Equipped with high-speed USB ports, an HDMI output, and PCIe 4.0 support, the MSI Pro B760M-E DDR4 provides a wide range of connectivity for modern devices and graphics cards.
Durable Build Quality
Crafted with military-grade components, the MSI Pro B760M-E ensures long-lasting durability and stability for extended use.
User-Friendly BIOS
The MSI Click BIOS 5 offers an easy-to-use interface, facilitating the adjustment of system settings, overclocking, and management of hardware performance.
Reasons to Choose the MSI Pro B760M-E DDR4
Cost-Effective Versatility: Perfect for both gaming fans and professional users needing a trustworthy and high-performing motherboard.
Effortless Upgradability: Compatible with the latest Intel Core processors, providing future-proofing for your PC.
Rapid Connectivity: PCIe 4.0 and USB 3.2 Gen1 deliver faster data transfer rates and compatibility with contemporary devices.
Compact yet Powerful: The Pro B760M-E motherboard offers strong performance in a space-efficient micro-ATX design, ideal for builds with limited space.
Suitable for Any Build
Whether you are constructing a high-performance gaming setup or a professional workstation, the MSI Pro B760M-E DDR4 motherboard provides the features and stability necessary for your needs. With support for cutting-edge hardware and MSI’s renowned reliability, this motherboard guarantees your PC is equipped for any task.
Purchase the MSI Pro B760M-E DDR4 motherboard now and unleash the full potential of your PC!
Specification:
| Model |
PRO B760M-E |
| Chipset |
INTEL B760 |
| CPU SUPPORT |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
- 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
| Storage |
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
|
| LAN |
Realtek® RTL8111H Gigabit LAN |
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Internal I/O |
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
|
| LED FEATURE |
4x EZ Debug LED |

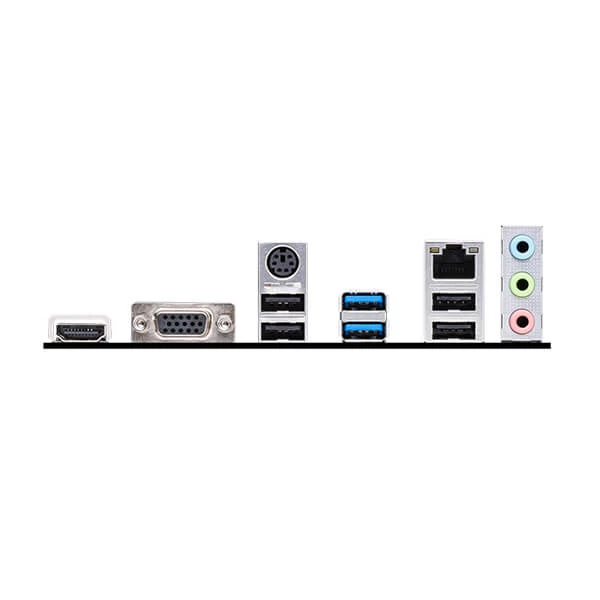

| BACK PANEL PORTS |
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps (Type-A)
- LAN port
- Audio Connectors
- USB 2.0
- USB 2.0
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) |
mATX
200mmx236.16mm |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
