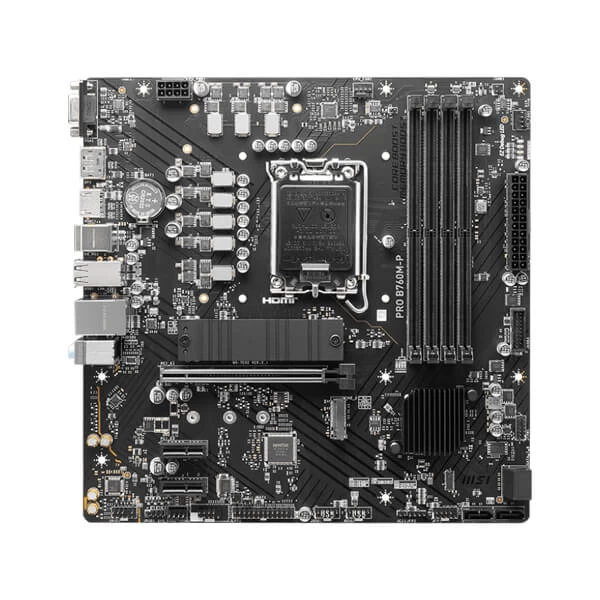

MSI Pro B760M-P Motherboard
pro b760m p image 04 600x600 1
pro b760m p image 03 600x600 1
pro b760m p image 02 600x600 1
pro b760m p image 01 600x600 1
Click to enlarge
MSI Pro B760M-P Motherboard

MSI Pro B760M-P Motherboard

MSI Pro B760M-P Motherboard
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 Socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
SKU: PRO-B760M-P

Original price was: ₹19,999.00.Current price is: ₹12,331.00.

Out of stock

Out of stock

Compare
Add to wishlist
140 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • Blue Dart
  • Delhivery Courier
  • DTDC Courier

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

  • Warranty - As Per Company Norms
  • Free RMA Support

Payment Methods:

Description

MSI Pro B760M-P Motherboard

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 Socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Specifications:

Chipset INTEL B760
CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT 1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)
LAN Realtek® RTL8111H Gigabit LAN
Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS VGA

DisplayPort

HDMI™

Keyboard / Mouse

USB 2.0

LAN port

Audio Connectors

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension mATX

243.84mmx243.84mm
Warranty 3 Years

Additional Information

Weight

1 KG
Product Type

Gaming
Color

Black
Chipset

B760
Motherboard Size

ATX
Socket

LGA 1700
Platform

Intel
Motherboard Series

MSI Pro
EAN / UPC Code

4711377030991
RAM Type

DDR4
Warranty

3 Years
