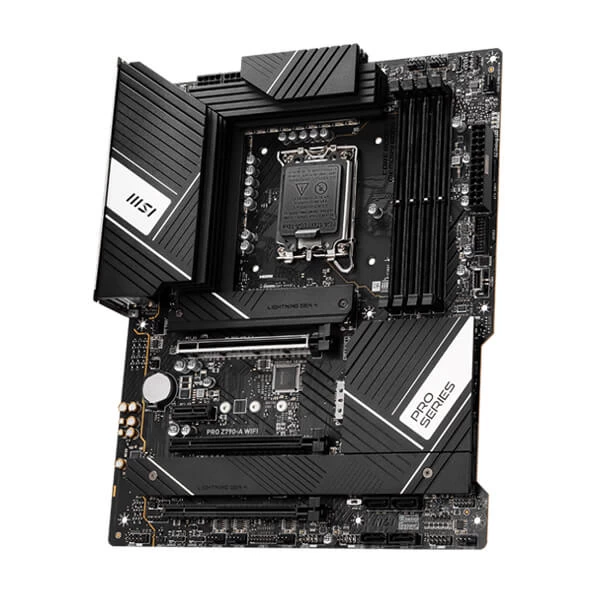

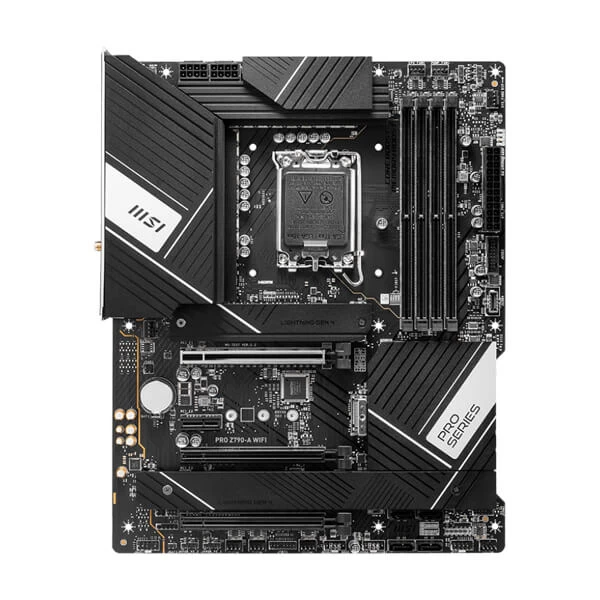

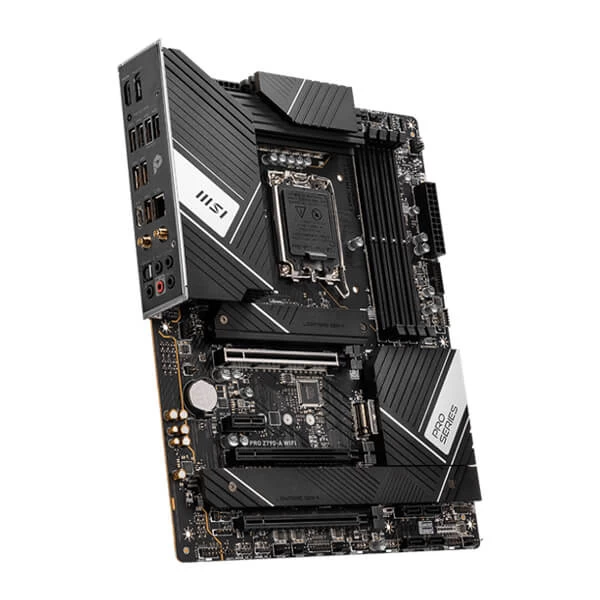

MSI Pro Z790-A WIFI Motherboard

  • PLATFORMINTEL
  • SOCKETLGA1700
  • ChipsetZ790
  • SUPPORTED MEMORY TYPEDDR5
SKU: PRO-Z790-A-WIFI
Brands: MSI

₹29,999.00

Out of stock

Out of stock

Compare
Add to wishlist
51 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • Blue Dart
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

  • Warranty - As Per Company Norms
  • Free RMA Support

Payment Methods:

Description

PRO Z790-A WIFI Supports 12th/13th Gen Intel Core processors for LGA 1700 socket, DDR5 Memory, Dual Channel DDR5 7200+MHz (OC), PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2

Features:

  • Supports 12th/13th/14th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

Chipset INTEL Z790
CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 128GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™

1x DisplayPort

Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz

Support DP 1.4, maximum resolution of 8K 60Hz
EXPANSION SLOT 3x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Storage 4x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Audio Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output
Internal I/O 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0

2x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED

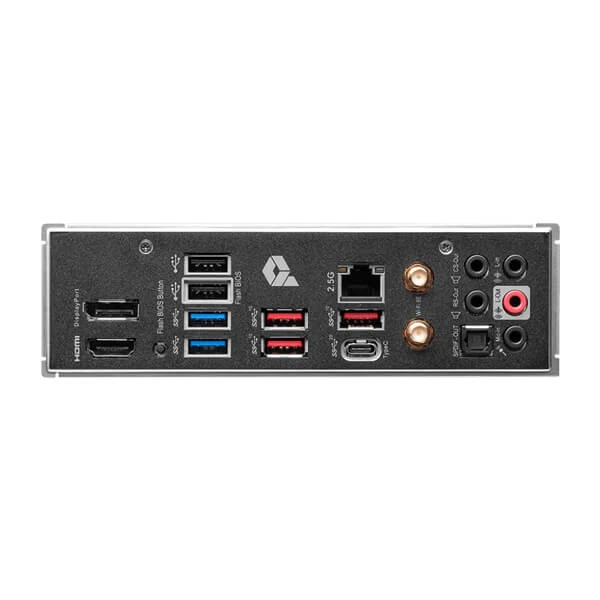

BACK PANEL PORTS DisplayPort

USB 2.0

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

HDMI™

Flash BIOS Button

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2×2 20Gbps (Type-C)

S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX

243.84mmx304.8mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMINTEL
  • SOCKETLGA1700
  • ChipsetZ790
  • SUPPORTED MEMORY TYPEDDR5
  • MAX MEMORY SUPPORT128 GB
  • FORM FACTORATX

Additional Information

Brand

MSI
EAN Code

4711377011464
