Description

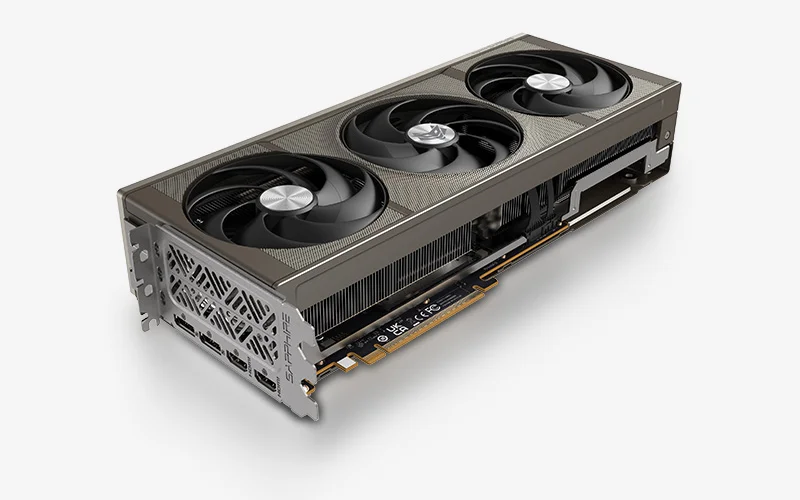

Sapphire NITRO+ AMD Radeon RX 9070 16GB Graphics Card – High-Performance Gaming & Graphics Power
The Sapphire NITRO+ AMD Radeon RX 9070 is a powerhouse graphics card designed for gamers and creators who demand top-tier performance. Built on AMD RDNA™ 4 architecture, this Sapphire graphics card delivers stunning visuals, high frame rates, and AI-powered enhancements for the ultimate gaming experience. Whether you’re playing at 4K resolution or pushing high refresh rates in esports titles, the Sapphire NITRO+ 9070 is engineered to exceed expectations.
Unmatched Performance with AMD RDNA™ 4
Powered by 56 Compute Units, 3584 Stream Processors, and 64MB Infinity Cache, the Sapphire NITRO+ AMD Radeon RX 9070 offers lightning-fast performance across modern gaming titles. With AI accelerators and Ray Accelerators, this AMD Radeon RX card ensures smooth, immersive gameplay with real-time ray tracing and AI-enhanced upscaling.
- Boost Clock: Up to 2700 MHz
- Game Clock: Up to 2210 MHz
- Memory: 16GB GDDR6 on a 256-bit Memory Bus
- Memory Speed: 20 Gbps Effective
- Power Consumption: 245W Typical Board Power
Advanced Cooling for Maximum Efficiency
Equipped with Tri-X Cooling Technology, AeroCurve Fan Blades, and Optimized Composite Heatpipes, this Sapphire graphics card maintains optimal temperatures even under heavy loads. Two-ball bearing fans and Intelligent Fan Control ensure silent and efficient cooling, prolonging the GPU’s lifespan.
Next-Gen Visuals & AI-Powered Features
The Sapphire NITRO+ 9070 integrates AMD’s latest FidelityFX™ Super Resolution 4 (FSR 4) with AI Upscaling, AMD HYPR-RX, and Fluid Motion Frames 2 Technology for smoother and more immersive gaming. Enjoy ultra-high resolutions with support for 7680×4320 via HDMI® and DisplayPort™ 2.1a.
Premium Build & Connectivity

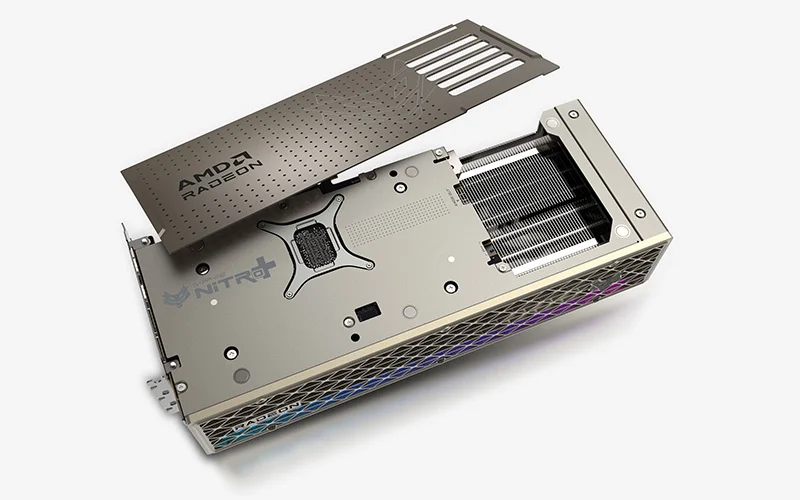

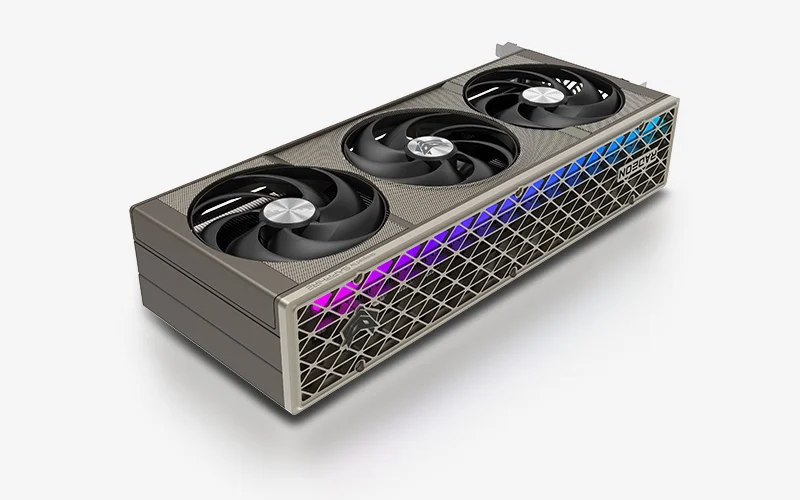

Designed for performance and durability, this Sapphire graphics card features a Cold Rolled Steel Frame, ARGB Light Bar, and a Metal Backplate for added strength. Connectivity options include 2x HDMI® and 2x DisplayPort™ 2.1a, ensuring compatibility with modern displays.
System Requirements & Compatibility
- Interface: PCI-Express 5.0 x16
- Power Requirement: Minimum 650W PSU with 12V-2×6(H++) Connector (3×8-pin adapter included)
- OS Support: Windows® 10, Windows® 11, Linux® (64-bit required)
- Recommended System Memory: 16GB (minimum 8GB)
Why Choose the Sapphire NITRO+ AMD Radeon RX 9070?
Optimized for 4K gaming with cutting-edge AI and ray tracing technology
Premium cooling system with intelligent fan control
Next-gen connectivity with DisplayPort™ 2.1a & HDMI® 2.1
Future-proof performance for gaming, streaming, and content creation
Upgrade your rig with the Sapphire NITRO+ AMD Radeon RX 9070 and experience next-level performance with AMD Radeon RX technology!
Specifications
GPU & Architecture
- GPU: AMD Radeon™ RX 9070
- Architecture: AMD RDNA™ 4
- Compute Units: 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
- Stream Processors: 3584
- Infinity Cache: 64MB
- Ray Accelerators: 56
- AI Accelerators: 112
Clock Speeds
- Boost Clock: Up to 2700 MHz
- Game Clock: Up to 2210 MHz
Memory
- Memory Size: 16GB GDDR6
- Memory Bus: 256-bit
- Memory Clock: 20 Gbps Effective
Display & Output
- Maximum Displays: 4
- Resolution:
- HDMI®: 7680×4320
- DisplayPort™ 2.1a: 7680×4320
- Outputs:
- 2x HDMI®
- 2x DisplayPort™ 2.1a
Interface & Power
- Interface: PCI-Express 5.0 x16
- Power Consumption: 245W Typical Board Power
- Power Connectors:
- 12V-2×6(H++) External Power Connector
- 3×8-pin power adapter (included)
- Recommended PSU: Minimum 650W
Form Factor & Cooling
- Form Factor: 3.2 Slot, ATX
- Dimensions: 330.8 (L) x 128.5 (W) x 65.68 (H) mm
- Cooling System:
- Tri-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing Fans
Features & Technologies
- BIOS Support: UEFI
- Game Index: 4K
- Sapphire Features:
- Quick Connect MagniPlate
- STEALTH Hidden Power Cable
- Honeywell PTM7950 Thermal Interface Material (TIM)
- Cold Rolled Steel Frame
- TriXX Supported (Performance vs. Efficiency Quicksets, Glow!, Fan Check, TriXX Boost)
- External RGB LED MB Synchronization
- ARGB Light Bar
- Metal Backplate
- Fan Quick Connect
- Premium 14-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
AMD Features
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 Technology
- AMD Radeon™ Anti-Lag 2 Technology
- AMD Noise Suppression
- AMD Freesync™ Technology
- AV1 Encode/Decode
- Microsoft® DirectX® 12 Ultimate
- AMD Smart Technologies
- AMD Software: Adrenalin Edition™
Operating System Compatibility
- Supported OS: Linux®, Windows® 10, and Windows® 11 (64-bit)
System Requirements
- Minimum System Memory: 8GB (16GB recommended)
- Motherboard Compatibility: PCI Express® based PC with one x16 lane graphics slot available
- Power Supply: Minimum 650W with 12V-2×6(H++) Power Connector (3×8-pin power adapter included)
Accessories Included
- L-Shape Support Bracket
- 3-Pin 5V ARGB Cable
- Magnetic Backplate
- 12V-2×6(H++) to PCI Express 3×8-pin Power Adapter
