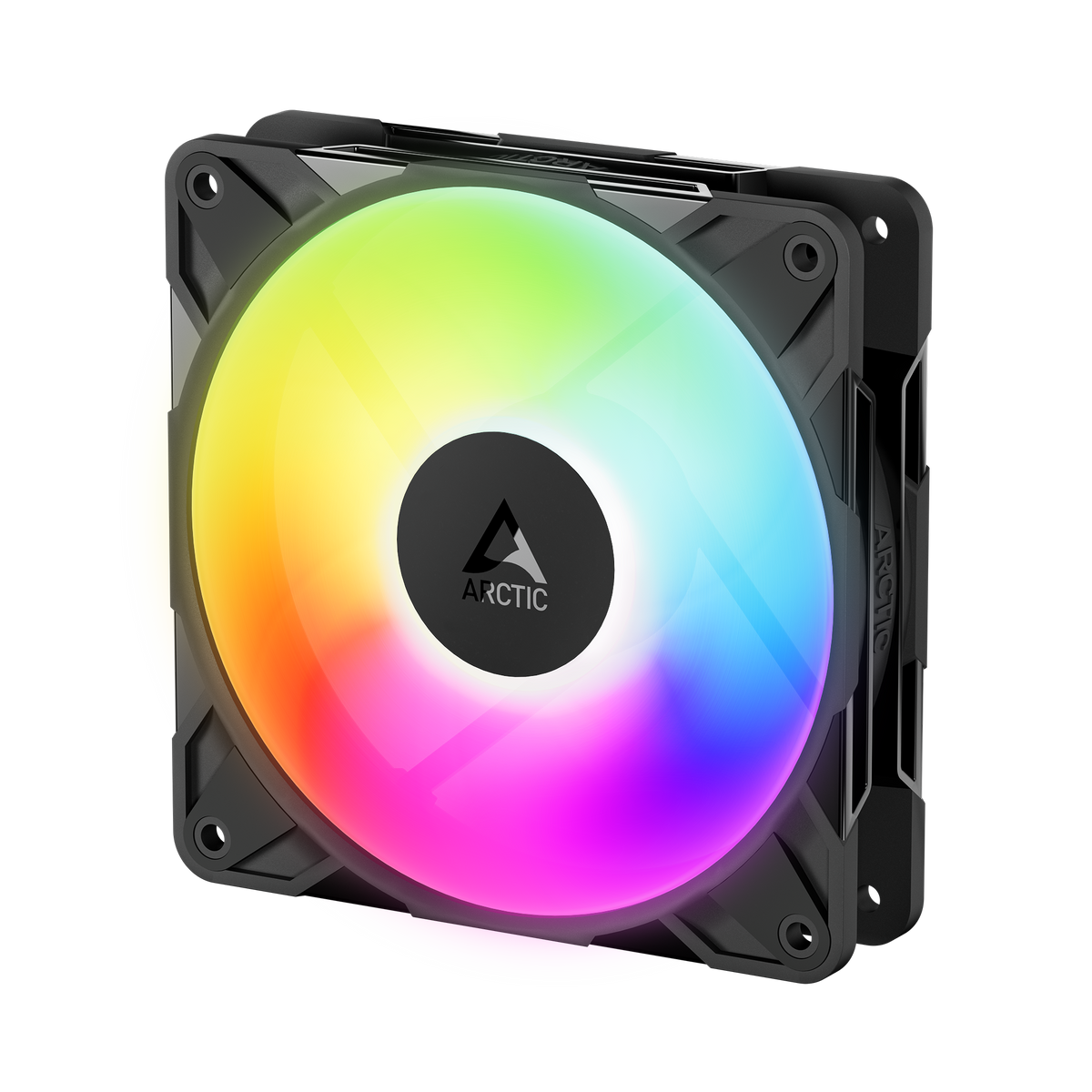

A reverse blade 120mm fan with 12 addressable RGB LEDs. Mounted as an intake it shows its smooth face to the viewer rather than the motor hub, which is why reverse blade fans have become standard in glass fronted and dual chamber builds.
Key specifications
- Size: 120mm
- Speed: 500 to 3,000 RPM PWM, 0 RPM below 5 percent duty
- Airflow: 73 CFM, 124 m3/h
- Static pressure: 4.5 mmH2O
- Bearing: fluid dynamic
- Lighting: 12x addressable RGB LEDs, 5V
- Connectors: 4 pin PWM with PST socket, 3 pin A-RGB in and out
- Colour: Black
- Warranty: 6 years
- EAN: 4895265000591
Check the airflow direction before you mount it. A reverse fan installed the way you would install a normal one will blow air the wrong way. The arrow on the frame is the reference, not habit.
73 CFM at 4.5 mmH2O against the standard P12 Pro's 77 CFM at 6.9 mmH2O. You give up some static pressure for the appearance.
In the box: 1x P12 Pro Reverse A-RGB fan, mounting screws
