Three S12038-8K 120mm server fans, each rated to 8,000 RPM and 220 CFM. For chassis that need maximum forced airflow across a bank of positions.
Key specifications, per fan
- Size: 120 x 120 x 38mm
- Speed: 800 to 8,000 RPM PWM
- Airflow: 220 CFM, 370 m3/h
- Static pressure: 37 mmH2O
- Bearing: dual ball
- Connector: 4 pin PWM, 2510 pitch
- Quantity: 3
- Warranty: 6 years
- EAN: 4895213704724
Three of these at full speed is extremely loud. This is machine room equipment. If the chassis lives anywhere near people, the S12038-4K three pack gives 106 CFM per fan at a fraction of the noise and is the sensible default.
Check the 38mm depth and the 2510 connector pitch against your chassis before ordering.

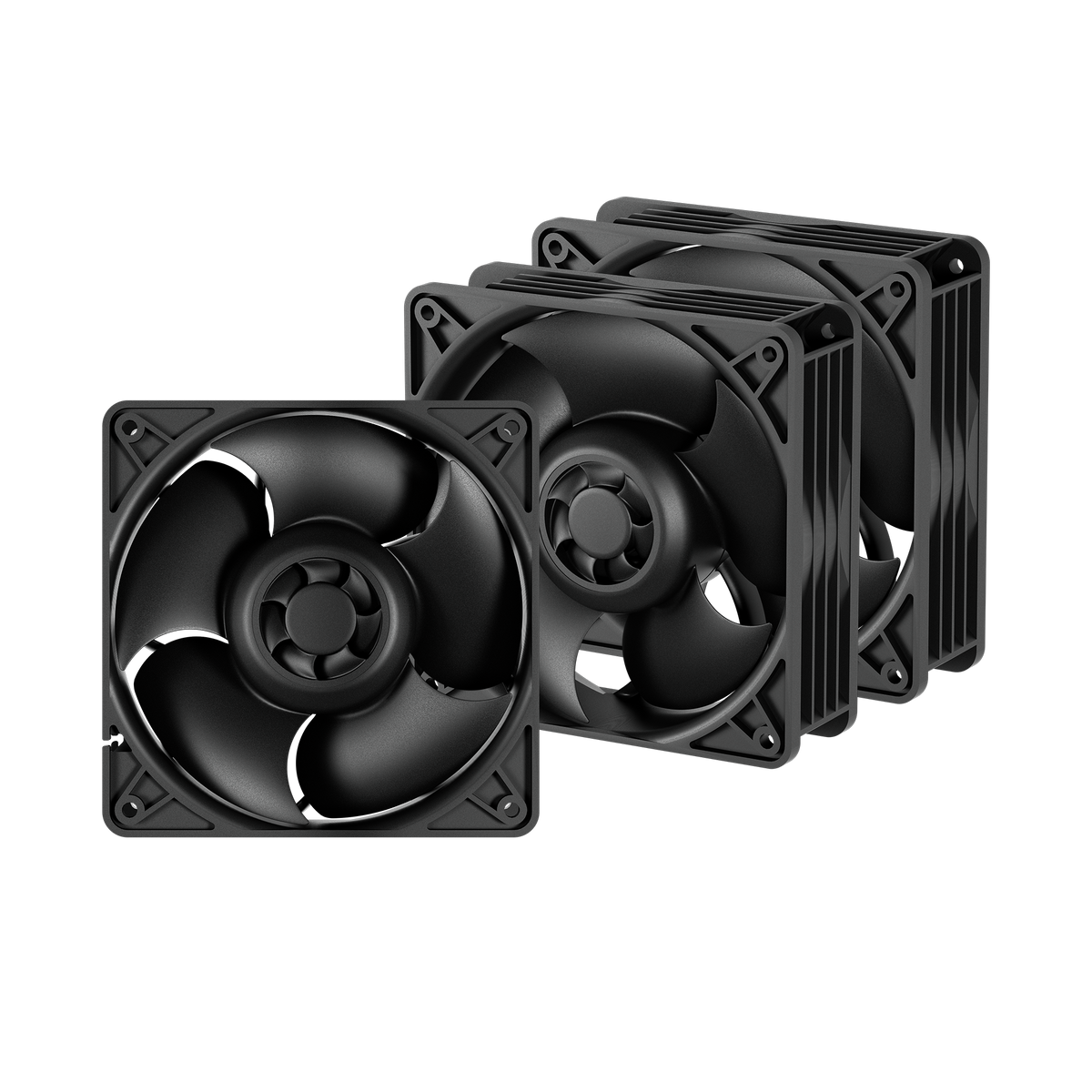

Note on the product image: ARCTIC uses one three pack render across both speed grades. This is the 8K.
In the box: 3x S12038-8K fans
