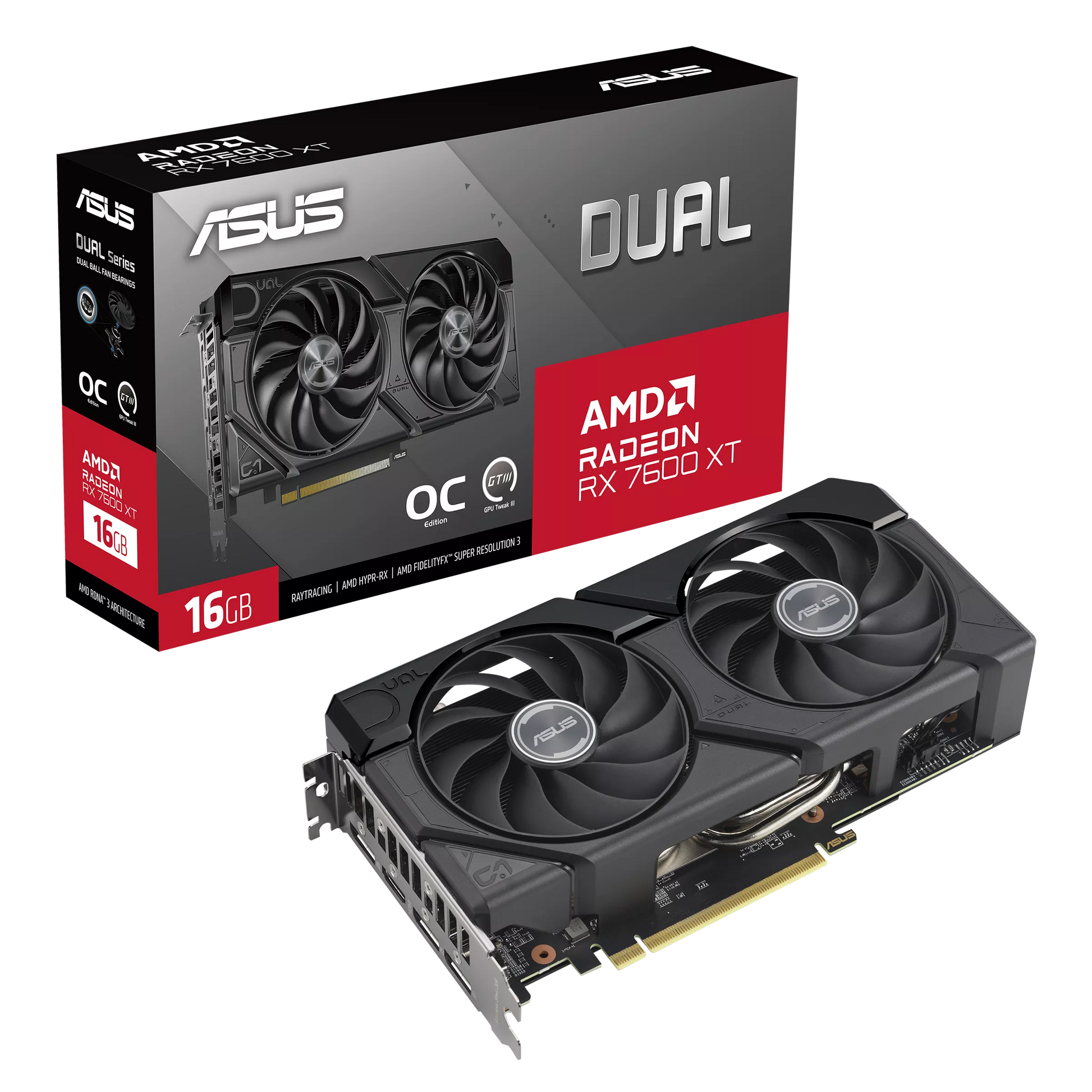

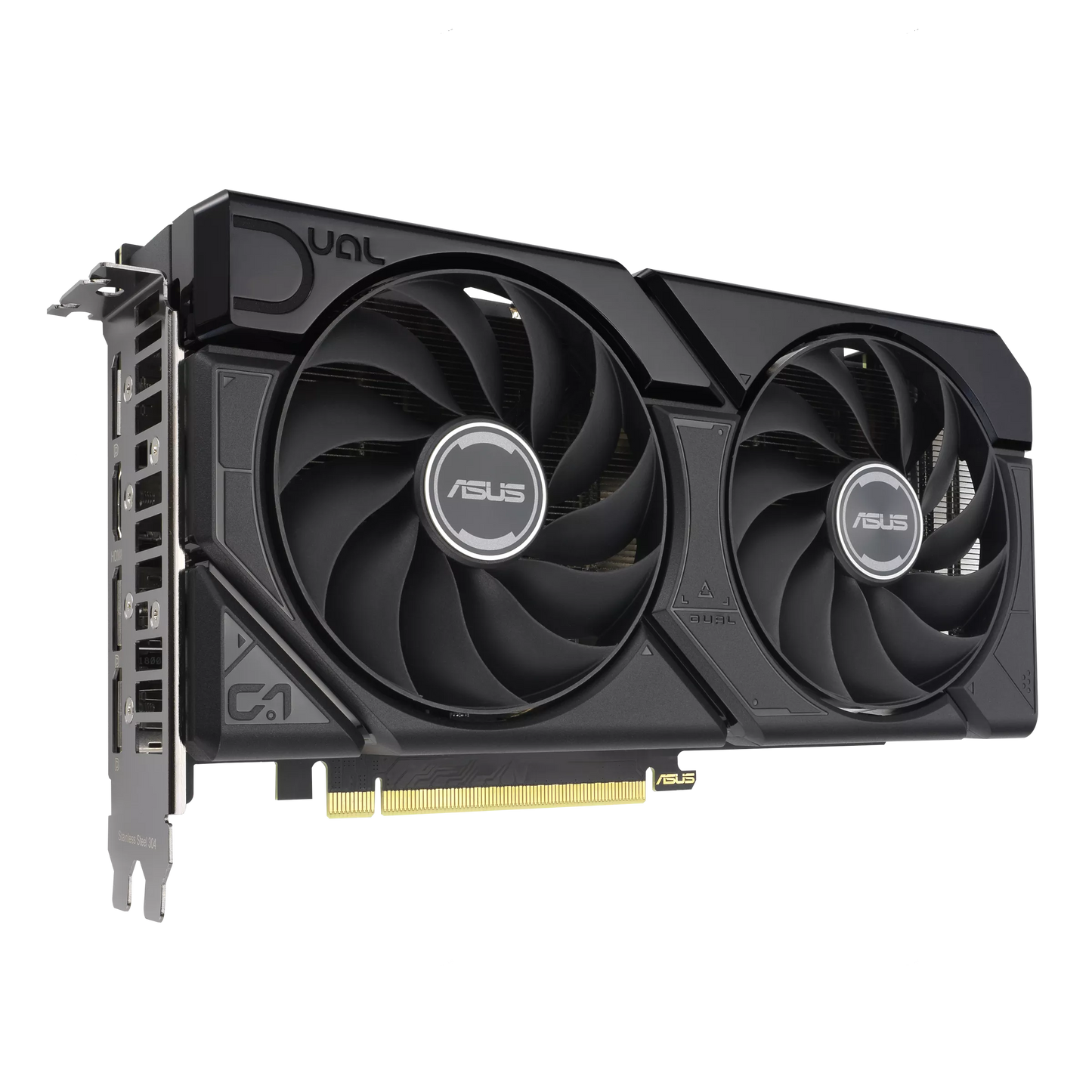

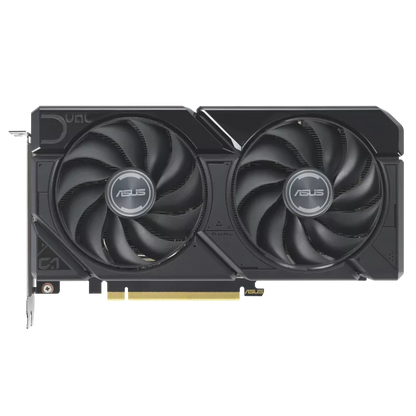

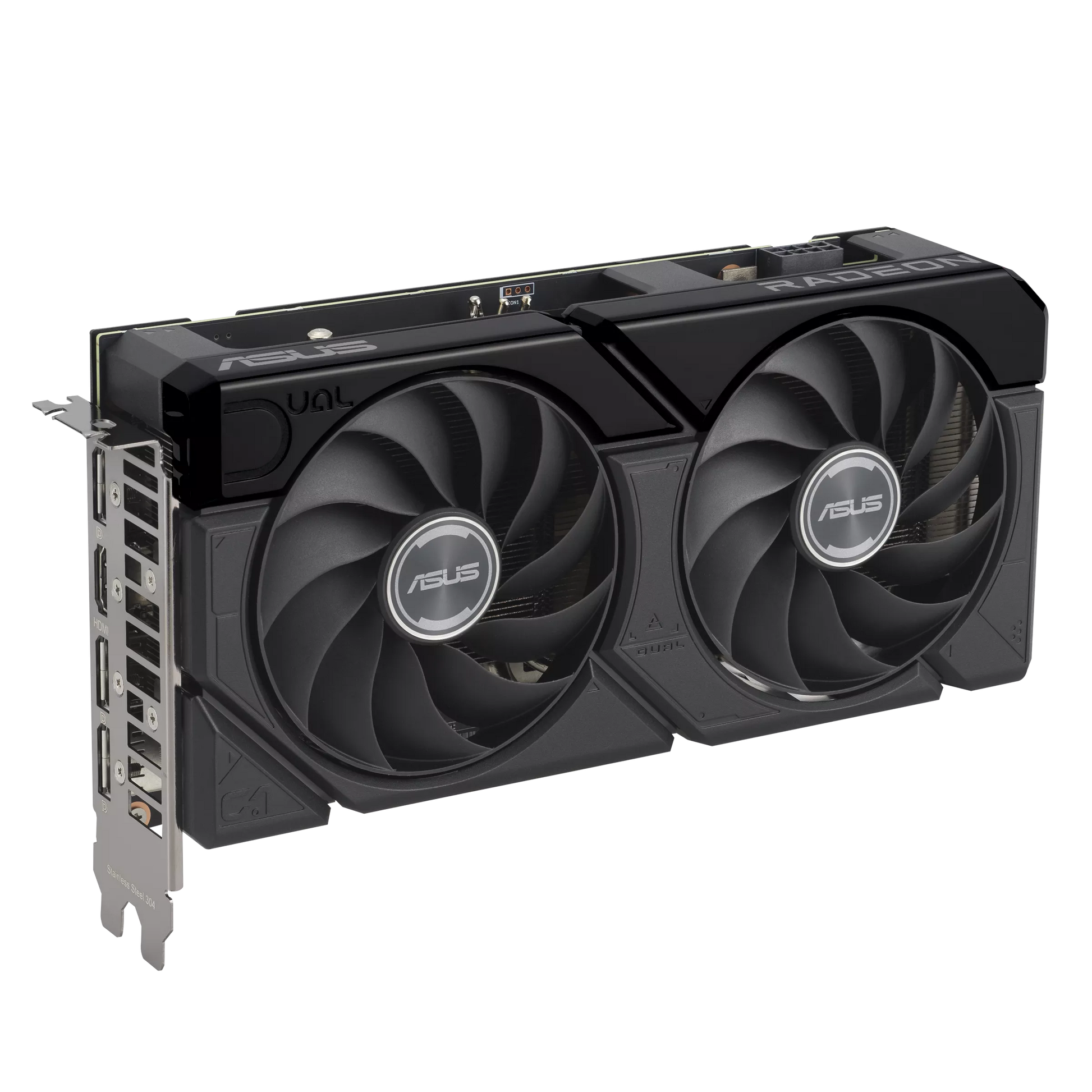

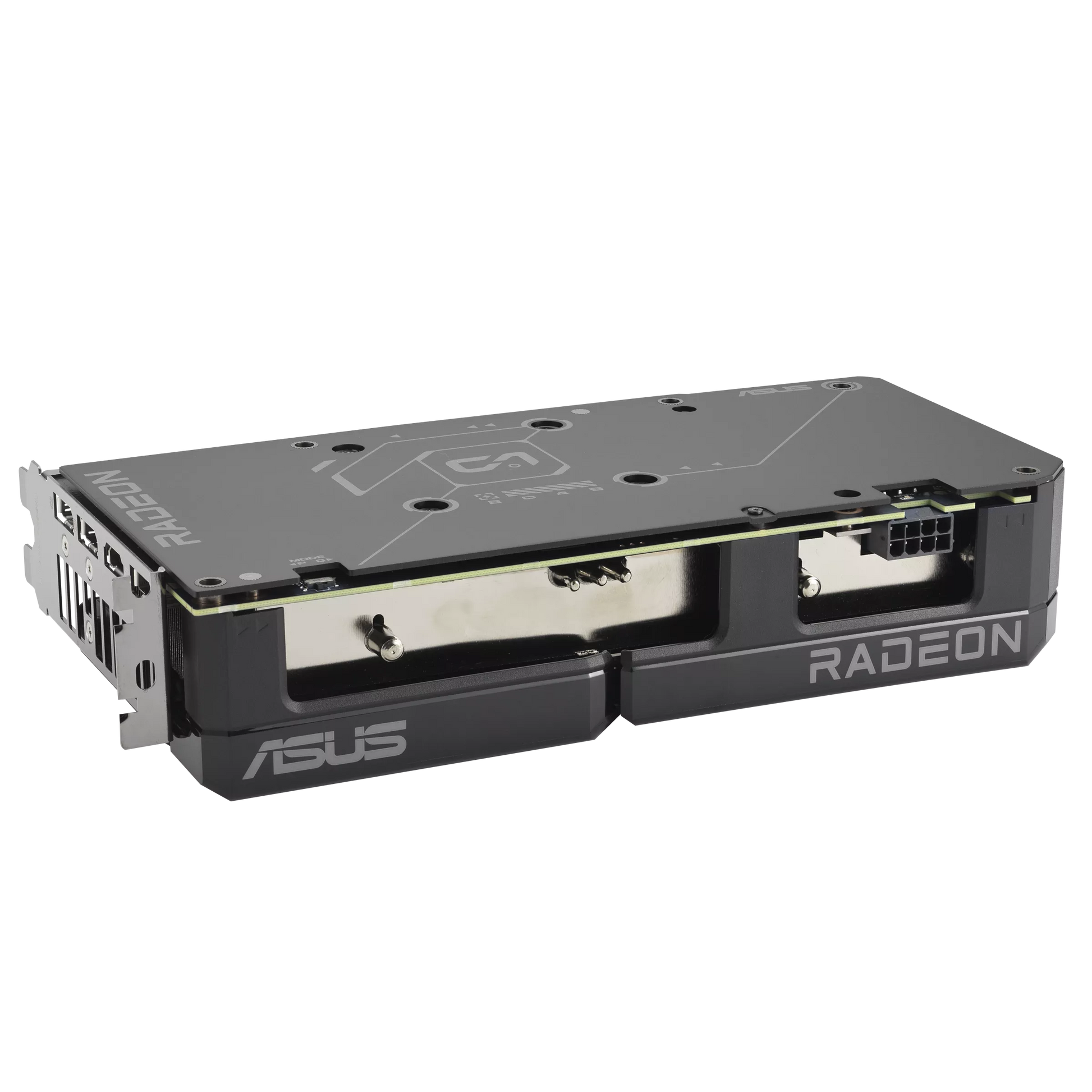

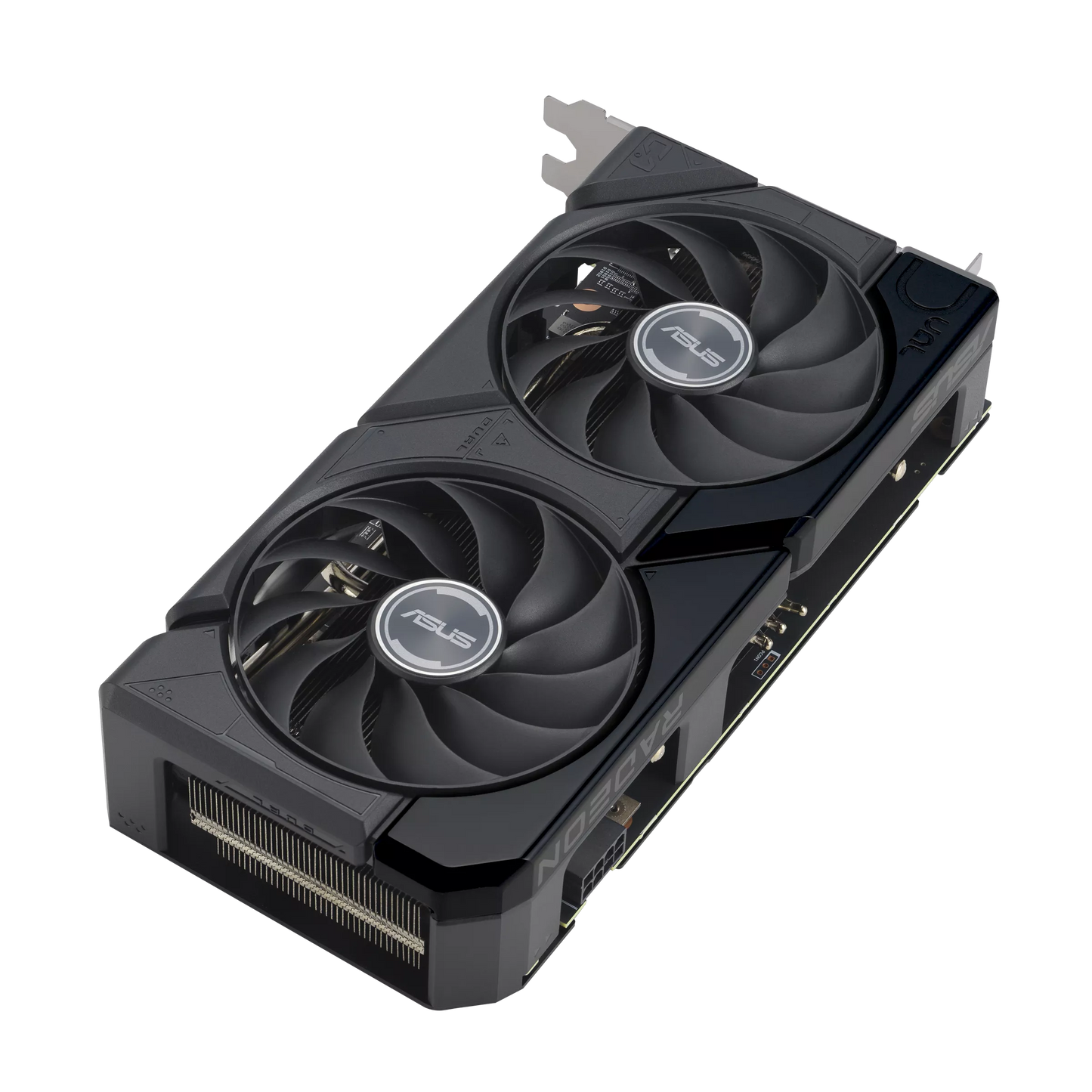

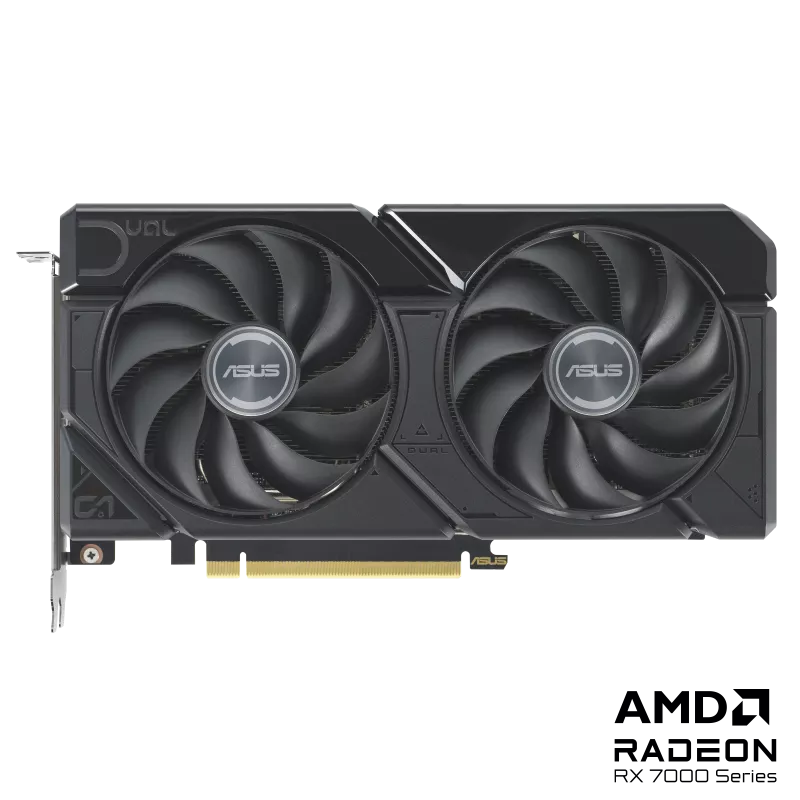

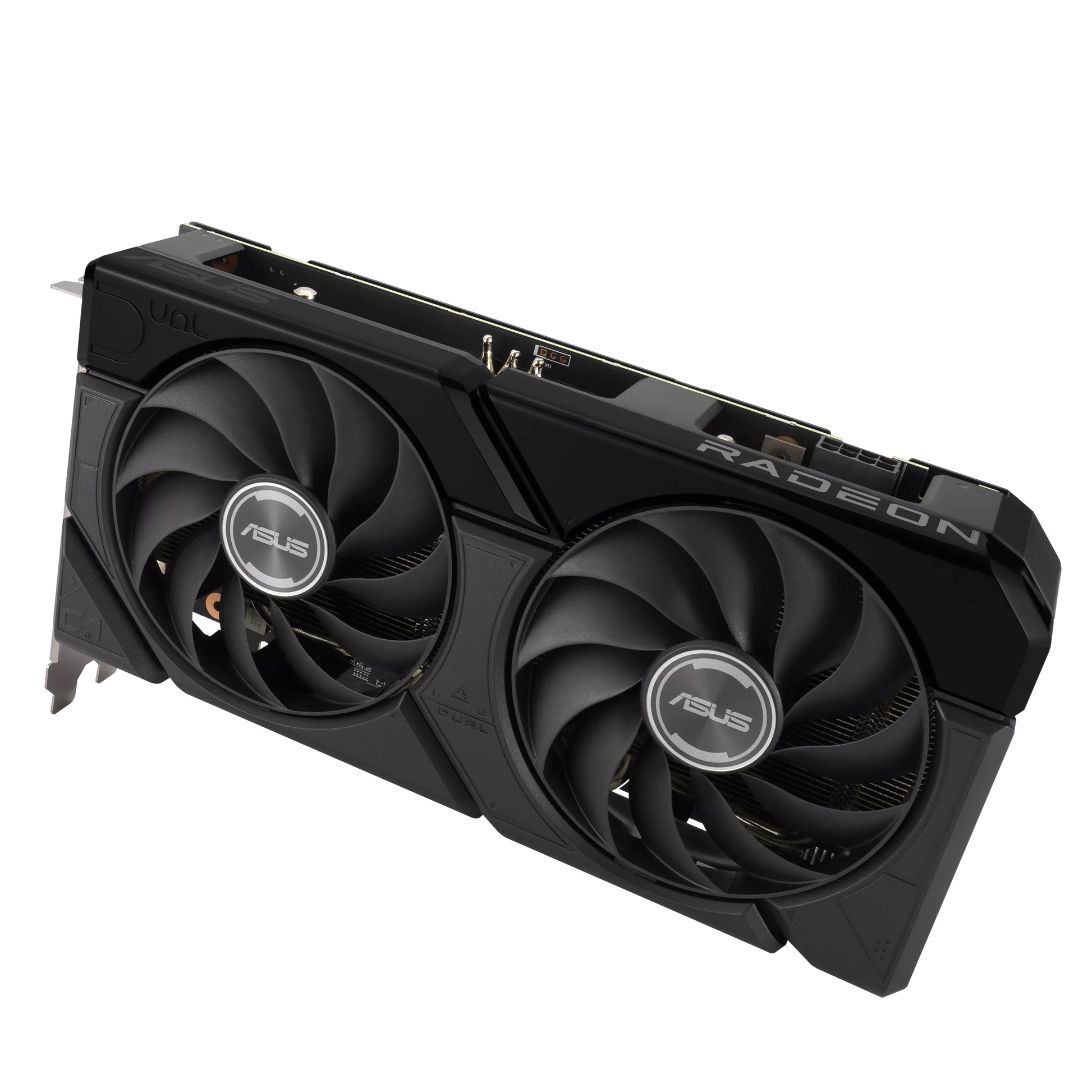

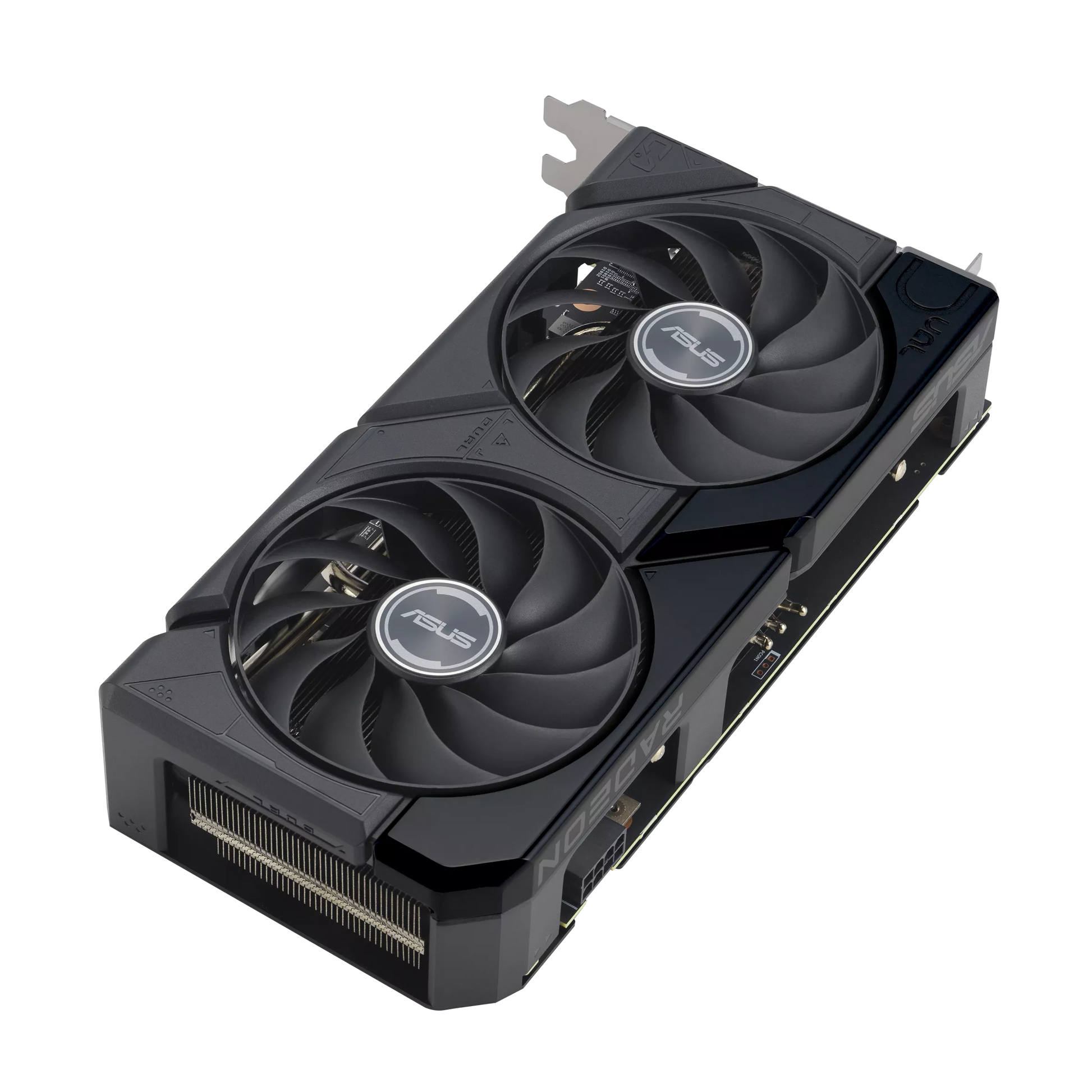

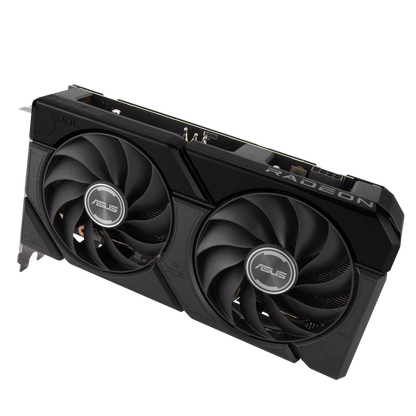

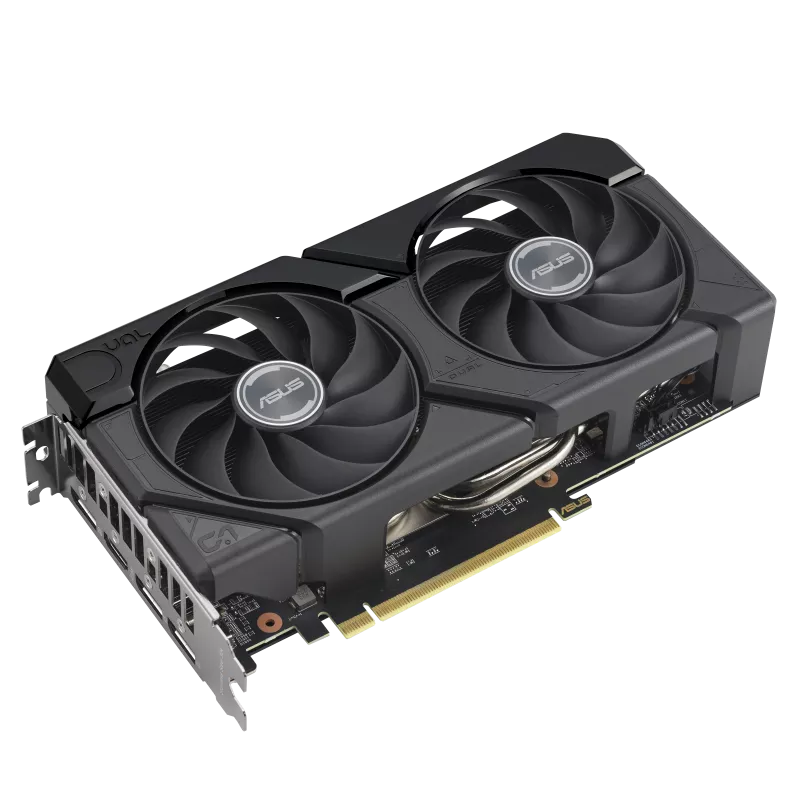

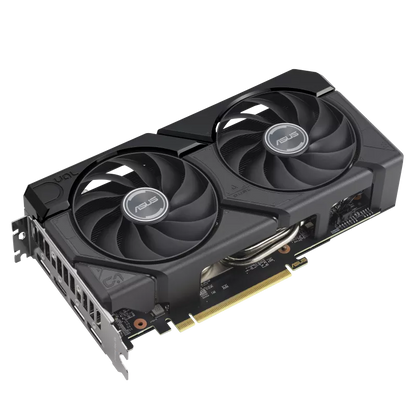

ASUS Dual Radeon RX 7600 XT OC Edition 16GB GDDR6, up to 2801 MHz (Boost Clock)/ up to 2513 MHz (Game Clock), Axial-tech fan design.

Model

DUAL-RX7600XT-O16G

Graphic Engine

AMD Radeon™ RX 7600 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode : up to 2801 MHz (Boost Clock)/up to 2513 MHz (Game Clock)
Default mode : up to 2781 MHz (Boost Clock)/up to 2493 MHz (Game Clock)

Stream Processors

2048

Memory Speed

18 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

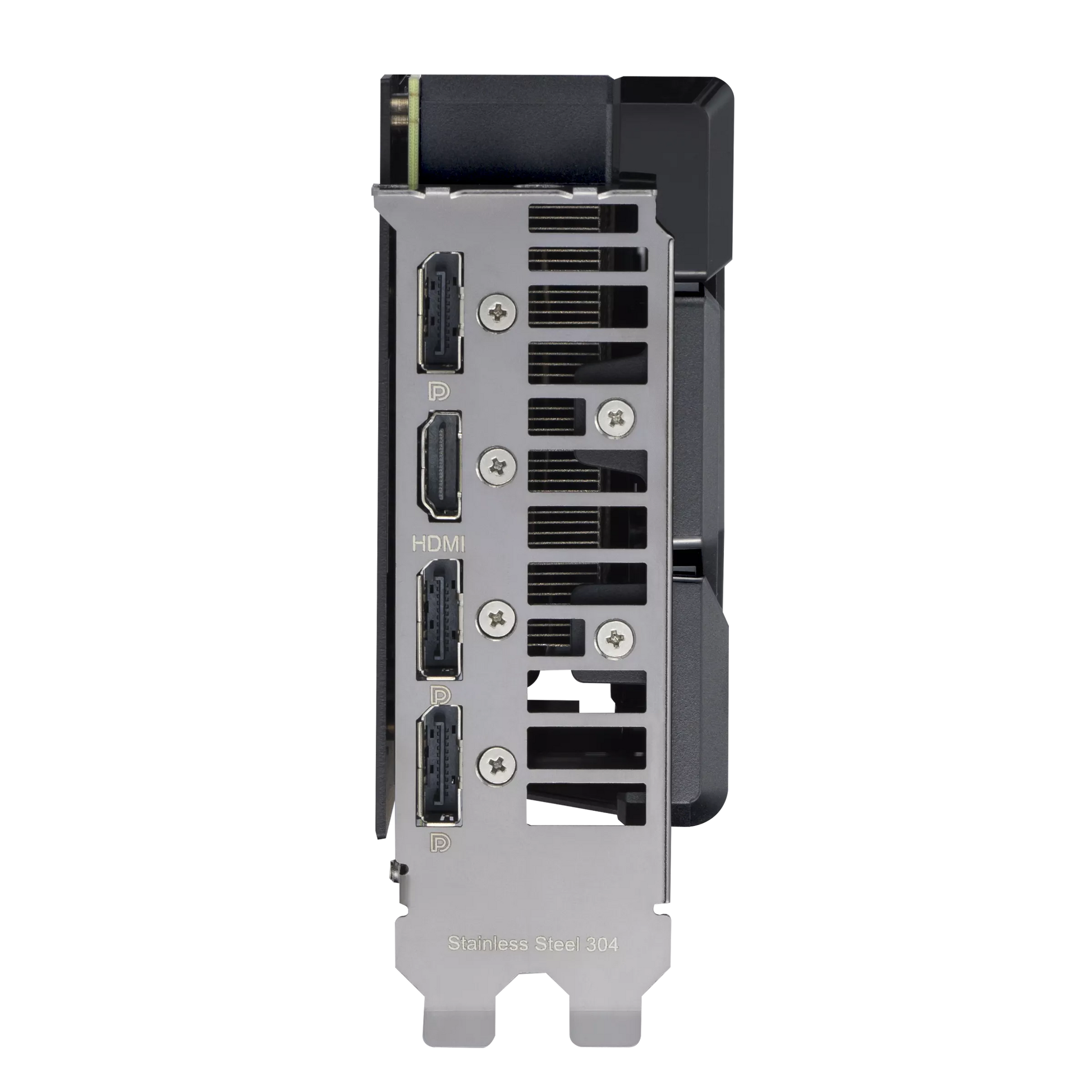

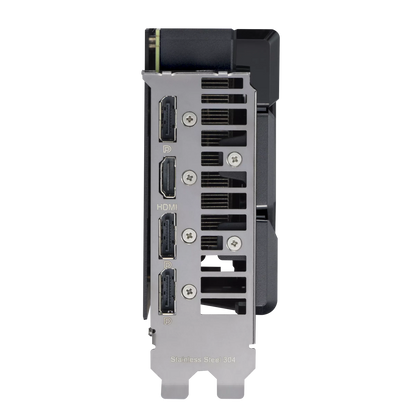

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Thank you card
1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

227.2 x 123.24 x 49.6 mm

Recommended PSU

600W

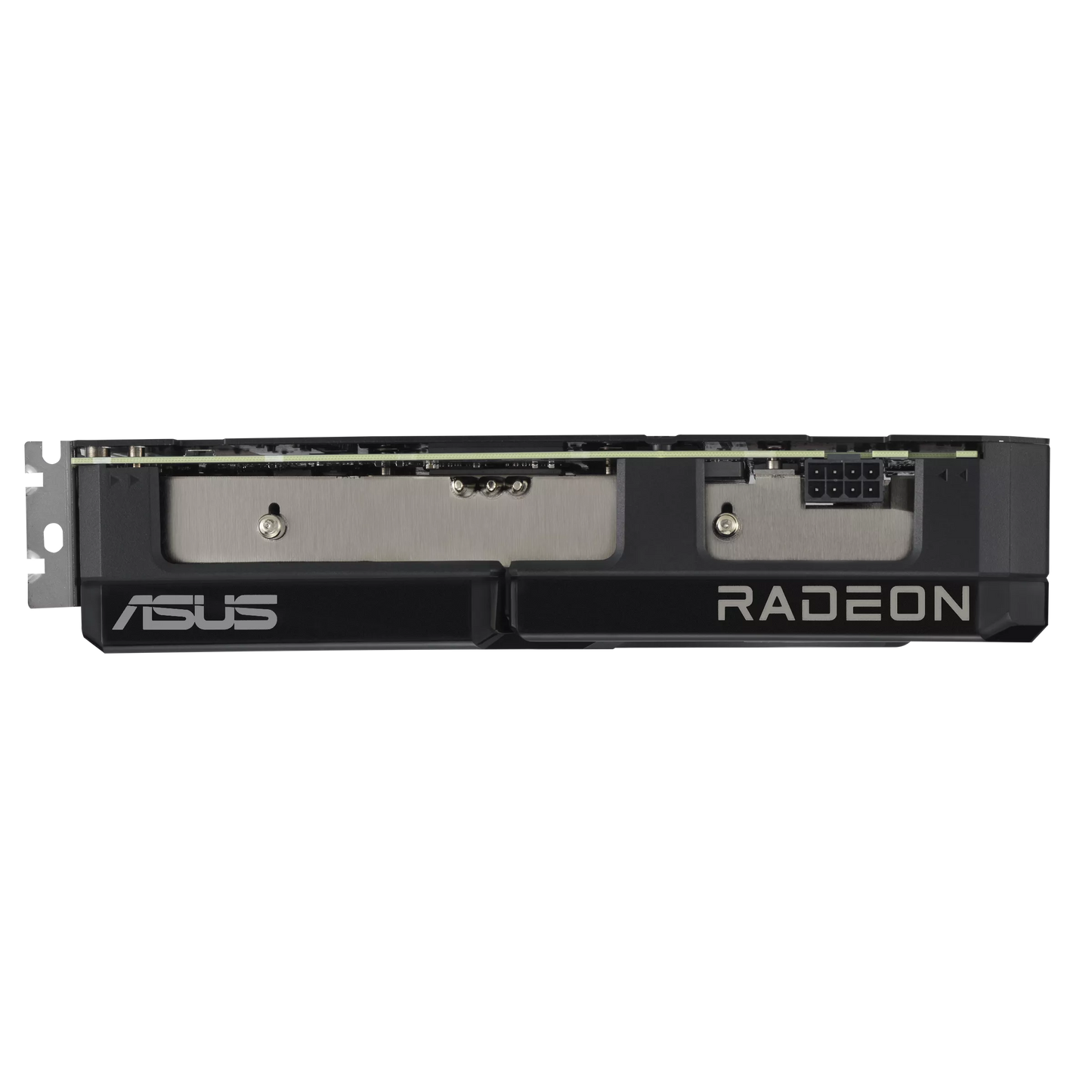

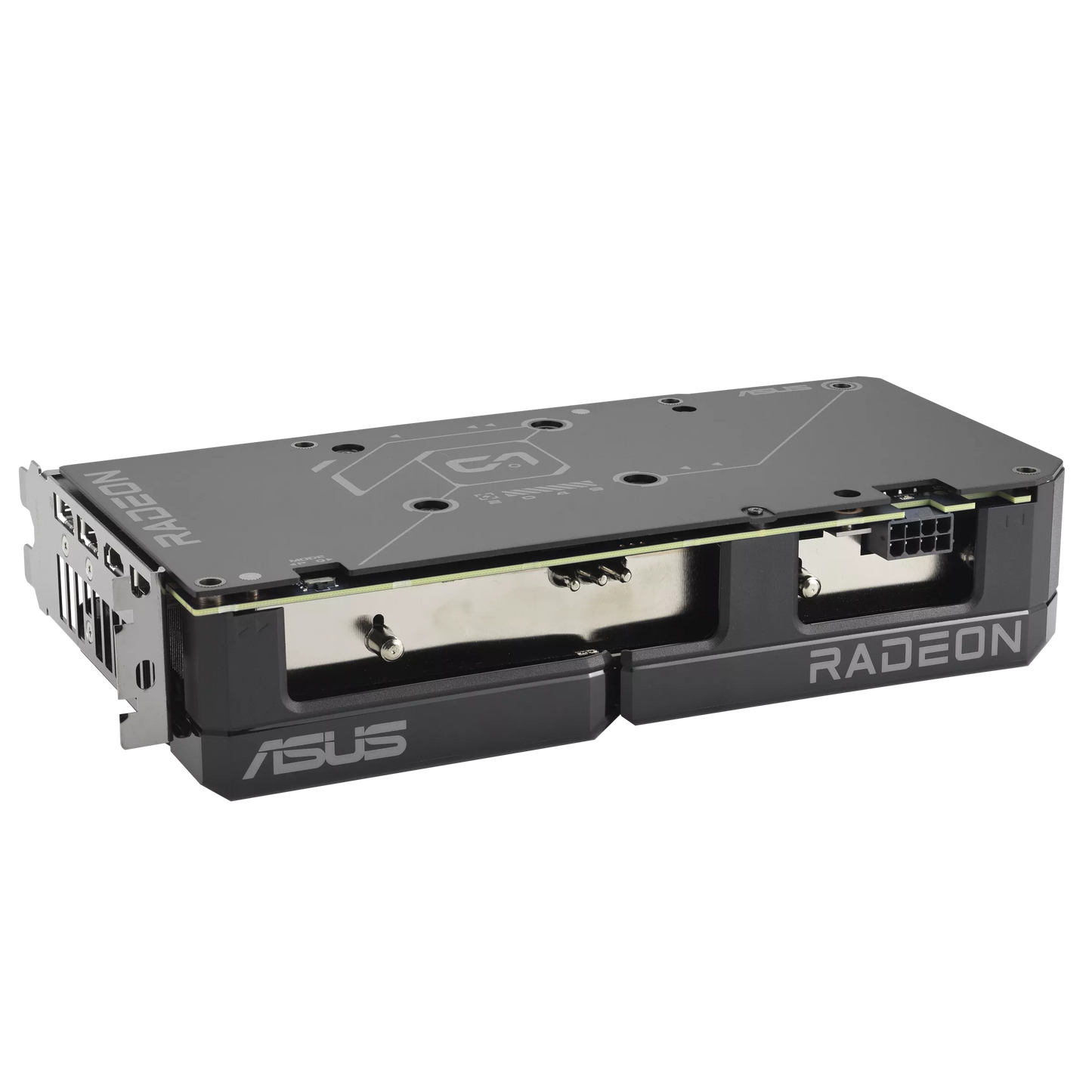

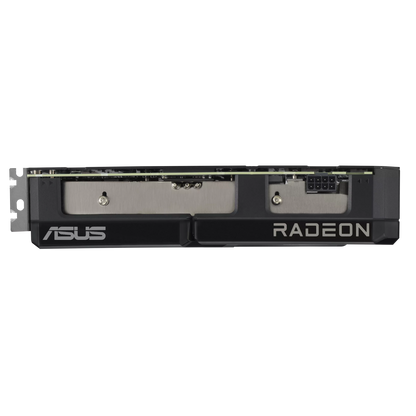

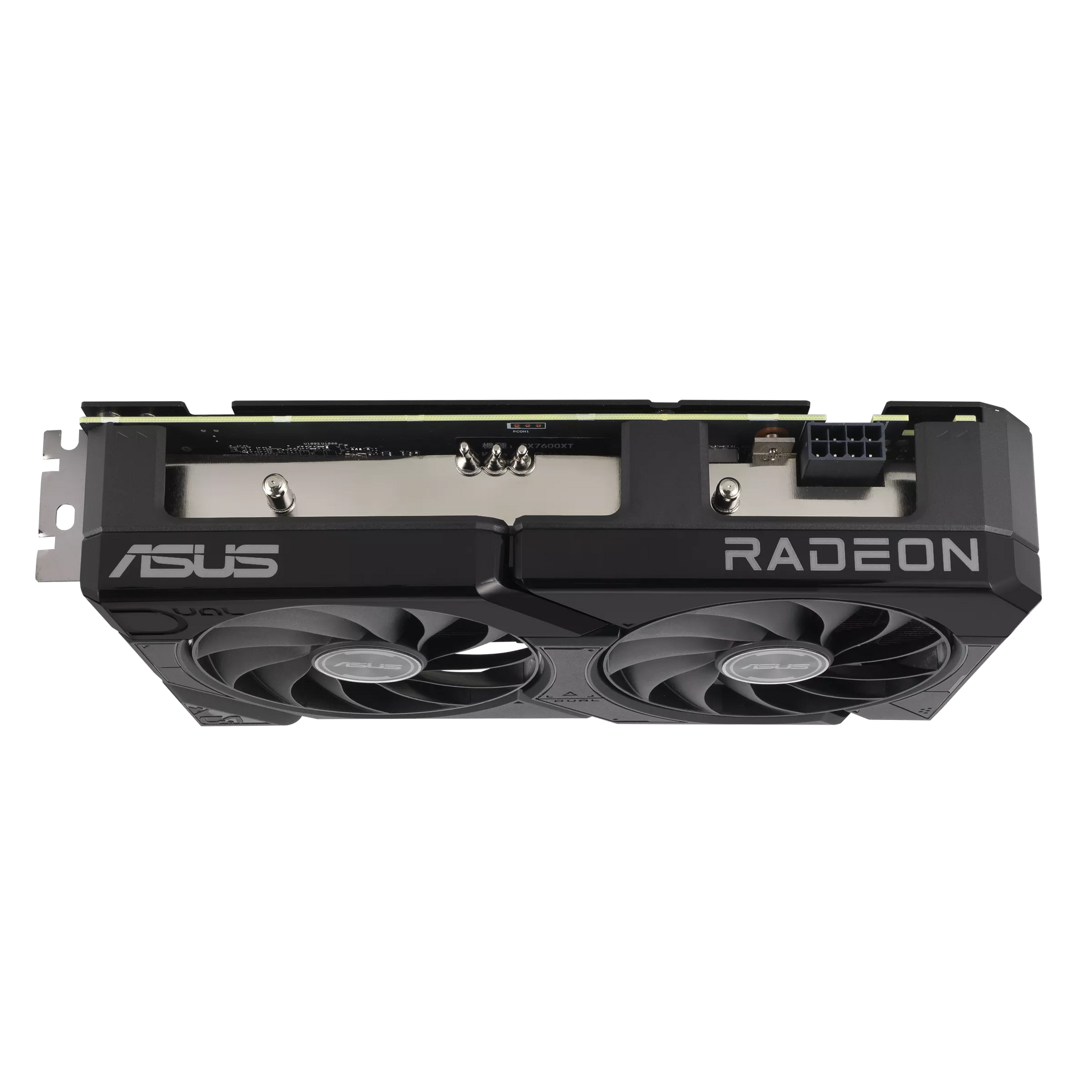

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality.
