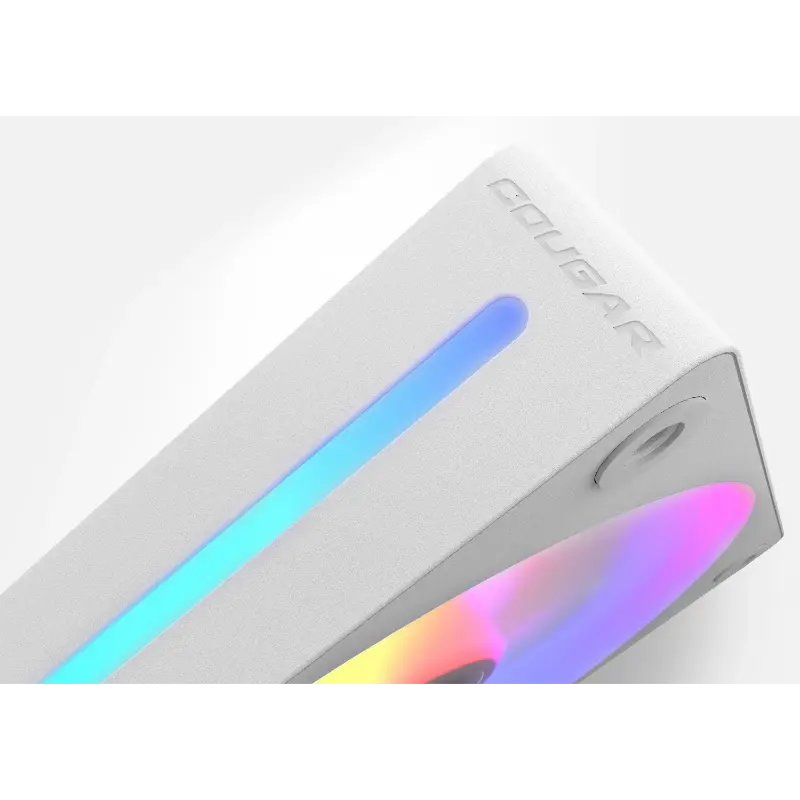

COUGAR UNITY 240 RW ARGB Reverse White Blade Single Frame Fan Unit

The white version of COUGAR's reverse blade UNITY 240. Two 120mm fans in one rigid white frame, white blades included, driven from a single PWM lead and a single ARGB lead.

Key specifications

• Type: single frame fan unit, 2x 120mm reverse blade
• Model: CF-UN240RW-RGB, part number 3MUN24RA1.0002
• Speed: 700 to 1600 RPM plus or minus 10 percent, PWM
• Airflow: 49.01 CFM
• Static pressure: 2.31 mmH2O
• Noise: 33.5 dB(A)
• Bearing: fluid dynamic
• Connectors: 1x 4 pin PWM, 1x 3 pin 5V ARGB
• Dimensions: 243.6 x 125 x 25mm
• Weight: 0.28kg
• Colour: White frame and white blades
• Warranty: 3 years

Why white builders pick reverse blade

In a white build the motor hub and the strut pattern on a conventional fan are the parts that read as visually messy. Reverse blade fans put the smooth face outward when used as intake, which is why they are more common in white themed builds than in black ones. The cost is airflow, 49.01 CFM against 78.2 CFM for the forward blade version.

Important: this is not a liquid cooler

The 240 is a frame width, not a radiator size. No pump, no radiator, no waterblock, no socket brackets.

In the box: 1x UNITY 240-RW ARGB fan unit, mounting screws
