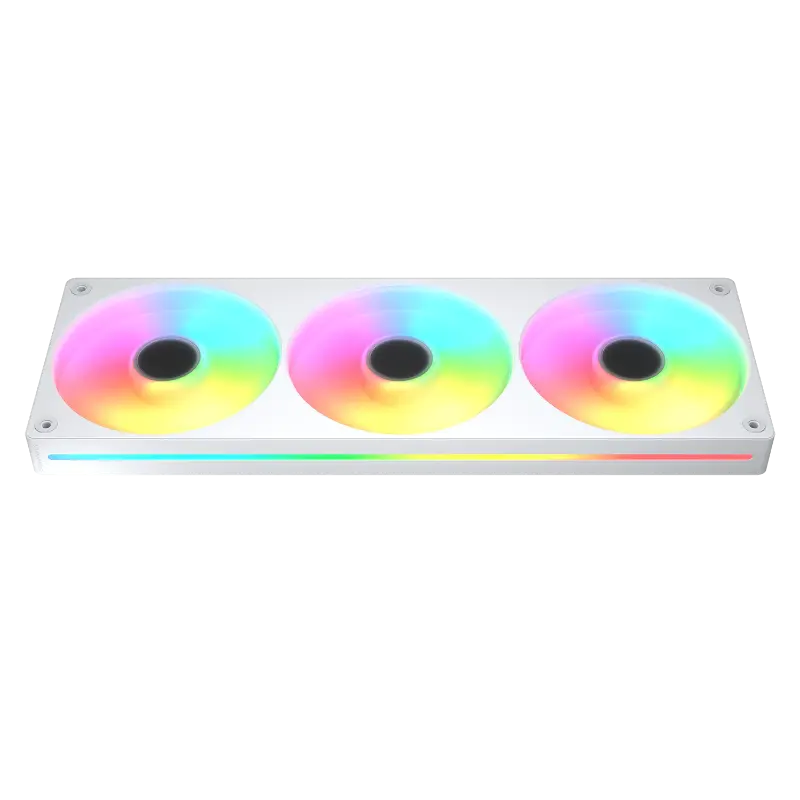

COUGAR UNITY 360-RW ARGB Reverse Blade Single Frame Fan Unit White

The COUGAR UNITY 360-RW puts three 120mm reverse blade fans into one white rigid frame. Reverse blade means the fan presents its clean face rather than its motor hub when mounted as an intake, so a build seen through glass shows the finished side of the fan instead of the wiring.

Key specifications

• Type: single frame fan unit, 3x 120mm reverse blade
• Model: CF-UN360RW-RGB, part number 3MUN36RA1.0002
• Speed: 700 to 1600 RPM plus or minus 10 percent, PWM
• Airflow: 49.01 CFM
• Static pressure: 2.31 mmH2O
• Noise: 33.5 dB(A)
• Bearing: fluid dynamic
• Connectors: 1x 4 pin PWM, 1x 3 pin 5V ARGB
• Power: fan 0.85A at 10.2W, LED 1.6A at 8W
• Dimensions: 363.3 x 125 x 25mm
• Weight: 0.39kg
• Colour: White
• Warranty: 3 years

Understand the trade off

Reverse blade fans move less air than forward blade ones. This unit peaks at 1600 RPM and 49.01 CFM, against 2500 RPM and 78.2 CFM for the forward blade version. Static pressure is 2.31 mmH2O, which is low for pushing through a dense radiator. Buy reverse blade for the appearance in a glass fronted build, not for maximum cooling.

Important: this is not a liquid cooler

The 360 refers to the frame width, matching a 360mm radiator footprint. No pump, no radiator, no waterblock, no socket brackets. If you want a 360mm AIO, look at COUGAR's POSEIDON range.

Before you buy: Check your case clears the full 363.3mm length. Some cases listed as 360mm capable are tight at the ends of the mounting rail.

In the box: 1x UNITY 360-RW ARGB fan unit, mounting screws
