Crucial Micron 5400 PRO 960 GB Internal SSD is the world’s first 176layer data center SATA SSD, 5400 SSD offers the industry’s broadest portfolio.

Features

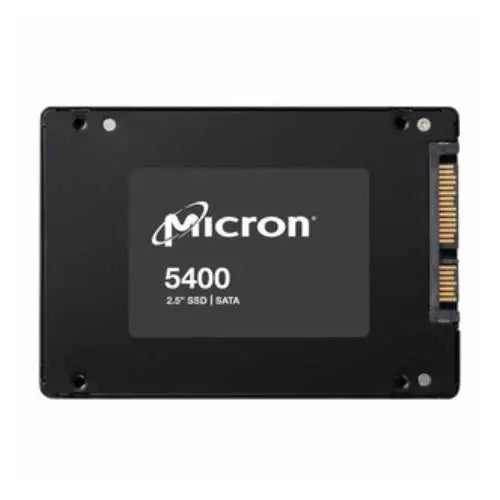

Micron 5400 PRO 960 GB Internal SSD
The Micron 5400 SSD is the world’s first 176-layer data center SATA SSD. The 5400 SSD offers the industry’s broadest portfolio of data center SATA drives, more than enough performance to saturate typical network bandwidth (≤50 GbE), and best-in-class write performance (sequential and random) among mixed-use data center SATA SSDs.

Qualify quickly and easily
Micron has been designing, manufacturing and supporting data center SATA SSDs since 2009, making the Micron 5400 our 11th-generation, data center SATA SSD., 11 This extensive expertise helps make qualification smooth, fast and easy., The Micron 5400, built on a proven, stable architecture that has been trusted by major server manufacturers for generations, is now built with, Micron’s 176-layer NAND. Millions of SSDs based on the same architecture have shipped since 2017. This experience, combined with, Micron’s NAND and SSD manufacturing expertise, has put Micron among the leading data center SATA SSD suppliers for the last five years.

Realize extended usable life and fewer field failures
Extend the life of your servers and deploy with the confidence that comes from SSDs with reliability (MTTF) and endurance ratings that are
50% higher than the other leading data center SATA SSD – all backed by Micron’s standard 5-year data center SSD warranty. The mixed-use Micron 5400 MAX SSDs offer up to 5 drive writes per day (DWPD) while similar use SATA data center SSDs typically only offer 3 DWPD. The Micron 5400 read-intensive PRO SSDs offer up to 1.5 DWPD compared to similar use SATA data center SSDs, which only offer up to 1 DWPD.

Technical Detail
Brand : Micron
Modal : MTFDDAK960TGA-1BC1ZABYYR

Technical Spec
Form Factor : M.2 (22x80mm)
Capacity : 960 GB

Performance
Hard Drive Type : Internal hard drive
HD Interface : Serial ATA-600
Max Internal Data Transfer Rate : 540 MBps
Max Write Transfer Rate : 520 MBps
NAND Flash Memory Type : 3D triple-level cell (TLC)
Storage Interface : Serial ATA-600
4KB Random Read ; 95000 IOPS
4KB Random Write ; 33000 IOPS

Connectivity
Interface Provided : 1 x SATA 6 Gb/s - 7 pin Serial ATA

Power
Power Consumption
3 Watt (sequential read), 3.9 Watt (sequential write)

Technical Information
Compatible Bay : 2.5"
Hard Drive Form Factor : 2.5"
Hard Drive Form Factor (metric) : 6.4 cm
Encryption : 256-bit AES
Max Operating Temperature :158 degree Fahrenheit
Min Operating Temperature : 32 degree Fahrenheit
MTBF : 3,000,000 Hours
