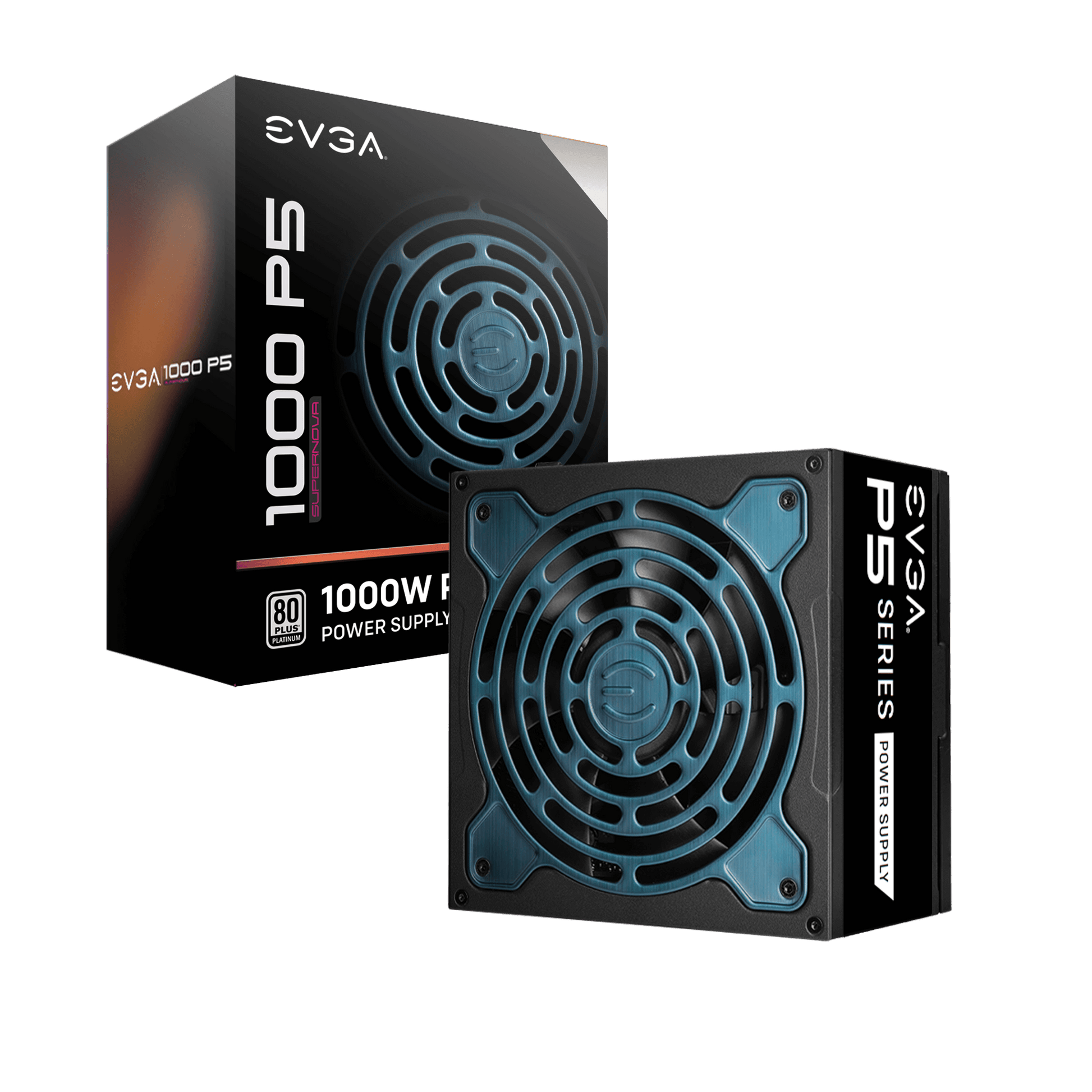

EVGA SuperNOVA 1000 P5 1000W 80 Plus Platinum Fully Modular Power Supply

A 1000W Platinum rated PSU on a single 12V rail, fully modular, with a 10 year warranty. The reason people buy this one is efficiency per rupee: at 220 to 240V it runs at 94 percent, so less of what you pay for turns into heat inside the cabinet.

ECO Mode

The 135mm fluid dynamic bearing fan stays off at low and medium load. For desktop use and idle, the unit is effectively silent.

Build

Active Clamp and DC to DC topology with 100 percent Japanese capacitors, and 100 percent aluminium solid state capacitors on the modular board. Compact 150mm depth, so it fits most mid towers without fighting the cable basement.

Connectors

• 1 x 24 pin ATX
• 2 x 8 pin (4+4) EPS CPU
• 8 x 8 pin (6+2) PCIe
• 12 x SATA
• 4 x 4 pin Molex
• 1 x floppy

Specifications

• Model: 220-P5-1000-X1
• Output: 1000W continuous, single +12V rail
• Efficiency: 80 PLUS Platinum, 92 percent at 115VAC, 94 percent at 220 to 240VAC
• Modularity: Fully modular
• Fan: 135mm FDB with ECO Mode
• Dimensions: 150 x 150 x 86mm
• Protections: OVP, UVP, OCP, OPP, SCP, OTP
• MTBF: 100,000 hours. Operating range 0 to 50 degrees C
• Warranty: 10 years

Please read before buying for an RTX 40 or 50 series card

This unit does not have a native 12VHPWR or 12V-2x6 connector and is not ATX 3.x compliant. It is an ATX 2.x era platform. Modern high draw GPUs will need the adapter that ships with the card, using multiple 6+2 PCIe cables. If you specifically need a native 12V-2x6 cable, this is not the right unit.

In the box: Power supply, modular cable set, Power ON Self Tester, mounting screws, documentation.
