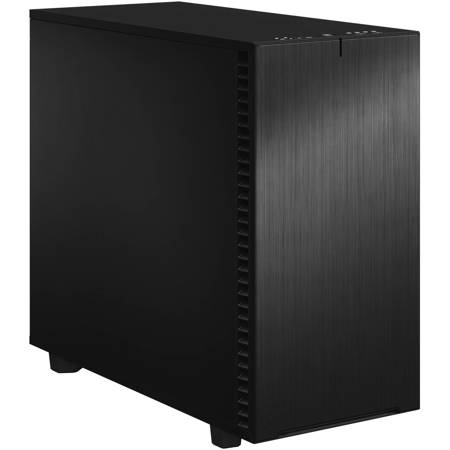

Fractal Design Define 7 Black Solid E-ATX Mid Tower Cabinet

A sound damped mid tower that converts between two interior layouts. Open Layout gives you 491mm of graphics card clearance. Storage Layout reconfigures the same chassis to hold up to fourteen drives. Very few cases do both properly.

Two layouts, one case

Open Layout for a gaming or workstation build with a long card. Storage Layout when you need drive capacity, at the cost of GPU length dropping to 315mm for cards over 150mm wide.

Sound damping

Sound damped steel side, top and front panels with an anodised aluminium front cover that hinges from either side. The ModuVent top panel is interchangeable: a solid damped panel for quiet, or a ventilated one for airflow. Both are in the box.

Clearances

• Graphics card: 491mm Open Layout, 467mm with a front fan, 315mm Storage Layout
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm with the drive cage fitted

Specifications

• Model: Define 7 Black Solid. Part number FD-C-DEF7A-01
• Type: E-ATX mid tower, 57.7 litres
• Motherboard support: E-ATX up to 285mm, ATX, Micro ATX, Mini ITX
• Dimensions: 547 x 240 x 475mm with feet. Weight 13.49kg
• Material: Steel chassis, sound damped steel panels, anodised aluminium reversible front cover, solid steel left panel
• Included fans: 3 x 140mm Dynamic X2 GP-14, 1000rpm, 18.9dBA. 2 front and 1 rear
• Radiator support: Front up to 360mm. Top up to 420mm. Bottom up to 280mm. Rear 120mm
• Fan mounts: 9 positions, all 120 or 140mm. Front 3, top 3, rear 1, bottom 2
• Drive bays: 1 x 5.25 inch, 6 universal 3.5 or 2.5 inch trays expandable to 14, plus 2 dedicated 2.5 inch expandable to 4
• Expansion slots: 7 horizontal plus 2 vertical
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, headphone and microphone jacks, power and reset
• Dust filters: 2 front, top, bottom and PSU
• Cable routing depth: 30mm. Warranty 2 years

In the box: Cabinet with 3 pre installed fans, both ModuVent top panels, drive trays, accessory box, manual.
