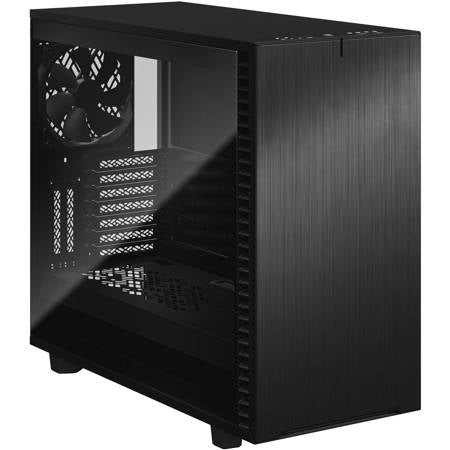

Fractal Design Define 7 Black TG Dark Tint E-ATX Mid Tower Cabinet

The tempered glass Define 7, with a dark tint panel. Same convertible interior: Open Layout for 491mm of graphics card room, Storage Layout for up to fourteen drives.

Two layouts, one case

Open Layout suits a long graphics card. Storage Layout trades that down to 315mm for cards over 150mm wide, in exchange for drive capacity.

Sound damping

Sound damped steel top and right panels, dark tinted tempered glass on the left, and an anodised aluminium front cover that hinges from either side. Both ModuVent top panels are supplied, solid damped and ventilated.

Clearances

• Graphics card: 491mm Open Layout, 467mm with a front fan, 315mm Storage Layout
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm with the drive cage fitted

Specifications

• Model: Define 7 Black TG Dark Tint. Part number FD-C-DEF7A-03
• Type: E-ATX mid tower, 57.7 litres
• Motherboard support: E-ATX up to 285mm, ATX, Micro ATX, Mini ITX
• Dimensions: 547 x 240 x 475mm with feet. Weight 13.49kg
• Material: Steel chassis, sound damped steel panels, anodised aluminium reversible front cover, dark tint tempered glass left panel
• Included fans: 3 x 140mm Dynamic X2 GP-14, 1000rpm, 18.9dBA. 2 front and 1 rear
• Radiator support: Front up to 360mm. Top up to 420mm. Bottom up to 280mm. Rear 120mm
• Fan mounts: 9 positions, all 120 or 140mm
• Drive bays: 1 x 5.25 inch, 6 universal trays expandable to 14, plus 2 dedicated 2.5 inch expandable to 4
• Expansion slots: 7 horizontal plus 2 vertical
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, headphone and microphone jacks, power and reset
• Dust filters: 2 front, top, bottom and PSU. Warranty 2 years

Note on part numbers: Dark Tint is FD-C-DEF7A-03. FD-C-DEF7A-02 is the Light Tint version. Several retailers mislabel this pair.

In the box: Cabinet with 3 pre installed fans, both ModuVent top panels, drive trays, accessory box, manual.
