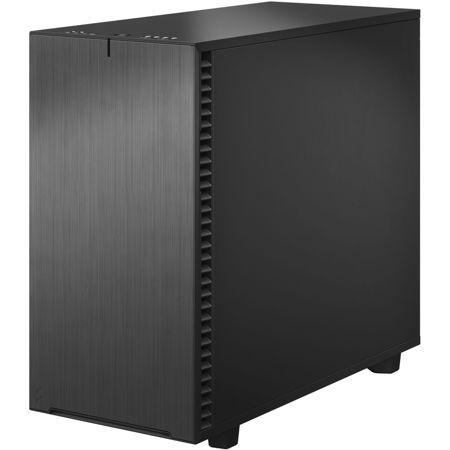

Fractal Design Define 7 XL Black Solid EE-ATX Full Tower Cabinet

A 604mm tall sound damped full tower taking EE-ATX and SSI-EEB server boards, 549mm graphics cards and up to eighteen drives. Nine horizontal expansion slots plus three vertical. This is a workstation and storage chassis first, a gaming case second.

Two layouts, one case

Open Layout gives 549mm of card clearance. Storage Layout drops that to 359mm and turns the interior into an eighteen bay drive array with five additional SSD positions.

Sound damping

Sound damped steel panels throughout, anodised aluminium reversible front cover, and interchangeable ModuVent top panels, solid or ventilated, both supplied.

Clearances

• Graphics card: 549mm Open Layout, 524mm with a front fan, 359mm Storage Layout
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm with both drive cages fitted

Specifications

• Model: Define 7 XL Black Solid. Part number FD-C-DEF7X-01
• Type: EE-ATX full tower
• Motherboard support: EE-ATX up to 285mm, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB
• Dimensions: 604 x 240 x 566mm with feet. Weight 16.53kg
• Material: Steel chassis, sound damped steel panels, anodised aluminium reversible front, solid steel left panel
• Included fans: 3 x 140mm Dynamic X2 GP-14. 2 front and 1 rear
• Radiator support: Front up to 480mm. Top up to 480mm. Bottom up to 280mm. Rear 120mm
• Fan mounts: 11 x 120mm or 9 x 140mm. Front 4 x 120 or 3 x 140. Top 4 x 120 or 3 x 140. Rear 1. Bottom 2
• Drive bays: 2 x 5.25 inch, 6 trays installed with 18 positions, 2 dedicated 2.5 inch with 5 positions
• Expansion slots: 9 horizontal plus 3 vertical
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, headphone and microphone jacks, power and reset
• Dust filters: Top, 2 front, bottom and PSU. Warranty 2 years

In the box: Cabinet with 3 pre installed fans, both ModuVent top panels, drive trays, accessory box, manual.
