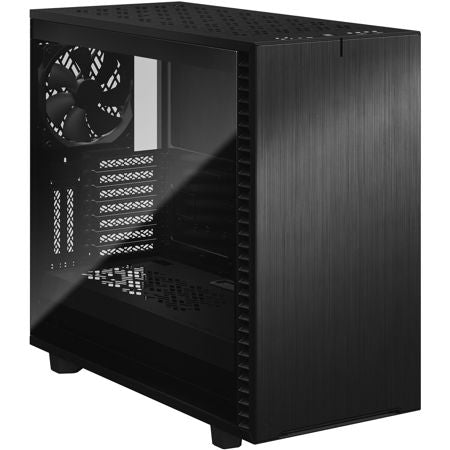

Fractal Design Define 7 XL Black TG Dark Tint EE-ATX Full Tower Cabinet

The tempered glass Define 7 XL with a dark tint panel. A sound damped full tower for EE-ATX and SSI-EEB boards, 549mm graphics cards and up to eighteen drives, with nine horizontal expansion slots plus three vertical.

Two layouts, one case

Open Layout gives 549mm of graphics card clearance. Storage Layout reconfigures the interior into an eighteen bay drive array, dropping card clearance to 359mm. Both ModuVent top panels are supplied, solid damped and ventilated.

Specifications

• Model: Define 7 XL Black TG Dark Tint. Part number FD-C-DEF7X-03
• Type: EE-ATX full tower
• Motherboard support: EE-ATX up to 285mm, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB
• Dimensions: 604 x 240 x 566mm with feet. Weight 16.53kg
• Material: Steel chassis, sound damped steel panels, anodised aluminium reversible front, dark tint tempered glass left panel
• Graphics card: 549mm Open Layout, 524mm with a front fan, 359mm Storage Layout
• CPU cooler: up to 185mm. Power supply: ATX up to 250mm with both cages fitted
• Included fans: 3 x 140mm Dynamic X2 GP-14. 2 front and 1 rear
• Radiator support: Front up to 480mm. Top up to 480mm. Bottom up to 280mm. Rear 120mm
• Fan mounts: 11 x 120mm or 9 x 140mm
• Drive bays: 2 x 5.25 inch, 18 drive positions, 5 additional 2.5 inch positions
• Expansion slots: 9 horizontal plus 3 vertical
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, headphone and microphone jacks, power and reset
• Dust filters: Top, 2 front, bottom and PSU. Warranty 2 years

Note on part numbers: Dark Tint is FD-C-DEF7X-03. The -02 suffix is Light Tint.

In the box: Cabinet with 3 pre installed fans, both ModuVent top panels, drive trays, accessory box, manual.
