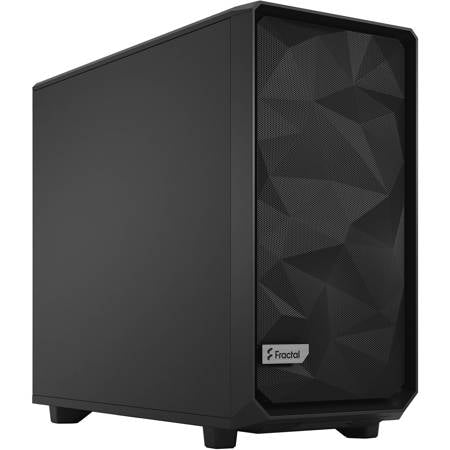

Fractal Design Meshify 2 Black Solid E-ATX Mid Tower Cabinet

A 58.95 litre mid tower with 470mm of graphics card clearance and nine fan positions. The storage layout is the standout: as shipped it holds eight drives, and reconfigured into storage mode it takes up to eleven hard drives plus four dedicated SSDs. Very few cases at any price do that.

Cooling capacity

Three 140mm Dynamic X2 GP-14 fans come fitted, two front and one rear. Radiator support goes to 360mm at the front, 420mm on top and 280mm in the base. Nine fan positions in total.

Clearances

• Graphics card: up to 470mm
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm

Specifications

• Model: Meshify 2 Black. Part number FD-C-MES2A-01
• Type: E-ATX mid tower, 58.95 litres
• Motherboard support: E-ATX, ATX, Micro ATX, Mini ITX
• Dimensions: 542 x 240 x 474mm. Weight 10.1kg net
• Material: Steel chassis, mesh front, solid steel side panels
• Included fans: 3 x 140mm Dynamic X2 GP-14, non lit. 2 front and 1 rear
• Radiator support: Front 120 to 360mm. Top 120 to 420mm. Bottom 120 to 280mm. Rear 120mm
• Fan mounts: Front 3 x 120/140mm. Top 3 x 120/140mm. Bottom 2 x 120/140mm. Rear 1 x 120/140mm
• Drive bays: 2 dedicated 2.5 inch and 6 combined 3.5 or 2.5 inch as shipped. Storage layout mode supports up to 11 hard drives plus 4 SSDs with additional brackets
• Expansion slots: 7
• Front IO: 2 x USB Type-A 5Gbps, 1 x USB Type-C 20Gbps, audio jack, microphone jack, power and reset
• Dust filters: Front, top and bottom
• Warranty: 2 years

Stock note: The Meshify 2 generation is winding down and being replaced by the Meshify 3. Availability on this variant is limited. Worth knowing that the Meshify 3 is a smaller case, not a bigger one, so if you need 470mm of GPU room this is the generation that has it.

In the box: Cabinet with 3 pre installed fans, drive trays, accessory box, manual.
