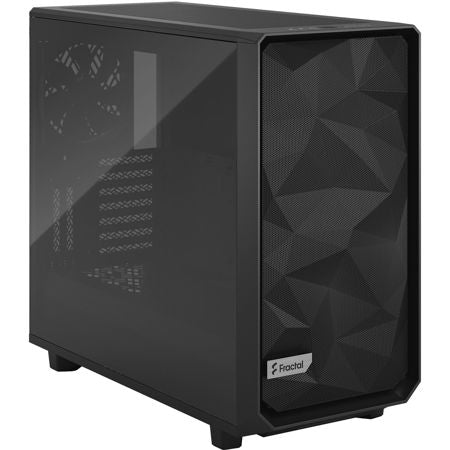

Fractal Design Meshify 2 Black TG Light Tint E-ATX Mid Tower Cabinet

The tempered glass Meshify 2. 58.95 litres, 470mm of graphics card clearance, nine fan positions, and a storage layout that reconfigures to hold up to eleven hard drives plus four dedicated SSDs. It is a rare combination of a proper airflow case and a genuine multi drive chassis.

Cooling capacity

Three 140mm Dynamic X2 GP-14 fans fitted, two front and one rear. Radiators up to 360mm front, 420mm top and 280mm base.

Clearances

• Graphics card: up to 470mm
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm

Specifications

• Model: Meshify 2 Black Light TG. Part number FD-C-MES2A-03
• Type: E-ATX mid tower, 58.95 litres
• Motherboard support: E-ATX, ATX, Micro ATX, Mini ITX
• Dimensions: 542 x 240 x 474mm
• Material: Steel chassis, mesh front, light tint tempered glass left panel, steel right panel
• Included fans: 3 x 140mm Dynamic X2 GP-14, non lit. 2 front and 1 rear
• Radiator support: Front 120 to 360mm. Top 120 to 420mm. Bottom 120 to 280mm. Rear 120mm
• Fan mounts: Front 3 x 120/140mm. Top 3 x 120/140mm. Bottom 2 x 120/140mm. Rear 1 x 120/140mm
• Drive bays: 2 dedicated 2.5 inch and 6 combined 3.5 or 2.5 inch as shipped. Storage layout mode supports up to 11 hard drives plus 4 SSDs with additional brackets
• Expansion slots: 7
• Front IO: 2 x USB Type-A 5Gbps, 1 x USB Type-C 20Gbps, audio jack, microphone jack, power and reset
• Dust filters: Front, top and bottom
• Warranty: 2 years

Note on tint: This is the Light TG variant, part number FD-C-MES2A-03. A dark tint version exists under a different part number, so confirm the code on your invoice.

Stock note: The Meshify 2 generation is being replaced by the Meshify 3, which is a smaller case with 349mm GPU clearance. If you need the 470mm, this is the generation to buy.

In the box: Cabinet with 3 pre installed fans, drive trays, accessory box, manual.
