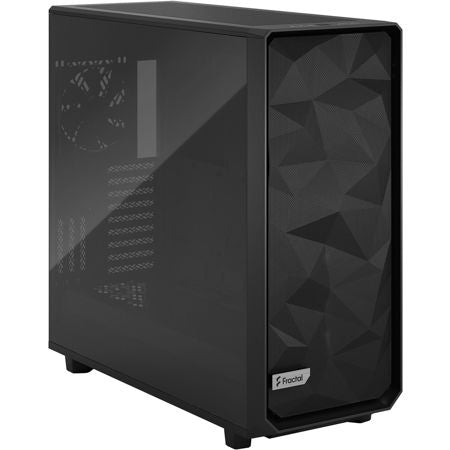

Fractal Design Meshify 2 XL Black TG Light Tint Full Tower Cabinet

A 77.2 litre full tower that takes EE-ATX and SSI-EEB server boards, 530mm graphics cards and nine expansion slots. Radiator support runs to 420mm at both the front and the top simultaneously. This is a workstation and dual loop chassis, not a mid tower with extra height.

Cooling capacity

Three 140mm Dynamic X2 GP-14 fans fitted, two front and one rear. Front takes four 120mm or three 140mm, top the same, plus two in the base.

Clearances

• Graphics card: up to 530mm
• CPU cooler: up to 185mm
• Power supply: ATX up to 250mm

Specifications

• Model: Meshify 2 XL Black Light TG. Part number FD-C-MES2X-02
• Type: Full tower, 77.2 litres
• Motherboard support: E-ATX, EE-ATX, SSI-CEB, SSI-EEB, ATX, Micro ATX, Mini ITX
• Dimensions: 600 x 240 x 566mm. Weight 14.1kg net
• Material: Steel chassis, mesh front, light tint tempered glass left panel, steel right panel
• Included fans: 3 x 140mm Dynamic X2 GP-14, non lit. 2 front and 1 rear
• Radiator support: Front 120 to 420mm. Top 120 to 420mm. Bottom 120 to 280mm. Rear 120mm
• Fan mounts: Front 4 x 120mm or 3 x 140mm. Top 4 x 120mm or 3 x 140mm. Bottom 2 x 120/140mm. Rear 1 x 120/140mm
• Drive bays: 2 dedicated 2.5 inch and 6 combined 3.5 or 2.5 inch, expandable storage layout
• Expansion slots: 9
• Front IO: 2 x USB Type-A 5Gbps, 1 x USB Type-C 20Gbps, audio jack, microphone jack, power and reset
• Dust filters: Front, top and bottom
• Warranty: 2 years

Stock note: This is now the only Meshify 2 XL variant Fractal still lists, and availability is limited. The Meshify 3 XL replaces it with fewer expansion slots, seven instead of nine.

In the box: Cabinet with 3 pre installed fans, drive trays, accessory box, manual.
