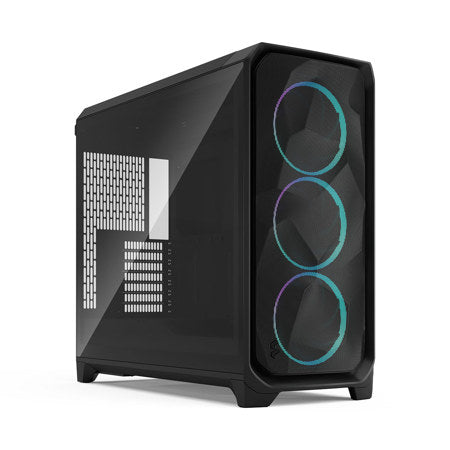

Fractal Design Meshify 3 XL Black RGB TG Light Tint E ATX Full Tower Cabinet

The RGB Meshify 3 XL in black. Three 140mm Momentum 14 RGB fans fitted at the front, ARGB Gen 2 with twenty LEDs per fan, daisy chained through Fractal Connect with an adapter fitted so they run off standard 4 pin PWM and 3 pin 5V ARGB headers. A 71.29 litre full tower with three radiator positions.

What this variant does not include

No Adjust Pro Hub and no chassis LED strips. Those come with the Ambience Pro RGB version, which uses the same fans.

Three radiator positions

Top to 420mm, front to 360mm, side to 360mm. The side mount takes three 140mm fans.

Clearances

• Graphics card: up to 512mm length, 189mm thickness
• CPU cooler: up to 182mm
• Power supply: ATX up to 230mm

Specifications

• Model: Meshify 3 XL Black RGB TG Light Tint. Part number FD-C-MES3X-04
• Type: E-ATX full tower, 71.29 litres
• Motherboard support: E-ATX up to 330mm, EE-ATX, SSI-EEB, SSI-CEB, ATX, Micro ATX, Mini ITX
• Dimensions: 575 x 245 x 515mm. Weight 10.9kg net
• Material: Steel chassis and mesh front, light tint tempered glass left panel, steel right panel
• Included fans: 3 x 140mm Momentum 14 RGB, ARGB Gen 2, 20 LEDs each, front intake
• Radiator support: Top 120 to 420mm. Front 120, 240, 280 or 360mm. Side 120, 240 or 360mm. Rear 120 or 140mm
• Fan mounts: Front 3 x 120/140mm or 2 x 180mm. Top 3 x 120/140mm. Side 3 x 140mm. Rear 1 x 120/140mm
• Drive bays: 1 dedicated 2.5 inch, 4 combined 3.5 or 2.5 inch
• Expansion slots: 7
• Front IO: 2 x USB Type-A 5Gbps, 1 x USB Type-C 20Gbps, audio and microphone combo jack, power button
• Dust filters: PSU filter only
• Warranty: 2 years

Note on part numbers: The suffix numbering differs between the Meshify 3 and the Meshify 3 XL. On the XL, -04 is Black RGB. Do not pattern match across the two families.

In the box: Cabinet with 3 pre installed Momentum 14 RGB fans, drive trays, accessory box, manual. No lighting hub.
