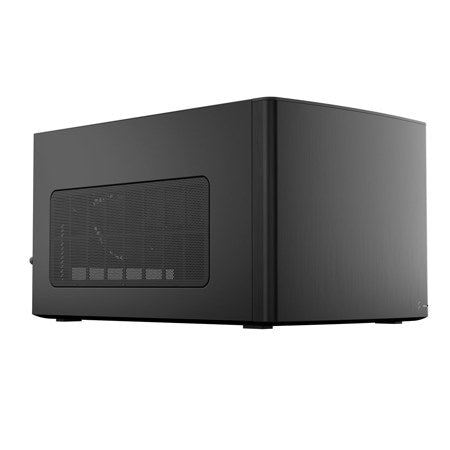

Fractal Design Node 304 Black Mini ITX Cube Cabinet

A 19.2 litre Mini ITX cube that holds six 3.5 inch drives. That combination is rare: most cases this small take two drives at most. It ships with three fans and a built in three speed fan controller, which makes it a long standing favourite for compact home servers and NAS builds.

Read this before you buy

Two expansion slots and no radiator mounting positions. This is an air cooled chassis. Graphics card thickness is capped at 45mm.

Specifications

• Model: Node 304 Black. Part number FD-CA-NODE-304-BL
• Type: Mini ITX and Mini DTX cube, 19.2 litres
• Dimensions: 250 x 210 x 374mm. Weight 4.9kg
• Material: Steel body with brushed aluminium front panel
• Graphics card: 310mm with the middle drive bracket removed, 45mm maximum thickness
• CPU cooler: up to 165mm
• Power supply: ATX up to 160mm, bottom mounted. Longer units need a drive bracket removed
• Included fans: 2 x 92mm Silent Series R2 front at 1300rpm, 1 x 140mm Silent Series R2 rear at 1000rpm. Three speed fan controller built in
• Radiator support: None
• Fan mounts: Front 2 x 92mm, rear 1 x 140mm
• Drive bays: 6 x 3.5 or 2.5 inch on removable brackets. No 5.25 inch bay
• Expansion slots: 2
• Front IO: 2 x USB 3.0 Type-A, headphone and microphone jacks, power button with LED, drive activity LED
• Dust filters: Front fans, PSU and graphics card intake. Warranty 2 years

In the box: Cabinet with 3 pre installed fans and fan controller, drive brackets, accessory box, manual.
