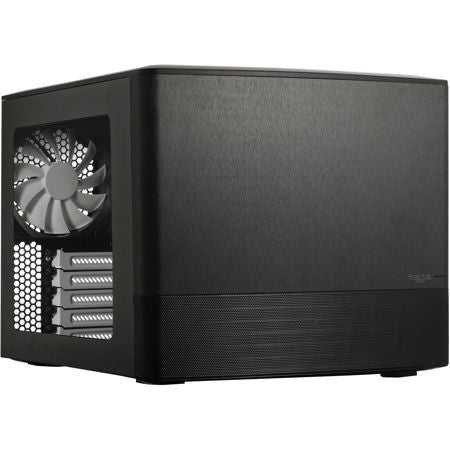

Fractal Design Node 804 Micro ATX Dual Chamber Cube Cabinet

A dual chamber Micro ATX cube built around storage. Ten to twelve drive positions across two chambers, ten fan mounts, and room for up to four radiators at once. It is the case people reach for when a NAS build outgrows a Node 304.

Two chambers

The motherboard sits in one chamber, the drives and power supply in the other. That separation is what lets it carry eight 3.5 inch drives without cooking the graphics card.

Specifications

• Model: Node 804. Part number FD-CA-NODE-804-BL-W
• Type: Micro ATX dual chamber cube, 40.3 litres
• Motherboard support: Micro ATX, Mini ITX
• Dimensions: 344 x 307 x 389mm. Weight 6.0kg
• Material: Steel chassis with brushed aluminium front, windowed left side panel
• Graphics card: 320mm, or 290mm with a front fan installed
• CPU cooler: up to 160mm
• Power supply: ATX up to 260mm, bottom mounted
• Included fans: 3 x 120mm Silent Series R2 at 1000rpm, 1 front and 2 rear. Fan controller built in
• Radiator support: Front up to 240mm. Top 240 to 280mm. Rear 120mm. Up to four radiators across both chambers
• Fan mounts: 10 total. Front 4 x 120mm. Top 4 x 120 or 140mm. Rear 2 x 120mm
• Drive bays: 8 x 3.5 inch, 2 x 2.5 inch, 2 x 3.5 or 2.5 inch combo, plus a slim optical bay
• Expansion slots: 5
• Front IO: 2 x USB 3.0 Type-A, audio in and out, power button with blue LED, white drive activity LED
• Dust filters: Bottom, front and top. Warranty 2 years

Note: The Node 804 is sold in one configuration only, and it always includes the side window. There is no separate non window version.

In the box: Cabinet with 3 pre installed fans and fan controller, drive brackets, accessory box, manual.
