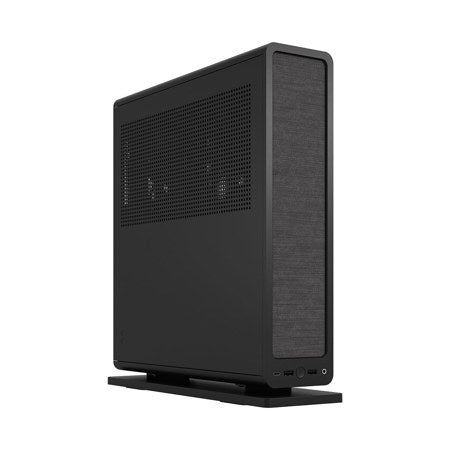

Fractal Design Ridge PCIe 4.0 Black Mini ITX Console Style Cabinet

A 12.6 litre Mini ITX case that stands vertically or lies flat like a console. It takes a full length 335mm graphics card in a chassis narrower than most books are tall, using a PCIe 4.0 riser card to mount the GPU alongside the motherboard rather than behind it.

Read this before you buy

CPU cooler clearance is 70mm. That means a low profile cooler, not a tower. The power supply must be SFX or SFX-L, not standard ATX. Plan both before ordering.

Specifications

• Model: Ridge PCIe 4.0 Black. Part number FD-C-RID1N-11
• Type: Mini ITX, 12.6 litres. Mini DTX possible with the 140mm bracket removed
• Orientation: vertical or horizontal console style
• Dimensions: 374 x 110 x 395mm vertical. Weight 4.3kg
• Material: Steel side panels, tool less slide off with thumbscrew lock
• Graphics card: 335mm length, or 325mm with an SSD fitted. 137mm height, 125mm with top fans. 82mm thickness, 57mm with two 140mm side fans. 3 slot
• CPU cooler: up to 70mm
• Power supply: SFX or SFX-L only
• Included fans: 2 x 140mm Aspect 14 PWM, side mounted
• Radiator support: Side 120mm with a graphics card under 175mm, or up to 280mm with no card fitted
• Fan mounts: 2 x 120 or 140mm side, 3 x 80mm
• Drive bays: 4 x 2.5 inch, mounts included
• Riser: PCIe 4.0 riser card pre installed
• Front IO: 1 x USB 3.2 Gen 2x2 Type-C at 20Gbps, 2 x USB 3.0 Type-A, combo audio jack, power button and LED
• Warranty: 2 years

Note on revisions: This is the PCIe 4.0 revision, part number FD-C-RID1N-11. The earlier FD-C-RID1N-01 and -02 shipped a PCIe 3.0 riser with known compatibility issues. The revised riser is marked Fractal on its left side. Fractal advises setting the BIOS to PCIe 4.0 mode when using PCIe 5.0 capable components.

In the box: Cabinet with 2 pre installed Aspect 14 PWM fans, PCIe 4.0 riser, drive mounts, accessory box, manual.
